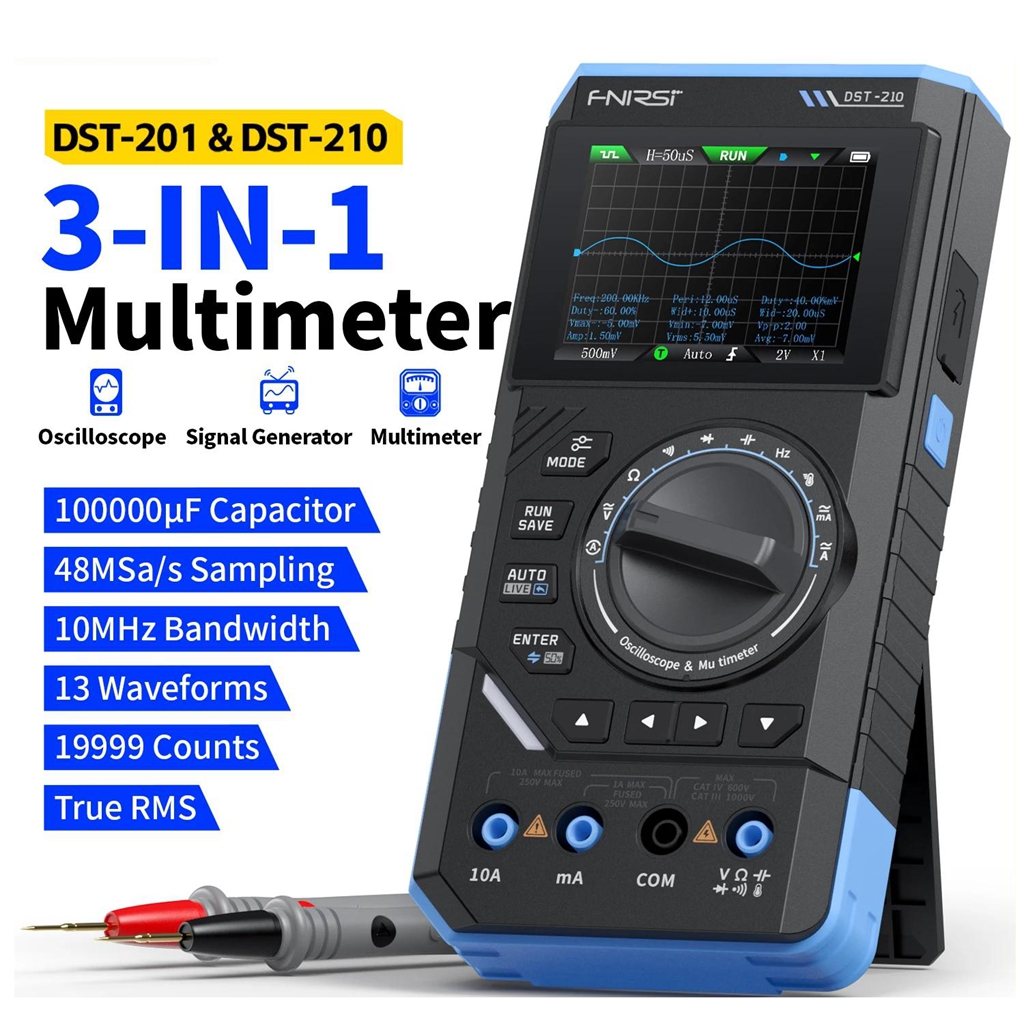

FNIRSI DST210 10MHz 48MSa/s 3-IN-1 Digital Multimeter High Precision Signal Generator 2.8-inch TFT Color Screen Oscilloscope

FNIRSI DST210 10MHz 48MSa/s 3-IN-1 Digital Multimeter High Precision Signal Generator 2.8-inch TFT Color Screen Oscilloscope

Description:
- The DST-201/DST-210 is a versatile multifunction tester, tailored for electronics repair and R&D. This all-in-one device integrates multiple essential testing functions, addressing a broad spectrum of measurement requirements.

Key Features:

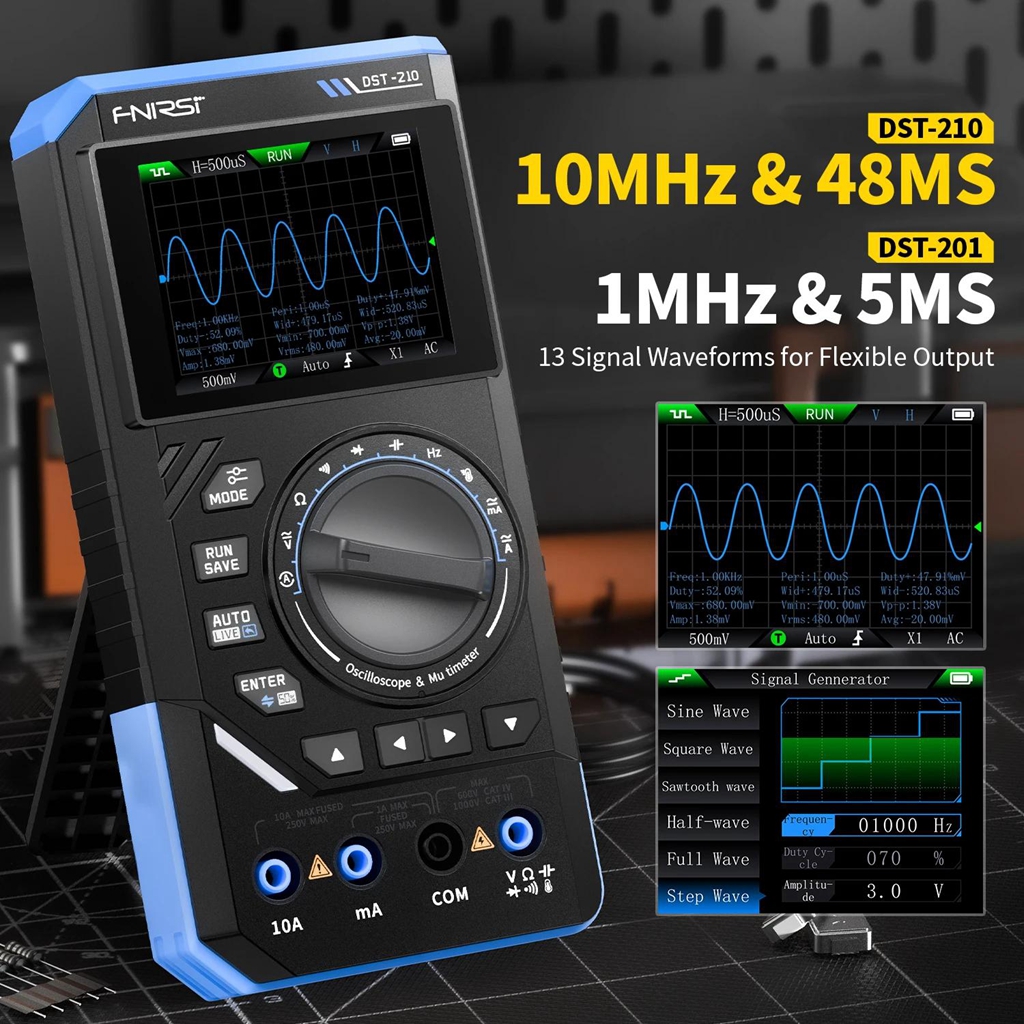

- High-precision oscilloscope function: DST-201 provides a sampling rate of 5MSa/s and an analog bandwidth of 1MHz, DST-210 provides a sampling rate of 48MSa/s and an analog bandwidth of 10MHz, ensuring waveform analysis. It is equipped with voltage protection up to ±400V, suitable for a wide range of applications.
- Multi-function signal generator function: Supports 13 waveforms with a frequency range of 0-10KHz and an adjustable output voltage of 3V. The frequency, amplitude and duty cycle can all be fine-tuned to meet various testing needs.

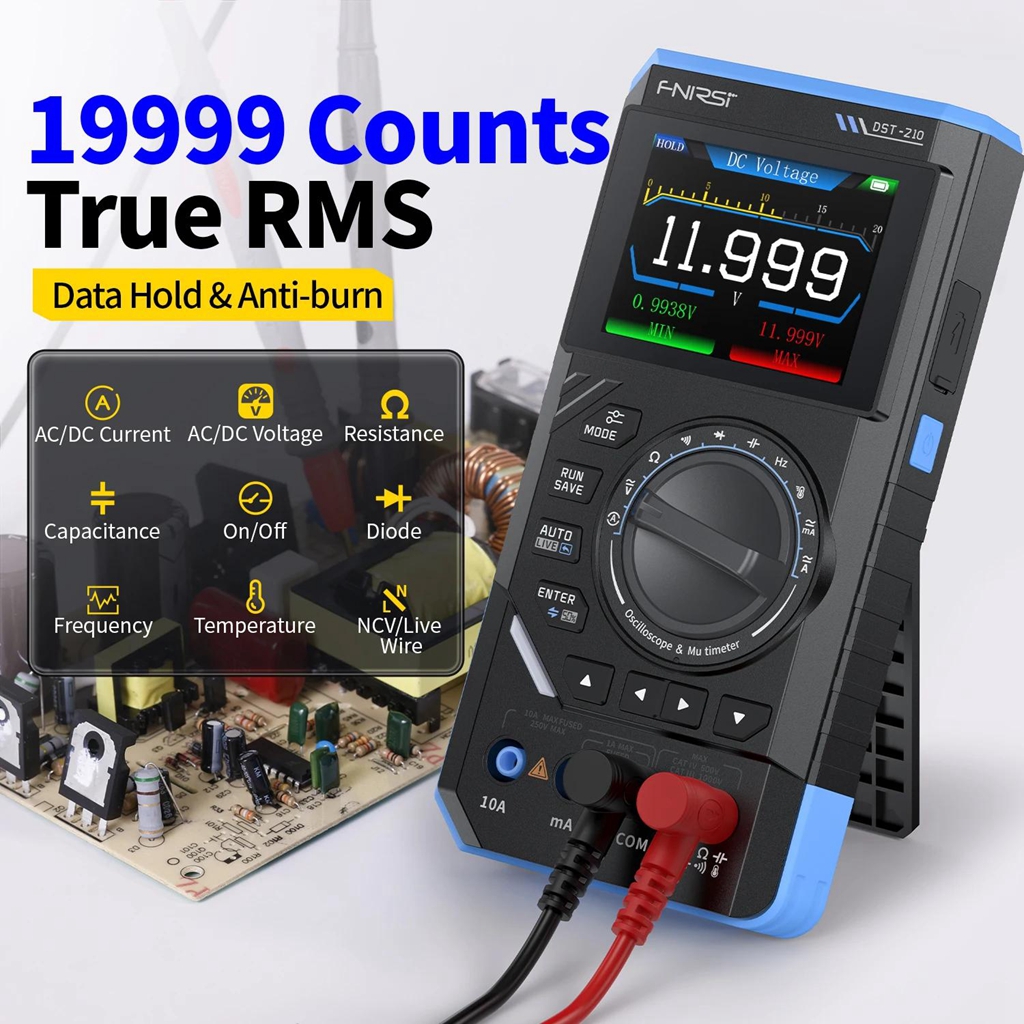

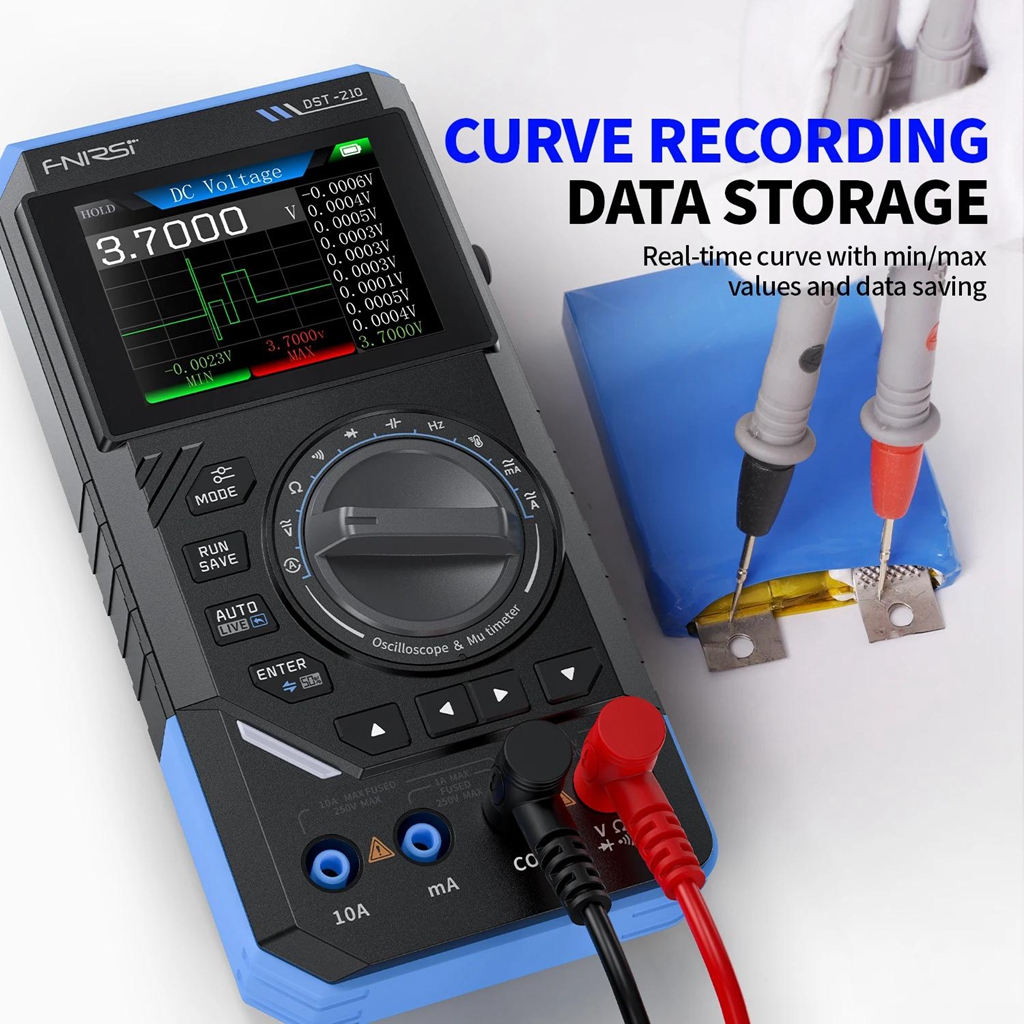

- Comprehensive multimeter function: DST-201/210 includes a variety of functions such as recording mode, automatic measurement, AC/DC voltage, AC/DC current, resistance, capacitance, diode/continuity, frequency, temperature, data hold and LIVE zero/live line, providing powerful functions for various measurements.
- Overload protection and portable design: The device is equipped with overload protection and low battery warning for added safety. Its compact and lightweight design, as well as a 2.8-inch TFT color display, ensures clear and intuitive visual effects. Built-in 3000mAh rechargeable battery supports up to 15 hours of standby time, perfect for mobile use.
- User-friendly and multifunctional: DST-201/210 is powerful and flexible, easy to operate, and is an ideal multifunctional instrument for professionals, factories, schools, hobbyists and home users.

Specification:
Basic Parameters:

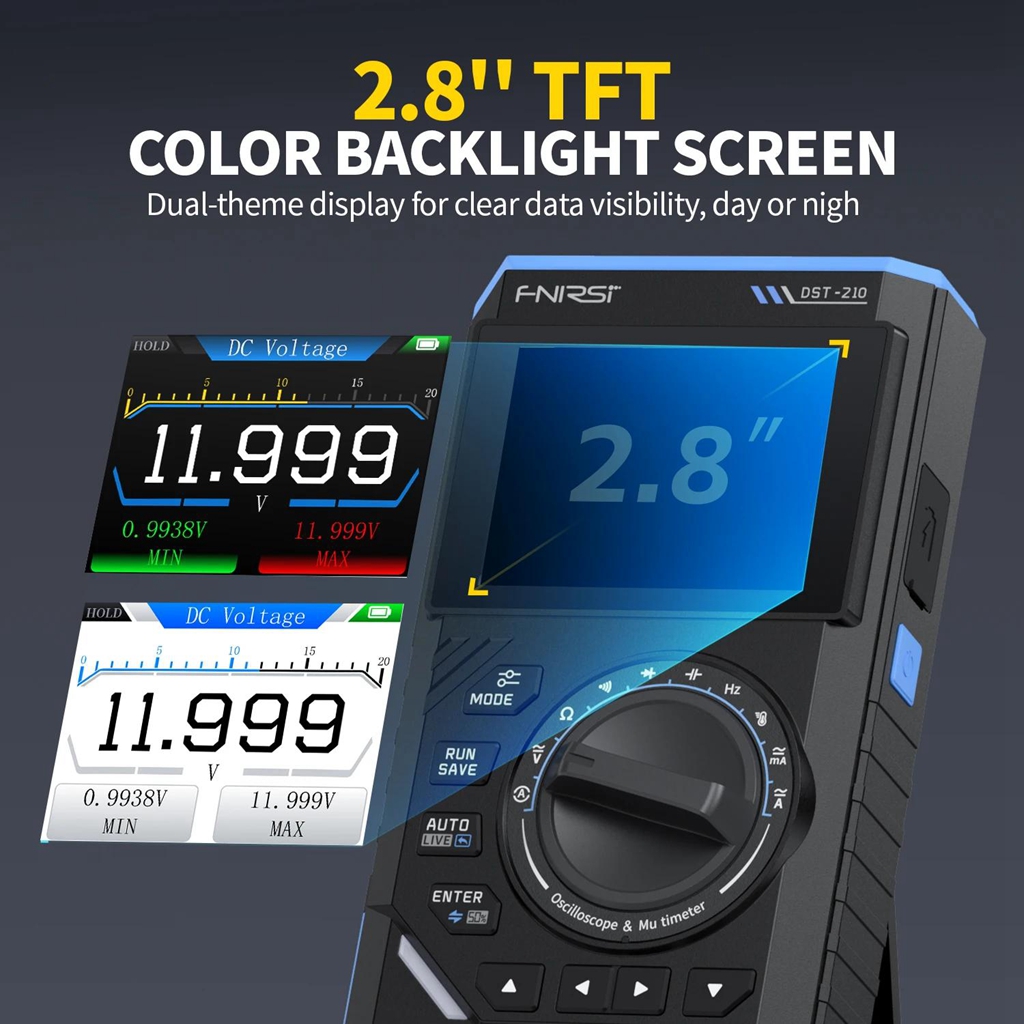

- Screen material: 2.8 inch TFT color screen
- Backlight: backlight brightness adjustable
- Charging power: TYPE-C (5V 1A)
- Battery: 3000mAh
- Languages: Chinese / English
- Product Size: about 177.43 x 87.47 x 34.5mm
- Net Weight: about 300g

Oscilloscope Parameter:
- Real-time sampling rate: 5MSa/s (DST-201); 48MSa/s (DST-210)
- Analog bandwidth: 1MHz (DST-201); 10MHz (DST-210)
- Input impedance: 1MΩ
- Coupling mode: AC/DC
- Test voltage range:
  1:1 Probe: 80Vpp (+40V)
  10:1 Probe: 800Vpp (+400V)
- Vertical sensitivity: 10mV/div - 10V/div
- Vertical displacement: adjustable with indicators
- Level time base: 500ns ~ 20s
- Trigger mode: Auto / Normal / Single
- Trigger type: Rising Edge & Falling Edge
- Trigger level: adjustable with indicators
- Waveform freeze: support (HOLD function)
- Auto measurement: maximum, minimum, average, RMS, VPP, frequency, period, duty cycle

Multimeter Parameter:
- DC voltage: 1.9999V/19.999V/199.99V/1000V —— ±(0.5%+3)
- AC voltage: 1.9999V/19.999V/199.99V/750.0V —— ±(1%+3)
- DC current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.2%+3)
- AC Current: 19.999mA/199.99mA/1.9999A/9.999A —— ±(1.5%+3)
- Resistance:
  19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ() —— ±(0.5%+3)
  1.9999KΩ/199.99Ω —— ±(2.0%+3)
- Capacitance:
  999.9uF/99.99uF/9.999uF/ 999.9nF/99.99nF/9.999nF —— ±(2.0%+5)
  9.999mF/99.99mF —— ±(5.0%+20)
- Frequency: 9.999MHz/999.9KHz/99.99KHz/9.999KHz/999.99Hz/99.99Hz/9.999Hz —— ±(0.1%+2)
- Temperature: -55 ~ 1300℃/ -67 ~ 2372℉ —— ±(2.5%+5)
- Diode/continuity: √
- Zero live wire: √

Signal Generator Parameter:
- Output waveform: support 13 types
- Waveform frequency: 0-10kHz
- Square duty cycle: 0-100%, square and sawtooth are adjustable
- Waveform amplitude: 0.1V-3.0V

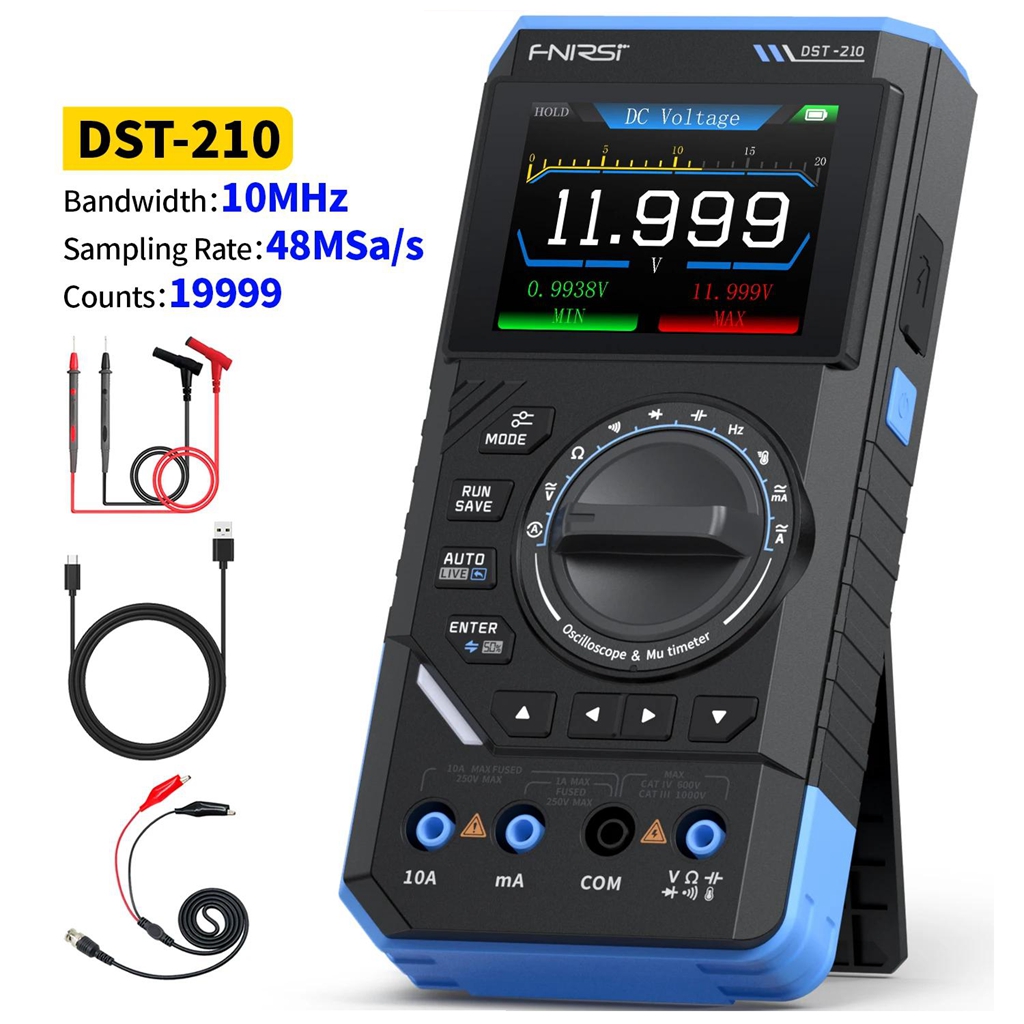

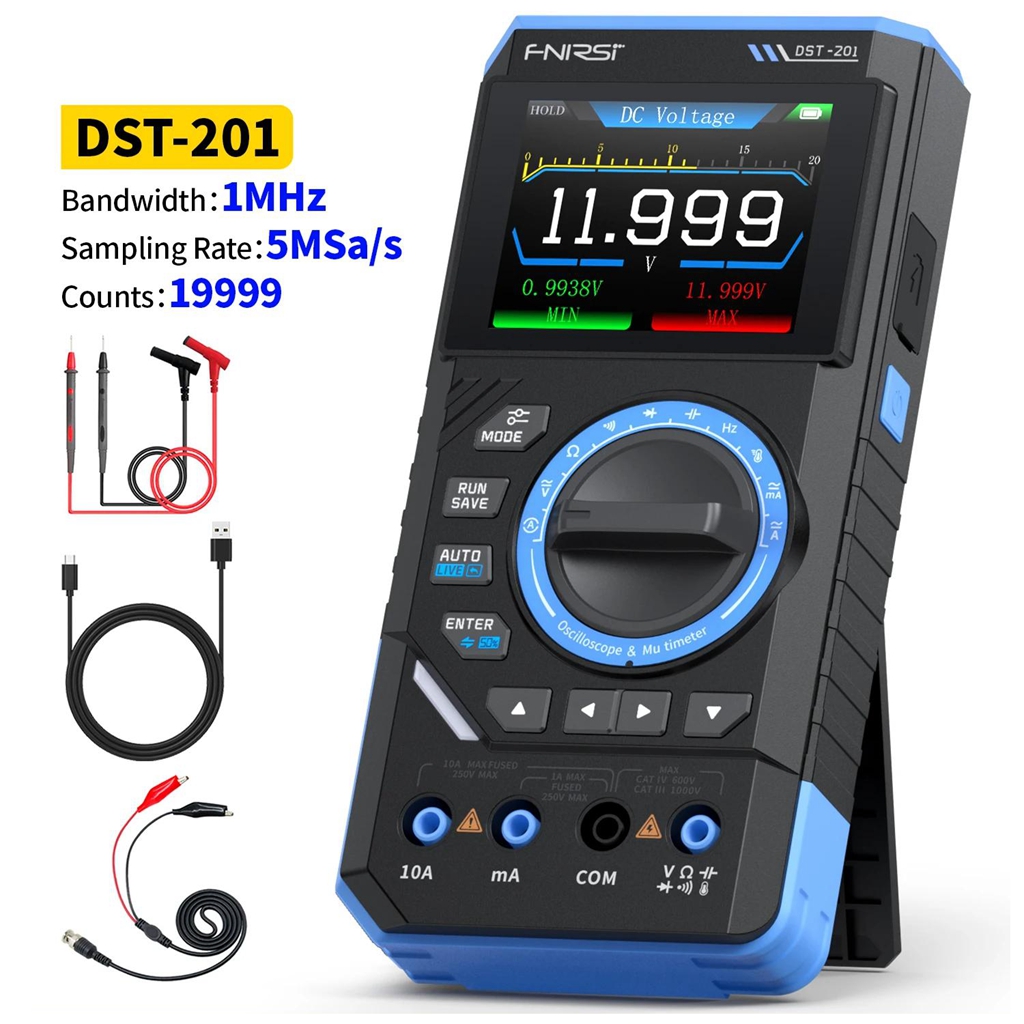

Package Included:
- 1 x Host
- 1 x Alligator Clip Probe
- 1 x Multimeter Probe
- 1 x Charging Cable
- 1 x User Manual
