For APRS Tracker Handheld Walkie Talkie Module Plug to Play Support For Track/DIGI/USB

For APRS Tracker Handheld Walkie Talkie Module Plug to Play Support For Track/DIGI/USB

Description:

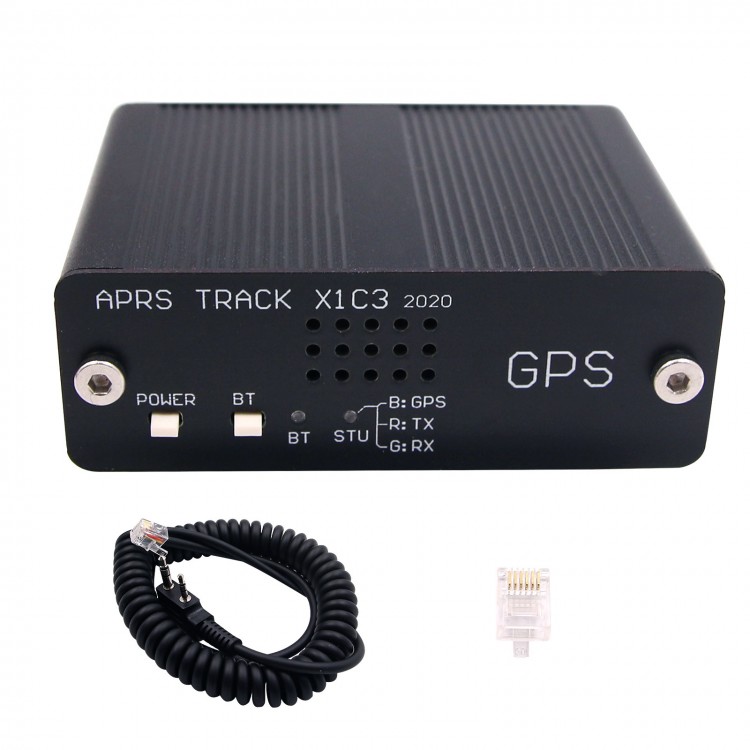

Multifunctional version for APRS 51Track X1C3 is made according to some HAM requirements.

With our self-developed technology, it can plug to play. It is convenient for APRS users.

It supports TRACK, DIGI, USB, new imported digital codec, and dual-mode Bluetooth (optional).

Note:
- Walkie talkie is not included.
- Optional: 2.0 + 4.0 dual-mode Bluetooth. If it is needed, please contact us for details and to pay extra money.
- Please prepare USB charging cable by yourselves.
- Connect via a USB cable to set call sign, upgrade firmware. We can help you set call sign. If needed, please leave a message.
- Please refer to manual for APRS TRACK X1C3. The main functions of these two are the same. Thank you!

Features:
- Support fixed station FIXED, sports SPORT, 2 site modes
- Support TRACK tracker, support intelligent, timing, PTT linkage, and queue beacon
- Support beacon additional information, mileage, satellite number, voltage, temperature, air pressure, etc.
- Support mileage calculation, support accumulated mileage or automatic clearing
- Support for automatic icons (TRACK smart mode)
- Support GPS power saving mode (TRACK PTT linkage mode, TRACK timing mode)

Bluetooth 2.0 & Bluetooth 4.0 (Optional):
- Support for Bluetooth output KISS, UI, GPWPL
- Support Bluetooth output GPS data (GPRMC/GPGGA), support mixed output
- Support for Bluetooth KISS data bidirectional transparent transmission
- Support DIGI relay function, support customized relay's names, support relay remote control to turn on/off
-Support power-saving transmitting, automatic shutdown function (when no signal for APRS, custom shutdown time)

- Built-in USB communications interface (for charging, settings, and upgrading)
- Built-in advanced CMX codec algorithm
- Internal transmitting level and receiving level regulator (-10.5dB to 0dB)
- Built-in high-performance GPS module, 56CH GPS for UBLOX (for ubx-g7020-kt)
- Built-in charging and power management circuits
- Support external k type hand-held mic

-Support for APRS distance and elevation target calculation, support G5500 tracking control (Optional)
- PC setting software included (In Chinese & English) (requirement for .NET 4.0)
- Touch function switch (concave design prevents user from pressing by mistake), sturdy aluminum alloy shell

Package Included:
- 1 x Walkie Talkie Module
