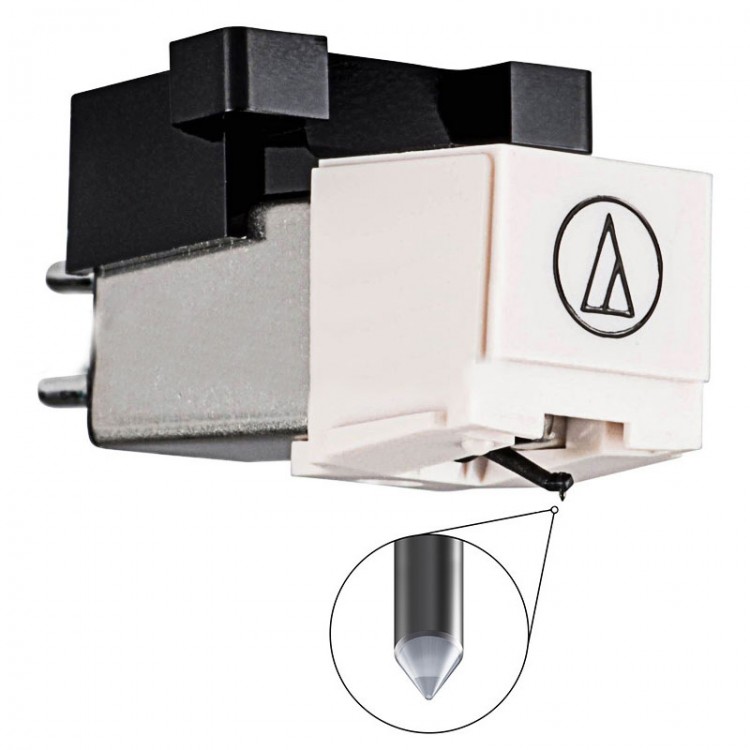

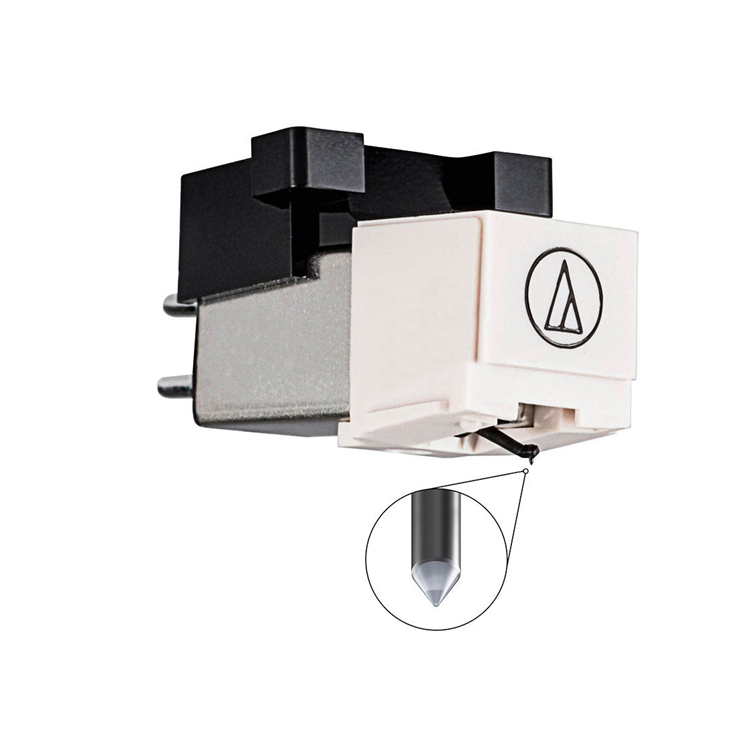

For Audio-Technica 3600L MM LP Phono Cartridge Moving Magnet Cartridge Diamond Stylus For LP60 310BT

For Audio-Technica 3600L MM LP Phono Cartridge Moving Magnet Cartridge Diamond Stylus For LP60 310BT

Attention:
- In order to quickly determine whether this cartridge is suitable for your machine, please provide a picture of your original cartridge to the customer service, thanks!
- It is not for replacing Ruby cartridge or T4P cartridge.
- The stylus is a consumable product, and its normal service life is about 300-400 hours. Except for damage caused by careless operation, the use of excessive needle pressure, shoddy low-quality records and severely shaking turntables will shorten the life of the needle tip. As the radius of curvature of the sharpened needle tip becomes larger, its ability to track high-frequency signals in the acoustic groove decreases. When the sound details are reduced, the treble is gradually poor, and the sound becomes more and more dull, you need to consider replacing the cartridge. Currently on the market most vinyl record players above use MM cartridges. Cartridges for Audio-Technica are basically universal, just confirm whether they can be fixed to the tonearm stand. If your original player is also using this cartridge, then It's even simpler. You only need to remove the stylus for replacement, without the entire cartridge replacement.

Description:
Original 3600L is a cost-effective cartridge. It has a production history of more than 50 years. The production technology and craftsmanship have been very mature. Due to the current trend of vinyl, the production and sales are increasing year by year. What is even more rare is that it serves as a starter cartridge for Audio-Technica, the material of the stylus has not been reduced. The tip is an extremely durable artificial diamond, and the needle shaft is made of high-quality carbon fiber, which not only enhances the hardness, but also ensures the sound level.

Phone Cartridge Specifications:
- Output voltage: 4.2mV
- Frequency response: 20Hz-20kHz
- Channel balance: 1.5dB
- Channel separation at 1kHz/10kHz: 24/15dB
- Tracking force: 2-2.5g
- Stylus type: Highly polished and shaped .0006 inch conical diamond
- Stylus construction: Bonded round shank
- Net weight: 5.7 g
- Dimensions: 17.0 (H) x 16.3 (W) x 31.0 (L) mm
- Cartridge fixing hole distance: 10mm (measurement center distance is 12.5mm) (with fixing screw)

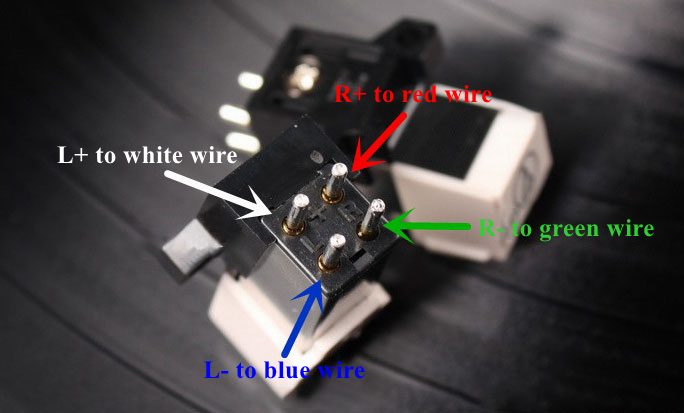

- Phono terminal has 4 pin wiring indications of R+, R-, L+, L- (as shown below)

Package Included:
- 1 x Set of Phono Cartridge Stylus
