For Fangling F2300B 2 Axis CNC Controller Motion Controller For Gantry Flame Plasma Cutting Machines

For Fangling F2300B 2 Axis CNC Controller Motion Controller For Gantry Flame Plasma Cutting Machines

Difference between F2300B and 2300A:
The keyboard of 2300A is on the right side of the screen, and the keyboard of F2300B is below the screen.

Description:
The new version adds a CAN interface. The CAN bus interface supports remote control and height controller, and its wiring is simple and convenient. The installation dimensions, interfaces and system functions of the new system are exactly the same as those of the old one which can be replaced completely.

F2300B CNC controller is a new product, absorbing the advantages of many CNC controller, which is more user-friendly, more convenient and more cost-effective. The controller can control the motion of two axes, which is apt to the application of flame, plasma or laser cutting. This series is suitable for all two axis CNC machines which support position control mode.

The controller high performance chip for ARM and ultra large scale programmable device FPGA, runs multi task real-time operating system and adopts the method of combining software interpolation with hardware interpolation, making high-speed operation more stable and reliable. Reflect speed is very fast. Based on research of CNC system for many years, the machines control is more stable and the protection mechanism is quite good.

F2300B Hardware Configuration:
1. Display: 10.4-inch 800*600 high-resolution 16 million color high-brightness LCD screen
2. Memory: 64M SDRAM
3. User program space: 256M
4. Main frequency: 400MHZ system main frequency
5. USB: USB1.1 interface front, support at least 16GB USB flash drive
6. Keyboard: PCB film keyboard
7. Chassis: The all-steel structure is completely shielded, which can truly prevent electromagnetic radiation, anti-interference, and anti-static

System Interfaces:
a) DB15 core male two-axis motor drive interface
b) DB25 core female connector 16-channel photoelectric isolation output, the maximum reverse current is 300mA
c) DB25 core male connector 16-channel photoelectric isolation input, maximum input current 300mA
d) Built-in USB interface on the front panel, convenient for users to transfer cutting code

Basic Parameters & Configuration:
- Master MCU: Industrial-grade ARM 9 chip
- Number of control axes: 2-axis linkage (3-axis can be customized)
- Maximum number of program lines: 150,000 lines
- Maximum single program: 4M
- File storage: electronic storage disk, 512M
- User program space: 256M
- Control accuracy: ±0.001mm
- Coordinate range: ±99999.99mm
- Maximum pulse frequency: 250KHz; Maximum operating speed: 25m/min
- Time resolution: 10ms
- System working power: DC+24V DC power input
- System working environment: temperature 0℃ to +55℃; relative humidity 0-95% non-condensing
- External interface: USB
- Keyboard: PCB film keyboard, PS/2 interface, for Omron button
- Chassis: All metal structure is fully shielded, anti-electromagnetic radiation, anti-interference, anti-static
- Special configuration: F2000 full series can be equipped with touch screen, 100m wireless remote control, wired hand control box
- Support oxygen gas, plasma, powder spraying, demonstration
- Up to 45 commonly used graphics libraries
- Graphic scale, rotation, mirroring
- Graphic matrix, staggered, repeated arrangement
- According to the thickness of the steel plate, the speed can be automatically limited at the corner to effectively prevent over-burning
- Metric and inch switching
- Graphic plate correction
- Customizable coordinate system
- Customizable IO
- System and parameter backup, online upgrade
- All Chinese/Foreign languages (English, Japanese, Russian, French, and other customized languages) operation menu, Chinese and foreign languages are switched by one key.
- Select row and number
- Support edge cutting, offset cutting
- With power failure, breakpoint protection memory function
- Dynamic/static processing graphics display, graphics zoom in/out, dynamic tracking of cutting points in zoomed state
- With power failure, breakpoint protection memory function
- Support for Wentai, TYPEIII, PM2000 and other special nesting software
- Encryption and decryption function: different management authority and corresponding password can be set to protect the rights and interests of management

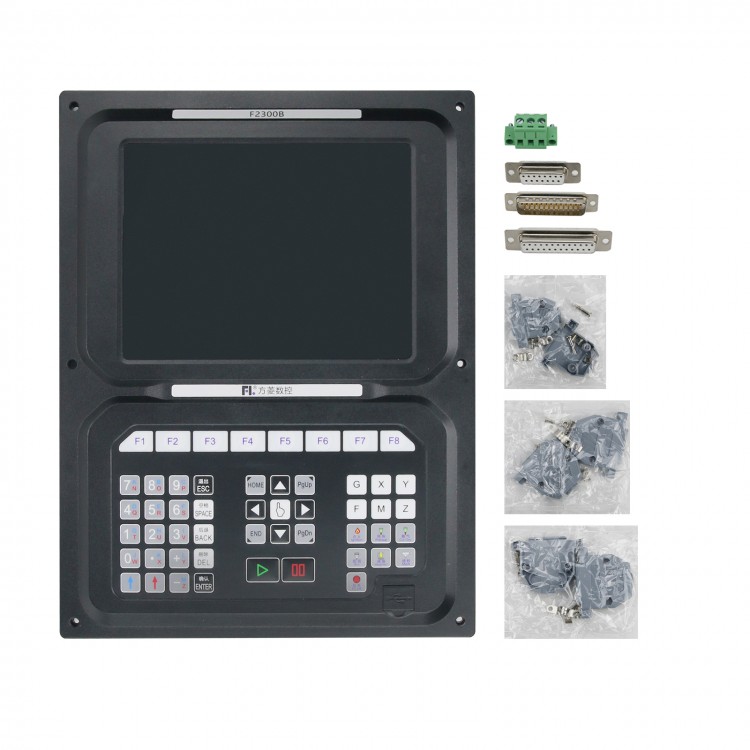

Package Included:
- 1 x CNC Controller
