For Ford Blue CN UCDS Universal CAN Diagnostic System Diagnostic Adapter Full Function Version

For Ford Blue CN UCDS Universal CAN Diagnostic System Diagnostic Adapter Full Function Version

Version Introduction:
The CN UCDS (Universal CAN Diagnostic System) is a full-featured version with no limit to the number of computers, and its functions are synchronized with the Russian version.

Note: The initial number of UCDS functions are 15. If more functions are needed, please contact our customer service staff to pay extra money.

Description:

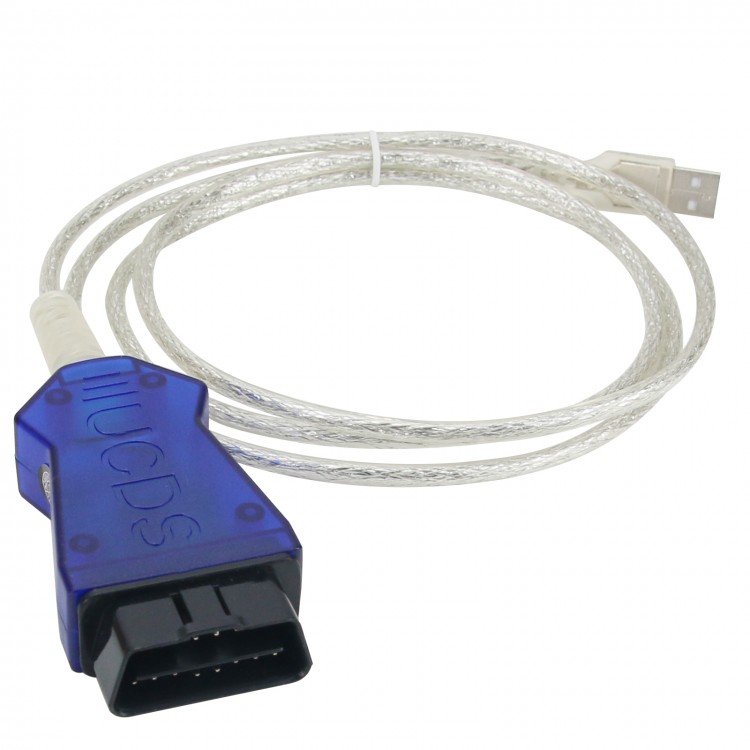

Diagnostic adapter from the hardware-software Universal Can Diagnostic system (UCDS) is manufactured on a standard printed circuit board with the use of modern high-speed electronic components. PCB with the necessary controls and indicator lights is built into the standard plastic mini-box with USB-connector for connection to a PC with pre-installed drivers and software and OBD II connector for connection to the car diagnostic interface.

Inspection lights allow you to visually determine the current state of the power supply, a process that takes place in real time (read/write data), depending on the mode of operation of the adapter. External controls on the adapter are made in the form of push-buttons that serve solely for the adapter mode without connecting to a PC. The adapter has built-in capability to update its internal software (firmware).

UCDS allows users to:
- Diagnose the majority of car parts and components that are connected to a central electrical module (For GEM, BCMii) through the data bus (CAN);
- Receive data embedded in the car components and modules, including their part number, version, calibration, serial number;
- Make the necessary changes to the central configuration of the car, and change the configuration of the modules and components if necessary;
- Update the calibration (firmware) of the modules and components of the vehicle, including the engine (the so-called chip tuning);
- Perform regular language adaptation of the audio modules for SONY (Russian language only);
- Upgrade (replacement) of the door modules software to activate the automatic folding door mirrors.
- Other…

The UCDS consists of drivers of the serial bus USB-serial (recommended drivers for FTDI), hardware adapter and the actual UCDS-programm.

The software interface of the UCDS interface has main window’s mode. You need to select the type of the vehicle or select the service mode for adapter's firmware update or other service functions.

UCDS currently works with the following platforms: For Focus II 2004-2011; For Focus III 2011, 2015; For FOCUS MK4; Kuga I, Kuga II; For C-MAX; S-MAX; For MONDEO IV; Mondeo 2015 ; For Galaxy; For Tansit; For Fiesta 2008, 20015 etc.

Support J2534 (Pass-Thru) protocols, which allows you to use the adapter in third-party programs like is for Ford ETIS Java Online, PCMFlash, FORScan и тд -Modified Convers+ от Motral (Mondeo 4/S-MAX).

Package Included:
- 1 x UCDS Diagnostic Adapter
