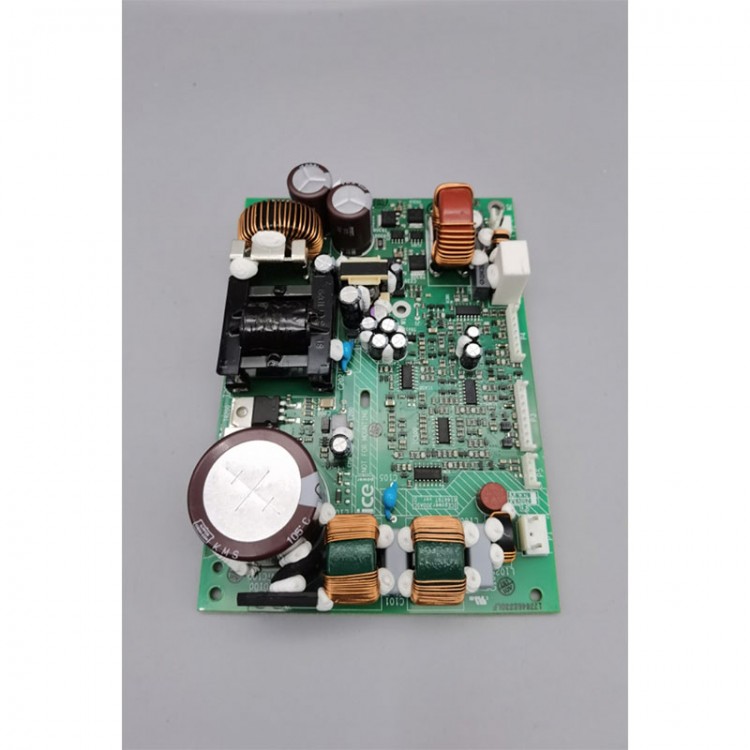

For ICEPOWER 300AS1 Power Amplifier Module Hifi Power Amp Board 300W Denmark Audio Amplifier
Description:
The 300AS1 combines an efficient forward type power supply with a 1x 300 W high quality class D amplifier. It includes a DC hanger bus for powering up to three 300A1 hanger amplifiers. On its own it is therefore perfect for single channel applications such as subwoofers, bass and guitar amplifiers. Combined with 300A1 hanger amplifiers, it can be used for 2- and 3-way PA speakers, studio monitors, hifi and home automation amplifiers.
Applications:
- Bass amplifiers
- Subwoofers
- Self-powered PA speakers and line arrays
- Active 2- and 3-way hifi speakers and studio monitors
- Mono, stereo and multi-channel amplifiers
Key Performance Parameters:
- Output Power per channel 1 % THD+N, 20Hz-20 kHz:300 W (4Ω); 150 W (8Ω)
- Output Power 10 % THD+N, 20Hz-20 kHz: 380 W (4Ω)
- Minimum load impedance: 2.5Ω
- Maximum total amp + psu efficiency: 80%
- Supply voltage input: 85-264VAC
- Peak output current: 20A
- Dynamic range: 113dB
- Amplifier maximum output peak voltage per channel: 50V
- Output referenced idle noise (A-weighted): 75 µV
- THD+N 1W/1kHz: 0.006%
Package Included:
- 1 x Power Amp Module
