For Jiyi K++ Flight Controller Set Perfect For DIY Agricultural Plant Protection Spray Drones

For Jiyi K++ Flight Controller Set Perfect For DIY Agricultural Plant Protection Spray Drones

Description:
As a new generation of flagship flight control system, K++ combines the advantages of classic flight control K3A, and strengthens the compatibility and multi-redundancy scheme to form a redundant redundancy control system with superior performance and strong reliability. Work safe.

Features:
Precise Control:
Flight accuracy increased by 25%.
Vertical control accuracy increased by 20%.
The trajectory is more precise and the flight is smoother.

Strong Shock Resistance:
Double shock absorption structure design.
Respond to a variety of complex vibration effects.
The aging of the rack can also be stable.
Reduce investment in after-sales maintenance.

Multiple Redundant Backup:
Three redundant IMU.
Double redundant barometer.
Flying is safer.

Noise Reduction and Power Saving:
Motor noise is three times smaller.
Province 5~15% electricity.
The flying sound is smaller.

Calibration Free:
Industrial grade sensor configuration.
One calibration.
Lifetime free IMU calibration.

Attitude Control:
The attitude control stability is doubled.
Control is more stable.
Better wind resistance.

Dual CPU Configuration:
Dual CPU configuration.
More powerful processing.
Supports up to 1000Hz ESC control.

Backup Power:
The main control supports the backup power interface.
The power supply is more reliable.

Intelligent Vibration Analysis Function:
K++ comes with intelligent vibration analysis function, which can determine the vibration of the aircraft in real time during flight, and display the safety warning in the APP to help adjust the adaptability of all aspects of the fuselage device, making the flight operation more energy efficient , safer and safer.

Multiple Backups are Safer to Fly:
During the sensor, the sensor data of IMU is monitored in real time through advanced diagnostic algorithms. When the sensor in the navigation system is abnormal, the system immediately switches to another sensor. To ensure the safe flight of the aircraft.

One Calibration, Not Afraid of Environmental Interference:
After the same aircraft flight control system is installed, it only needs to be calibrated once. Even if the operating environment is replaced, it does not need to be recalibrated and is easy to Use.

Product Parameters:
Supported multi-rotor types:
Quadcopter (+, X)
Hexacopter (+, X, IY and YI coaxial twins)
Octocopter (+ type, X type, V type)
Supported ESC type: 490HZ or less PWM ESC
Maximum output channel: 8 channels

Recommended remote control type
Supported receiver types: For PPM, S-BUS receiver
Support expansion equipment: For K-BOX, IOT, RTK, obstacle avoidance radar, terrain radar, integrated remote control, FPV camera, flow meter, level gauge
Working voltage: 2-12S
Power consumption: less than 5W
Working environment temperature: -10 to 60°C
Storage environment temperature: -25 to 60°C
Earthquake resistance rating: <1G

Flight characteristics
Hovering accuracy: horizontal direction ±1.5 m; vertical direction ±0.5 m
Maximum tilt angle: 30°
Maximum yaw speed: 150°/sec
SBUS receiver Maximum vertical speed: 6 m/s
Wind resistance: continuous wind: 4
Gust: Level 5

Flight mode and function:
Attitude mode, GPS mode, AB operation, route operation, one-button return loss control, out of control continue operation, low voltage protection, fence function, log storage function, landing lock function, no-fly zone function, vibration protection function, star protection function, active noise reduction function, motor sequence detection function, direction detection function, dual pump mode, drug break protection function, precision spray, water pump switch control, water pump linkage control

Hardware Specifications:
Weight:
- Total net weight: 321g
- FC: 87g
- PMU: 41g
- PMU2 (UPS): 44g

Sizes:
- FC: 72.6mm x 48.0mm x 22.8mm
- PMU: 53.4mm x 34.4mm x 14.5mm
- PMU2 (UPS): 53.4mm x 34.4mm x 14.5mm
- GPS: 62*14.3mm
- LED: 24*24*8mm

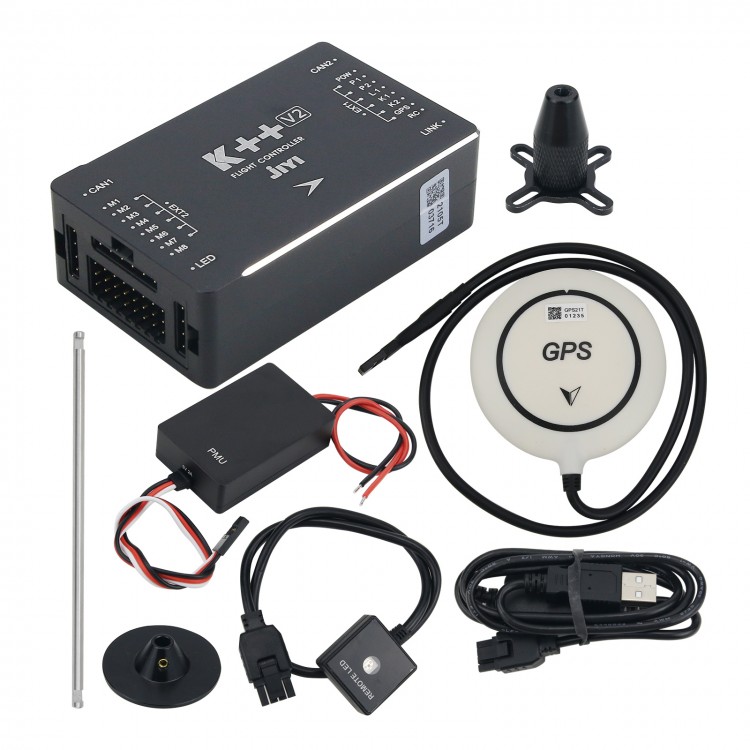

Package Included:
- 1 x Set of Flight Controller
