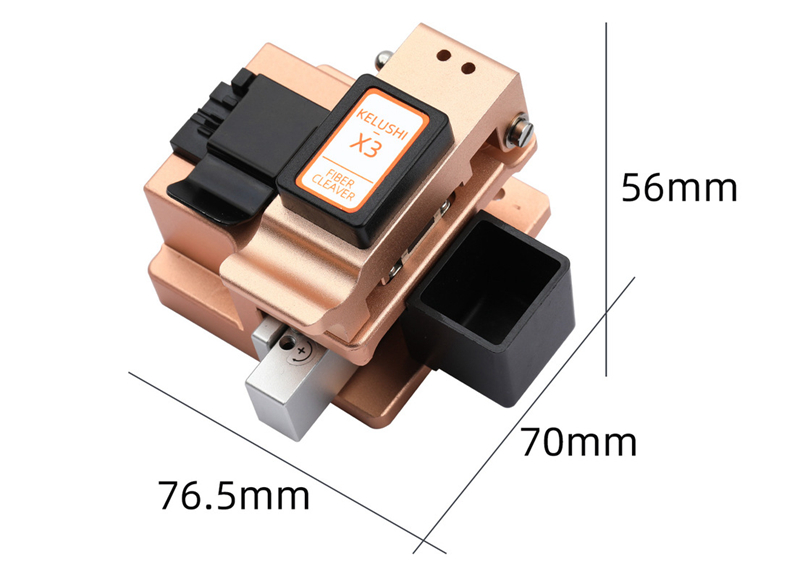

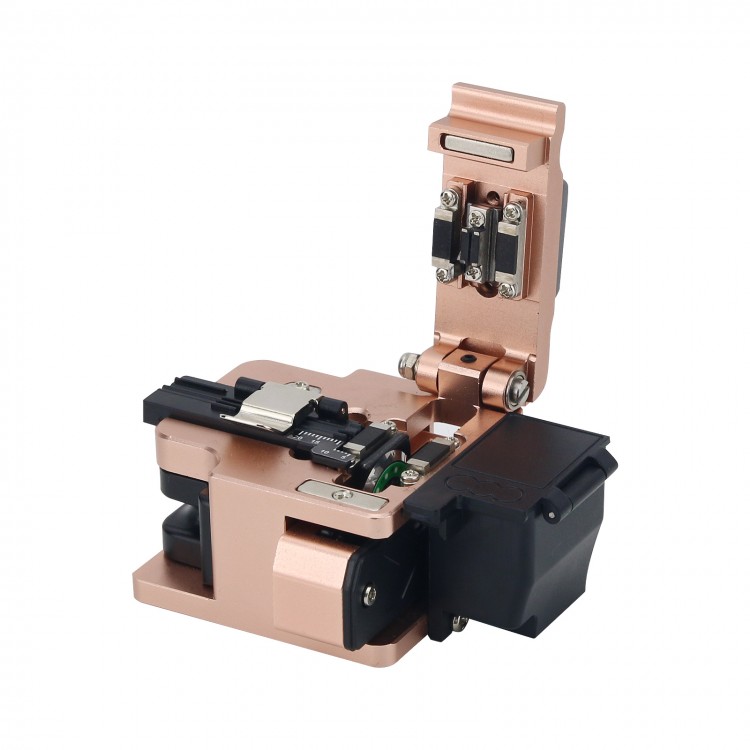

For KELUSHI-X3 Optic Fiber Cleaver Tool High Precision FTTH Cleaver Flat And Smooth Cutting Surface

For KELUSHI-X3 Optic Fiber Cleaver Tool High Precision FTTH Cleaver Flat And Smooth Cutting Surface

Features:
- High-precision optical fiber cleaver, suitable for cold splicing and hot melting
- Aviation duralumin blade
- 3-in-1 clamp is suitable for bare fiber, covered wire and tail fiber. Comes with sponge pressure pad, cutting more stable
- High-quality slide rail, automatic tool return design, simple operation, smoother operation
- High hardness tungsten steel blade, good wear resistance, mirror grinding blade. 24 cutting end faces, long service life
- The cutting surface is flat, the angle is ≤0.5°. The cutting is accurate, the cutting surface is smooth, and the loss is small
- With a hexagonal wrench for easy adjustment. Firmly attached by magnet, it is convenient to carry and use
- Sponge pressure block, non-slip foot pads, vulcanized rubber pressure pad, and a waste fiber box

Specifications:
- Cutting angle: ≤0.5°
- Cutting length: 9~16mm (diameter 0.25mm); 10~16mm (entry fiber); 9~16mm (diameter 0.9mm)
- Fiber diameter type: 125um
- Applicable fiber core number: single core
- Blade service life: about 50,000 times
- Suitable operating temperature: -40 to 80℃
- Suitable for storage temperature: -40 to 80℃

Package Included:
- 1 x Fiber Cleaver
- 1 x Hexagonal Wrench
- 1 x Instructions
- 1 x Protective Case

Common Cutting Problems and Solutions:
Q1: Fibers cannot be cut off
1. Clean the rubber foot
2. Increase the height of the blade

Q2: The fiber edge has rounded corners
1. Increase the height of the blade
2. If the rubber foot is worn or aged, please replace the rubber foot

Q3: There is a shadow on the end of the fiber, or the slope is large
The low blade, especially the high blade, is the cause of the large slope. Adjust the height of the blade

Q4: Fiber core defect
Generally caused by too high blade, reduce blade height
