For pyAI-OpenMV4 Cam +Adapter Board + pyBase + 0.9" OLED + USB Cable + 16G SD Card + 1.77" LCD

For pyAI-OpenMV4 Cam +Adapter Board + pyBase + 0.9" OLED + USB Cable + 16G SD Card + 1.77" LCD

Applications:
- Feature Recognition
- Linear Regression
- Face Recognition
- Numeral Recognition
- Smiling Face Recognition
- Robot Line Tracking
- Color Tracking
- Rectangle Recognition
- Object Recognition
- Color Recognition
- Edge Detection
- Line Identification
- Pupil Tracking
- Image Filtering

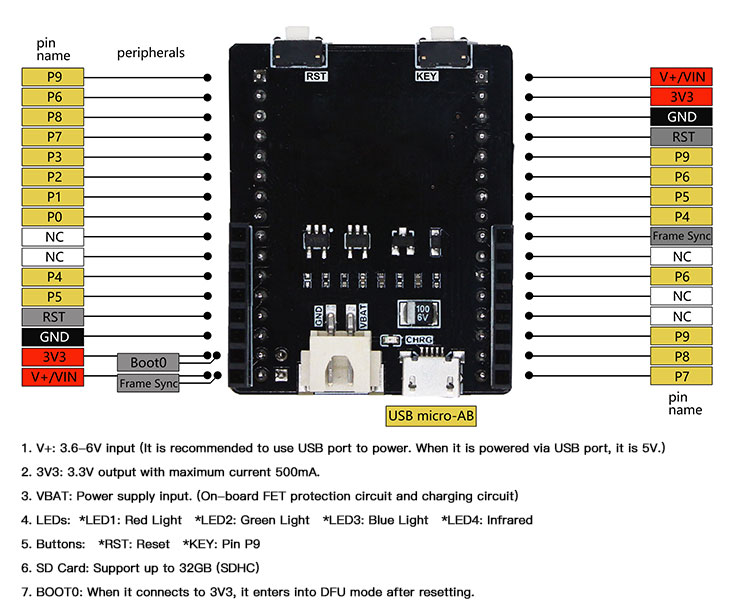

Cam Module Description:

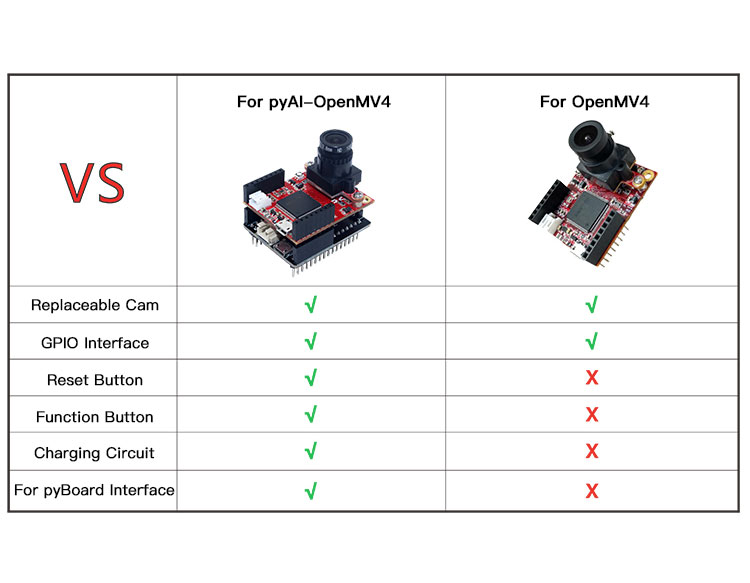

With an adapter board, it, replacement for OpenMV4 platform, fits for py-board. It features power supply input interface, charging circuit, reset and function buttons, reasonable layout and clear screen printing.

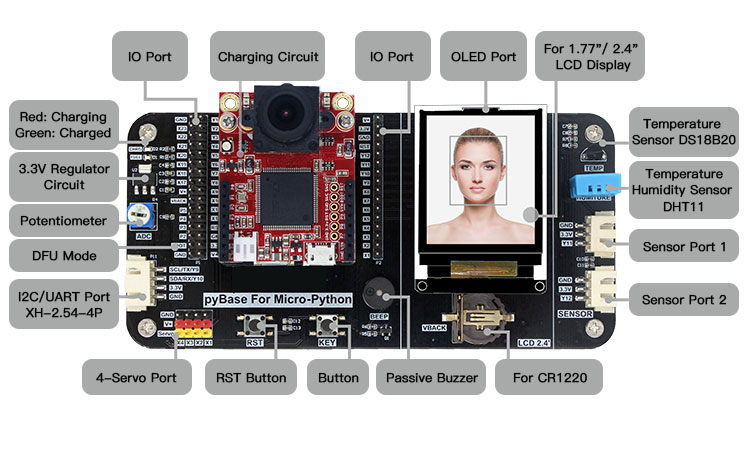

pyBase Introduction:
It is a base board which is specially designed for pyBoard. With rich on-board resources, pyBase is designed with interfaces for powerful compatibility.


pyBase Functional Parameters:
- Interface For py-board: Fit for pyBoard, pyWiFi-ESP8266, pyWiFi-ESP32
- 2.54mm Pin Header: Interfaces for pyboard
- Buttons: 2 Buttons
- Potentiometer: ADC input
- Passive Buzzer: DAC output
- Servo Interface: X1-X4. Connection to external isolated circuit is needed
- OLED Port: For 4P/ 0.96"/ I2C/ OLED displays
- 1.77" LCD Port: For 01 Studio 1.77" LCD display
- 2.4" LCD Port: For 0.1 Studio 2.4" LCD display
- Temperature Sensor: DS18B20
- Temperature Humidity Sensor: DHT11
- Sensor Port 1: 3P interface for external sensor
- Sensor Port 2: 3P interface for external sensor
- Communications Port: 4P interface for UART/ I2C devices
- Charging Circuit: Charge power supply (Red Light: Charging; Green Light: Charged)

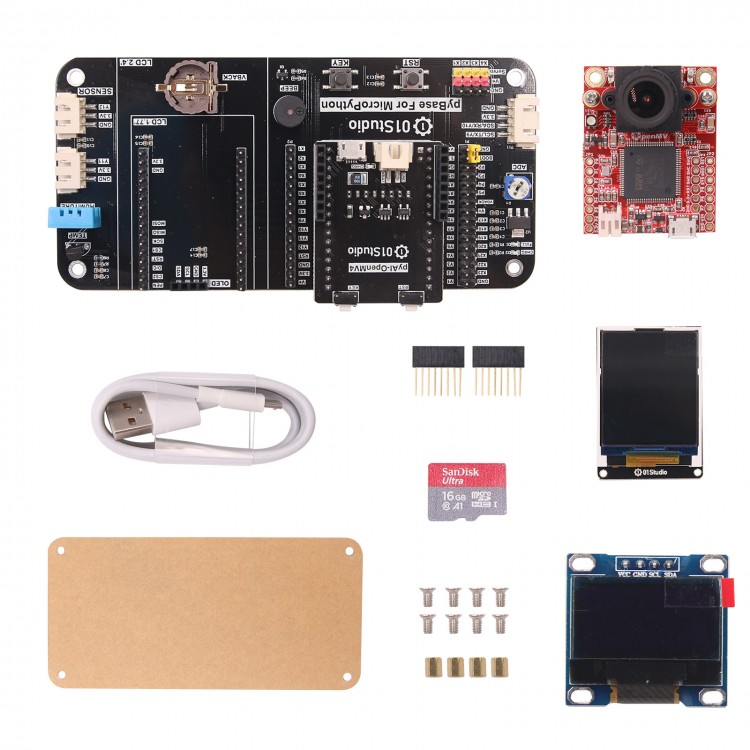

Package Included:
- 1 x Camera Module
- 1 x Adapter Board
- 1 x pyBase
- 1 x 0.9" OLED
- 1 x Micro USB Cable
- 1 x 16G SD Card
- 1 x 1.77" LCD

Note:
- The kit comes with official KEY.
- Battery is not included in the package.
