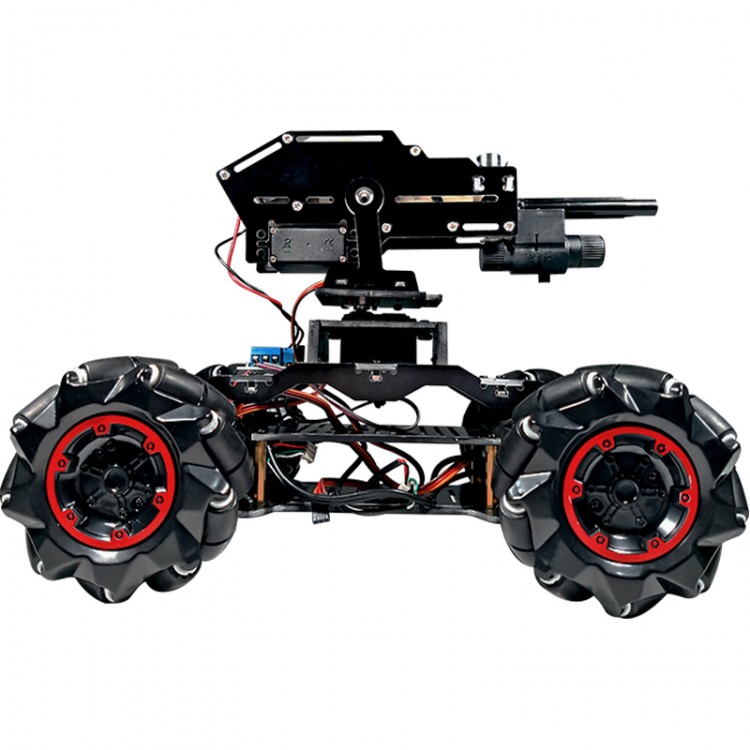

For Robomaster S1 Imitation Robotic Car DIY Mecanum Wheel Chassis Blaster Car with Control Board
Specifications:
Blaster:
Range: 10 meters
Reloaded: 200 rounds
Power: 0-30W
Voltage: wide voltage input 7.4-12V
Blaster Controller:
Input voltage: 7.4-18V
Maximum flow: 10A
Maximum power: 180W
Signal light: launching light indication
Main Control Board:
Voltage: 7.4-12V
Communication: Bluetooth communication (with APP, only for Android phones)
Functions:
-4-way servo control port
-4 0-5V power output control ports
-4-way DC motor control port (non-encoder motor).
-3 serial communication ports (can support OpenMv camera)
-USB / CAN port
-Power indicator
Gimbal:
Material: glass fiber board, metal gear steering gear
Pitch axis angle: -20 ° ~ + 12 ° (large enough)
Horizontal rotation axis angle: -60 ° ~ + 60 ° (wide enough)
Extended function: with Nvidia Jetson Nano / Openmv visual capture, take over PTZ assisted aiming
Metal Copper Gear Servo:
Working voltage: 5.0V
Working torque: 13KG / cm
Response speed: 0.17 seconds / 60 ° (4.8V)
Features:
1. The gimbal has high control precision, fast response and wide range.
2. The blaster has a high safety factor and a long range (expandable camera visual capture).
3. The Mecanum wheel chassis has large space and fast movement, 360° all-round moving, with DIY features.
4. The main control board has multiple interfaces, which is highly extensible, easy to control, and can be easily graphically programmed. STM32 supports C / C ++ language programming.
Package List:
-1 x Blaster
-1 x Blaster Controller
-2 x Gimbal Servo
-1 Set of Gimbal Bracket (glass fiber board)
-2 x Transmission Gear
-1 Set of Auxiliary Wires
-1 Set of Matching Screws
-1 x Hexagon Wrench
-1 x Phillips Screwdriver
-1 x Main Control Board
Note:
1. This robot car is unassembled. If you need an assembled one, please contact customer service.
2. The product package does not include battery.
3. The APP currently only supports Android phones, and we does not send source code. Please make sure you do not mind before ordering.
4. It is strictly forbidden to shoot at people; wear goggles when using, and disconnect the water gun voltage when not in use or debugging.
5. The default color of blaster is white. If you need a black one, please contact customer service.
