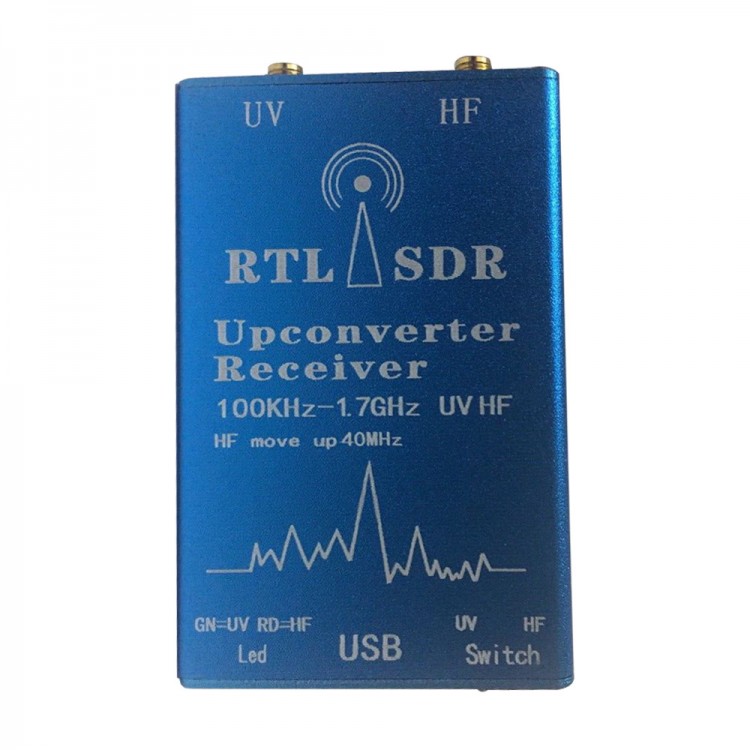

For RTL SDR Receiver + Built-In SDR Upconverter 100KHz-1.7GHz UV HF Applied To Radio Communications
Description:
100KHz-1.7GHz broadband SDR receiver with built-in up-converter. The built-in 40Mhz up-converter can use R820T's built-in high-amplifier, so that it can receive shortwave with higher sensitivity than direct acquisition SDR with Q channel. The use of DBM balanced ring mixer makes shortwave noise lower and has a larger dynamic range. It can eliminate the unique aliasing sampling phenomenon of direct sampling.
It enables connections for computers, Android phones and other devices and use SDR software to receive 100KHz-1.7GHz electromagnetic waves. Support AM, FM (NFM, WFM), CW, DSB, LSB, USB demodulation. Can listen to short-wave single-sideband communications, FM radio, walkie-talkie calls, aviation bands, etc.
Analog sub-tone and digital sub-tone can be cracked by software. You can set up automatic search and scan. The ID of digital walkie-talkie can be cracked through software and voice signal can be demodulated.
Features:
- It is assembled and ready to use
- Use RTL2832U+R820T chipset
- 100KHz-1766MHz, working frequency range
- Covers all short-wave amateur bands
- VHF and UHF frequency bands cover from 24-1766MHz
- Sampling rate up to 3.2MHz. (2.8MHz stable)
- The receiving modes include NFM, FM, DSB, USB, LSB and CW. Attention: It depends on the SDR software used.
- 8-bit ADC sampling provides up to 50 decibels of dynamic range.
- 50 ohm input impedance.
- Dual SMA gold-plated antenna connectors.
- RF input protection with diode limiting.
- Aluminum shielding shell.
- Band switching indication of LED lights.
- 100MHz local oscillator.
- DBM balanced ring mixer
- Small size
- Free software
- HF and UV input from independent antennas
- USB computer connection (powered via USB)
- Very high dynamic range, higher sensitivity.
- Radio frequency switching chip switches the band.
Note: All specifications are subject to change without notice. Thank you for your understanding!
Package Included:
- 1 x Set of SDR Receiver with Upconverter
