For Tecsun PL-365 Full Band Radio Digital Demodulation DSP Radio Receiver Single Sideband Grey

For Tecsun PL-365 Full Band Radio Digital Demodulation DSP Radio Receiver Single Sideband Grey

Download Manual Here:
Link for https://www.tecsunradios.com.au/store/wp-content/uploads/2015/12/PL-365-MANUAL.pdf?spm=a2g0o.detail.1000023.1.40567a1d3oNvxE&file=PL-365-MANUAL.pdf

Description:
PL-365 radio is the latest model in our truly handheld range of multiband radios. The unique shape and size of the PL-365 design was based around the requirements of our military and law enforcement customers so that the radio could easily fit onto a belt clip or backpack pocket. This has to be the smallest HF receiver with SSB capability in the world!

The PL-365’s RF design has been upgraded and now utilizes the Si 4735 chipset (the earlier model PL360 utilised the Si 4734 chipset). The new chipset adds Single Side Band (SSB) to the PL-365 as well as increasing the coverage of the SW band up to 30MHz. The PL-365 further improves audio clarity of received signals by utilizing Digital Signal Processing technology to process the received audio and cancel out any background and RF noise.

Improvements have been made to extend the battery life of the PL-365 out to a maximum of 225 hours on a set of three Alkaline AA cells. Additionally, the PL-365 also includes internal charging capabilities to recharge AA cells (not supplied) via the radio’s USB connection port.

Features carried over from the previous model (PL360) include the use of an external ferrite rod antenna for AM reception. The use of an external ferrite rod antenna with the PL-365 is to overcome the form factor limitation of the handheld style and provide impressive AM (MW) performance for its class. Further improvements of AM reception can be achieved by utilising the radio with our AN-100 AM Loop Antenna. The PL-365 is the only radio in the range apart from the S2000 Desktop Radio, to provide an external antenna connection for the AM/MW band. Hence our Q3070 Outdoor MW/SW antenna is perfectly suited to this model.

The PL-365 Radio is an ideal radio to use for AM/MW EMI surveys because of its external AM antenna, ability to accept customized antennas and its display showing signal strength in dBuV.

PL-365 provides extended FM coverage down to 76 MHz, allowing the radio to receive broadcasts not intended for the general public. The PL-365 supports our patented Easy Tune Method (ETM) which is a one-touch automatic scan and memorize feature that scans the selected band and stores received signals in a temporary memory allowing for quick selection between stored signals.

Features:
- AM/FM Tuner
- Digital Signal Processing
- Auto Tuning and Storage via Easy Tuning Methods (ETM)
- SSB Capability
- 450 Memory Positions
- Alarm & Sleep timer
- Displays signal strength in dBuV
- Displays signal to noise ratio in dB
- External antenna socket (3.5mm)
- Headphone Socket (3.5mm)
- Battery power level display and temperature sensor
- Dimensions 53 x 159 x 26mm/2.1 x 6.3 x 1"
- USB 5V Charging socket for internal re-chargeable batteries (not supplied)
- Speaker: 40 mm in diameter, 4 Ohms, 0.5 watt (2 times the output of the PL360)

Performance Parameters:
1. Frequency Range:
Frequency Modulation (FM):
* Standard frequency coverage: 87~108MHz
* Europe and America: 87.5~108MHz
* Campus broadcasting, Japan: 76~108MHz
Medium Wave (MW):
* Asia, Africa and Europe: 522~1620 (150~1620) kHz
* United States, Canada: 520~1710kHz
Shortwave (SW): 1711~29999kHz
2. Noise Limit Sensitivity:
* Frequency modulation (FM) (S/N=30dB): better than 3uV
* Medium wave (MW) (S/N=26dB): better than 1mV/m
* Long wave (LW) (S/N=26dB): better than 10mV/m
* Shortwave (SW) (S/N=26dB): better than 30uV
* Single sideband (SSB) (S/N=10dB): better than 3uV
3. FM stereo separation: better than 25dB
4. Number of radio stations stored: 550pcs
5. Output power: 350mW
6. Power supply:
* Battery: 3pcs R6(AA) (Batteries are not included)
* External DC power supply: USB 5V, current ≥250mA (Purchase separately)
7. In-machine speaker: Diameter 40mm/1.6", 16Ω, 500mW
8. External headphone jack: Diameter 3.5mm/0.1", 32Ω, stereo jack
9. Size: about 53 x 159 x 26mm/2.1 x 6.3 x 1"
10. Weight: about 128g (without batteries)

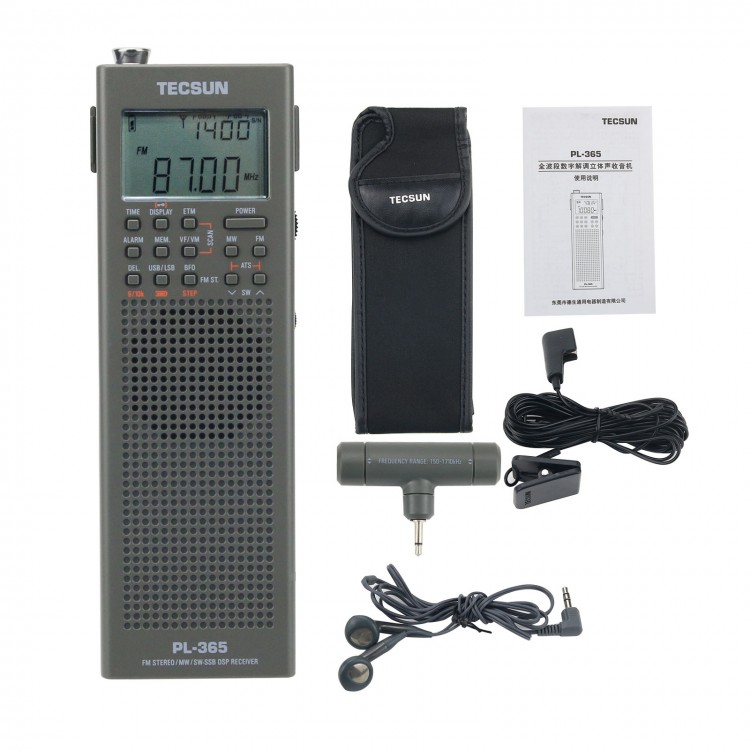

Package Included:
- 1 x Set of Radio Receiver

Note:
- It is powered by 3pcs R6 (AA) batteries or NiMH batteries. Batteries are not included in the package.
- Headset is not included.
