For Tesla Coil Controller QCW DRSSTC Controller Sword-Shaped Arc Generator DIY Gadgets

For Tesla Coil Controller QCW DRSSTC Controller Sword-Shaped Arc Generator DIY Gadgets

Disclaimer:
The manufacture and operation of SSTC may cause personal injury or property damage, and the consequences are not related to the designer or seller of this equipment.

Safety Warning:
When SSTC works in a strong magnetic field and strong electric field state, it will generate induced current on the surrounding metal objects, including wires, cables, and nearby electronic equipment, and generate strong electromagnetic radiation.

People with cardiac pacemaker are prohibited from using this product. Please keep away from the controller. Because if there is a carrier of implanted / non-implantable electronic medical devices nearby, power-on experiment may cause these devices to fail and make your life dangerous.

For the above reasons, please make sure that the equipment used is well grounded and that there is a sufficient safety distance from your SSTC during operation. You must know the power of your designed coil and the safety measures you should take, and ensure that all personnel are in a safe area. SSTC is a very dangerous device. Always keep a safe distance away from it during operation! (Note: The above distance is just the distance not to be hit by arc, and does not represent absolute safety. Users must clearly know the other effects of your coil.)

Both SSTC control and power output have voltages greater than the safe voltage.
Direct contact with limb parts is prohibited during operation and debugging.

There is a large-capacity energy storage device in SSTC, and it still has a fatal voltage after power off. When debugging, first discharge the charge in energy storage device. When a discharge element is installed, wait a few minutes before debugging. Manually short-circuit discharge is prohibited, as this will damage the energy storage device.

Fire Warning:
When SSTC work, heat will be generated from power components, heat sinks and other parts, especially during continuous operation. Therefore, relevant fire extinguishing facilities should be placed in SSTC workplace. It is strictly prohibited to place flammable and explosive items nearby. Please make sure that cooling fan is working during the entire working process.

Controller Parameters:
- Working Voltage:
  Single-phase AC 6V to 24V. AC12V is recommended (Please use an isolated power supply).
  DC 6V to 36V regardless of positive and negative. DC12V is recommended (Use isolated power supply or battery. Battery is not included).
  Warning: Regardless of the use of power frequency transformers, switching power supplies, or rotary converters, DC negative boosters, they must be isolated!
- Maximum Output Pulse Width: 30ms
- Maximum Output Frequency: 50Hz
  Note: When pulse width time exceeds cycle time, the pulse width will be automatically limited.
- Output Starting Power: 0 to 30% adjustable.
- Applicable Modulation: DC power modulation, inverter-side power modulation.
- Output Mode: Dual fiber output. Divided into modulation signals and running signals.
- Power Interface Type: DC005.
- Output Interface Type: ST fiber interface. Multimode fiber is required.

Package Included:

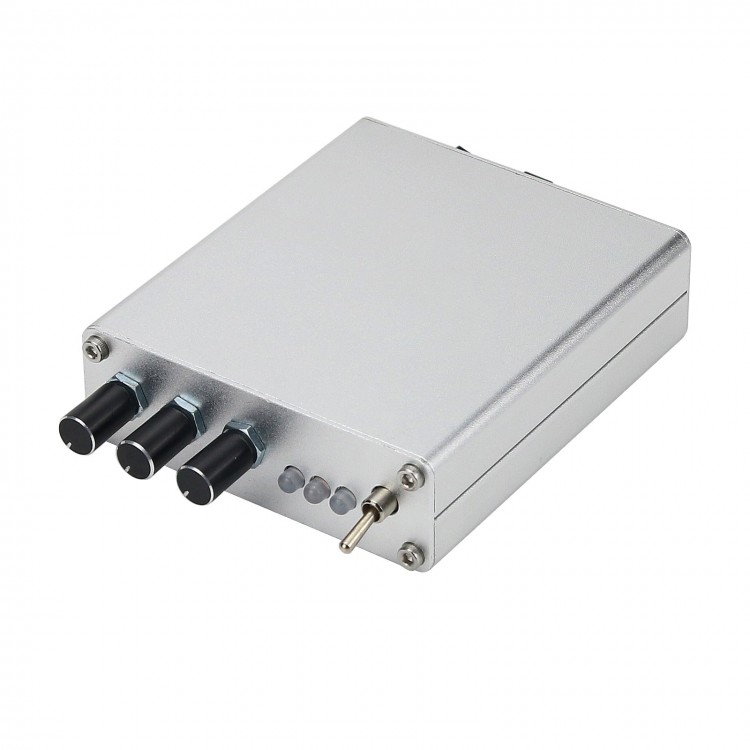

- 1 x Controller For Tesla Coil

Note: Battery is not included in the package.
