For ToolkitRC P200 Mini Desktop Adjustable Power Supply Support AC/DC Input with IPS Screen

Description:

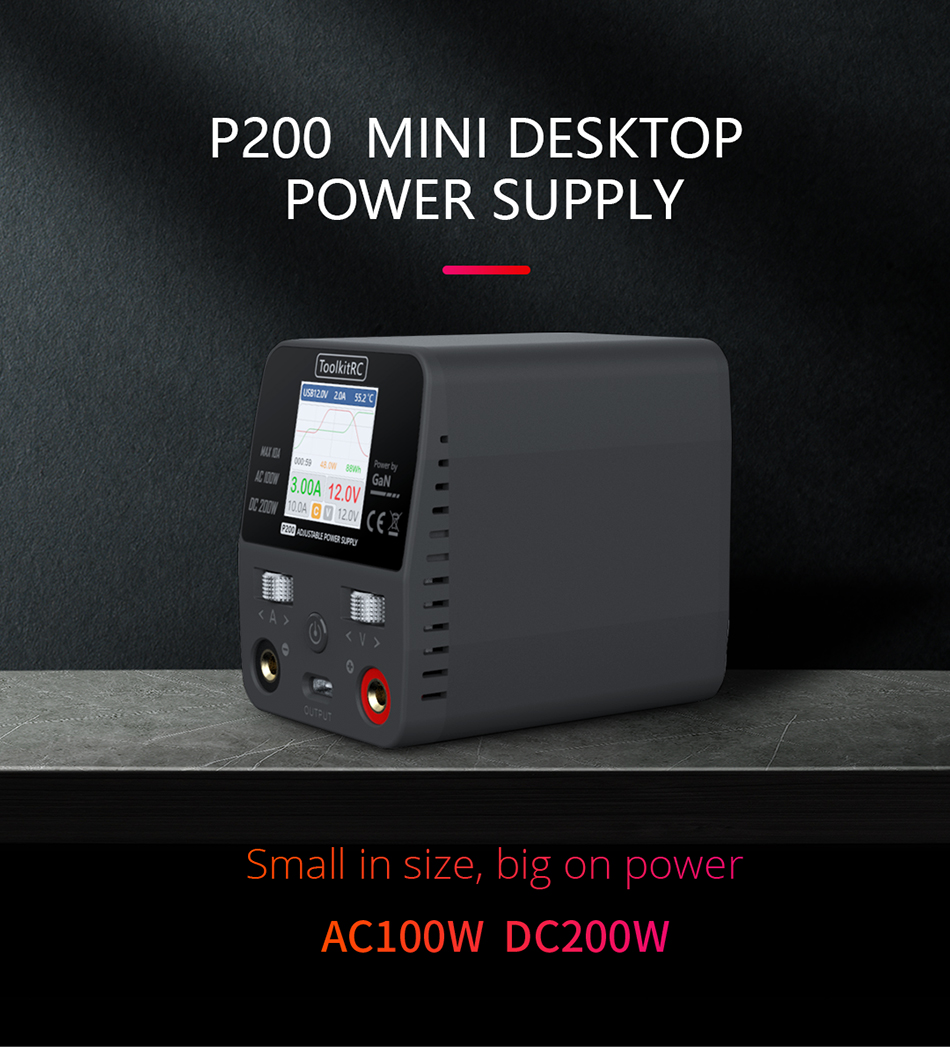

- P200 is a mini desktop adjustable power supply with two input modes of AC or DC, built-in 100W gallium nitride AC power supply, IPS wide angle display screen recording and curve display of voltage and current, and other features.

Features:

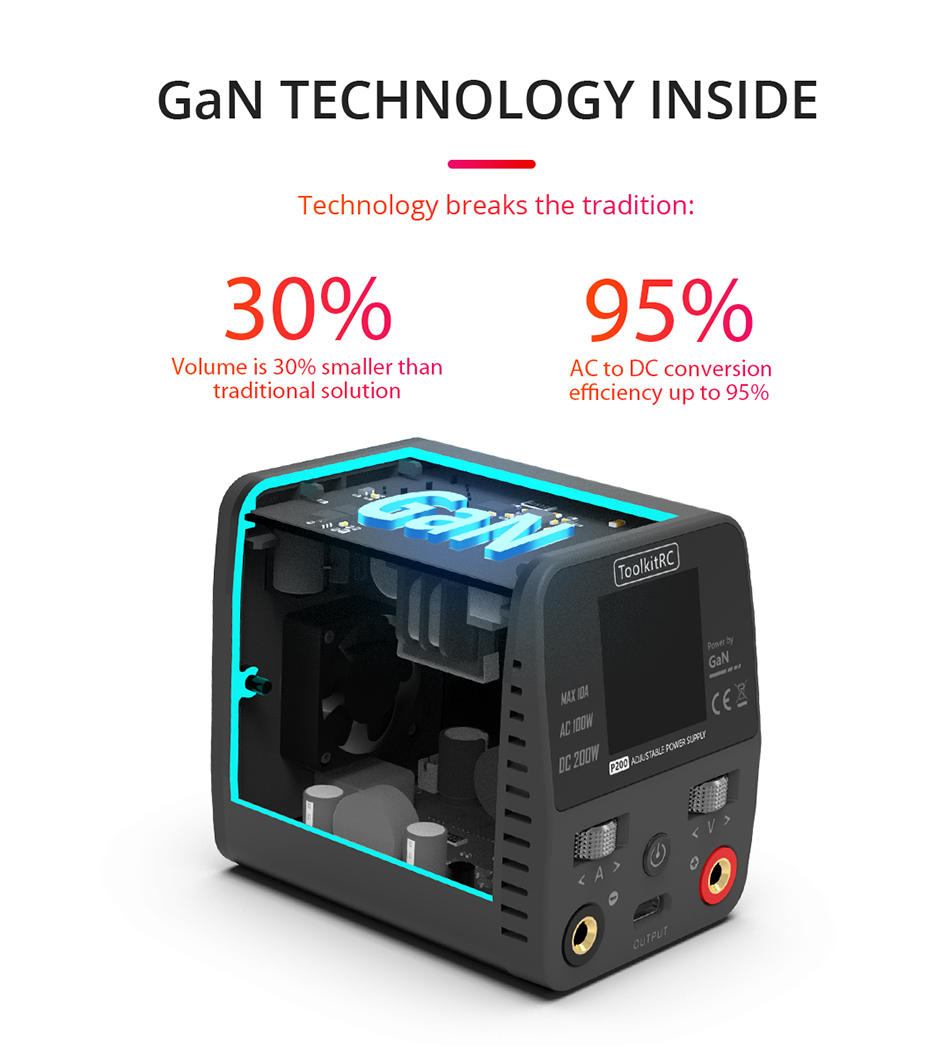

- Built-in GaN AC power supply
- AC/DC two input modes
- Conversion efficiency up to 95%
- For AC input, total output power up to 100W
- For DC input, total output power up to 200W

Specification:
- Input voltage:
  AC100 - 240V at Max 100W
  DC7 - 28V at Max 10A 200W

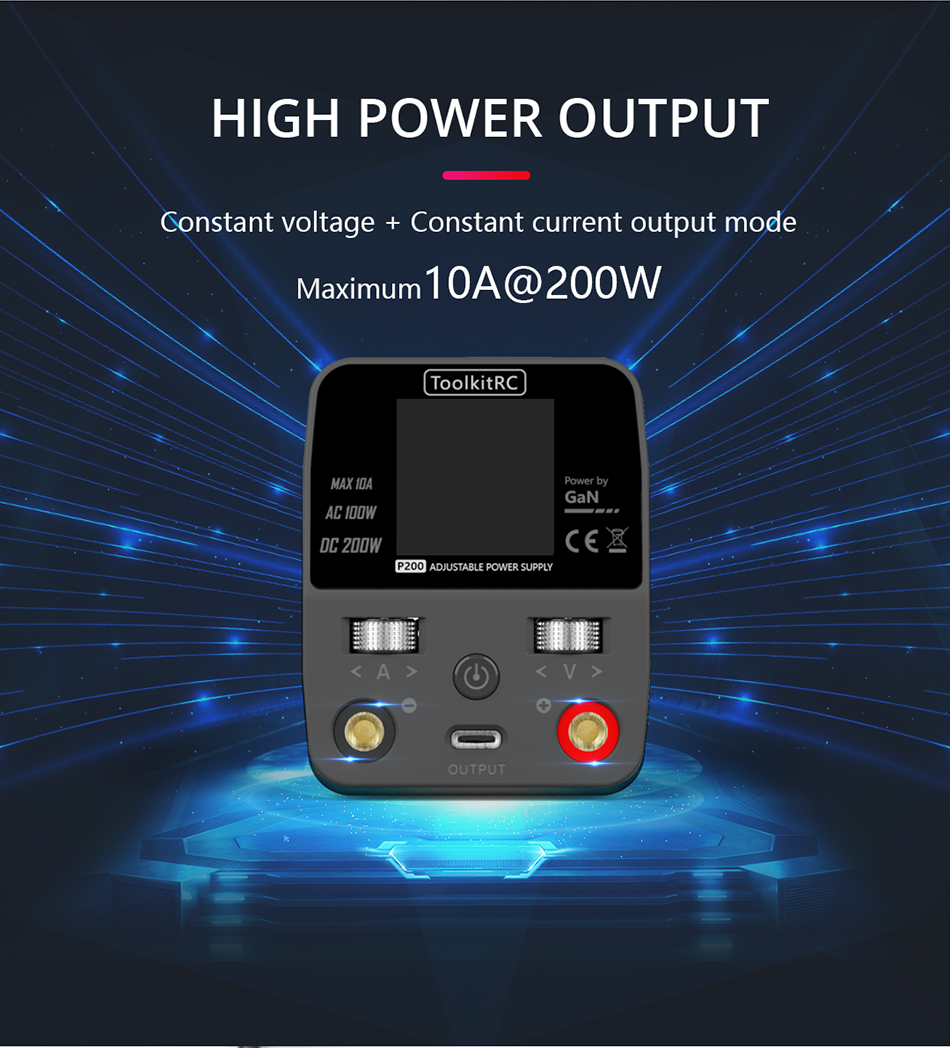

- Main output: 1.0 - 10.0A at Max AC 100W/DC 200W; 1.0 - 30.0V at Max AC 100W/DC 200W

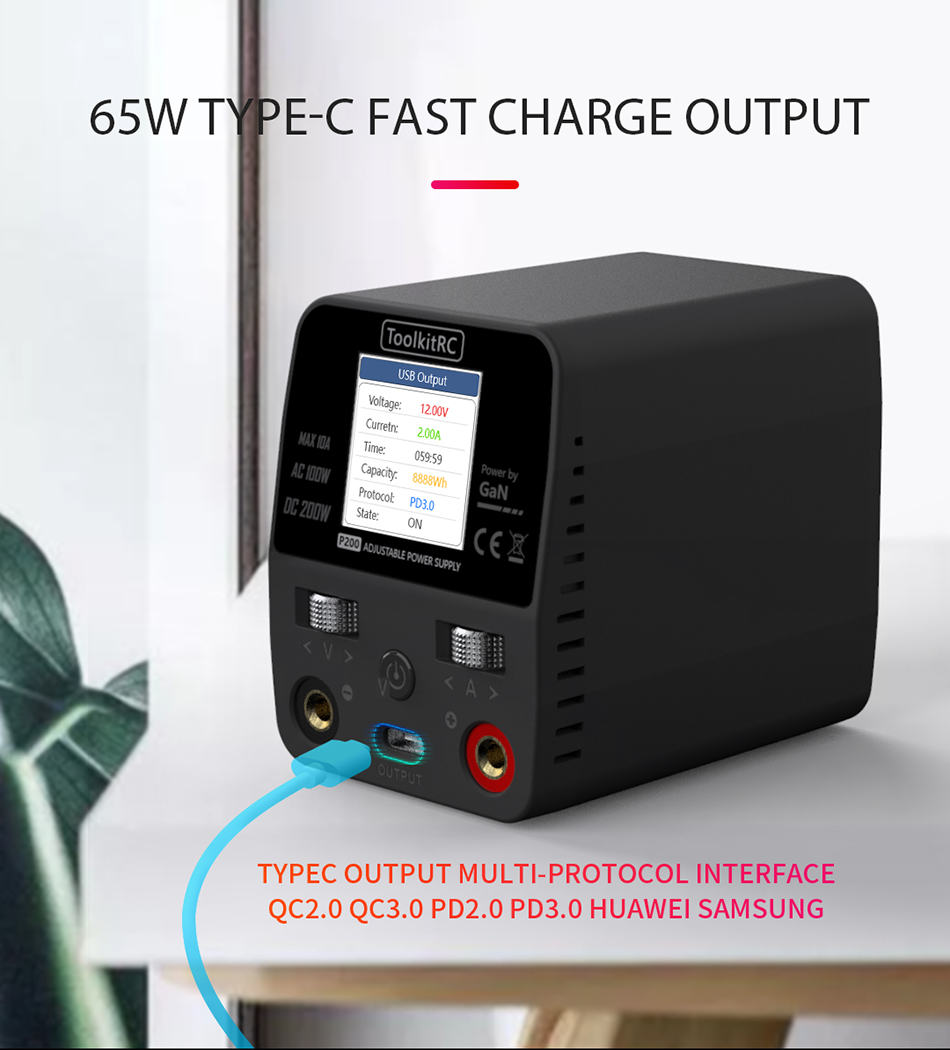

- Type-C output: 5.0 - 20.0V at Max 65W
- Type-C protocol: PD3.0/PD2.0/PPS/QC4/QC3.0/QC2.0/AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC
- Protection response: < 1ms (short-circuit, over-current, over-voltage)
- Adjustment cycle: 8ms
- Main port: 4.0mm banana female connector
- USB: Type-C fast charging, firmware upgrading

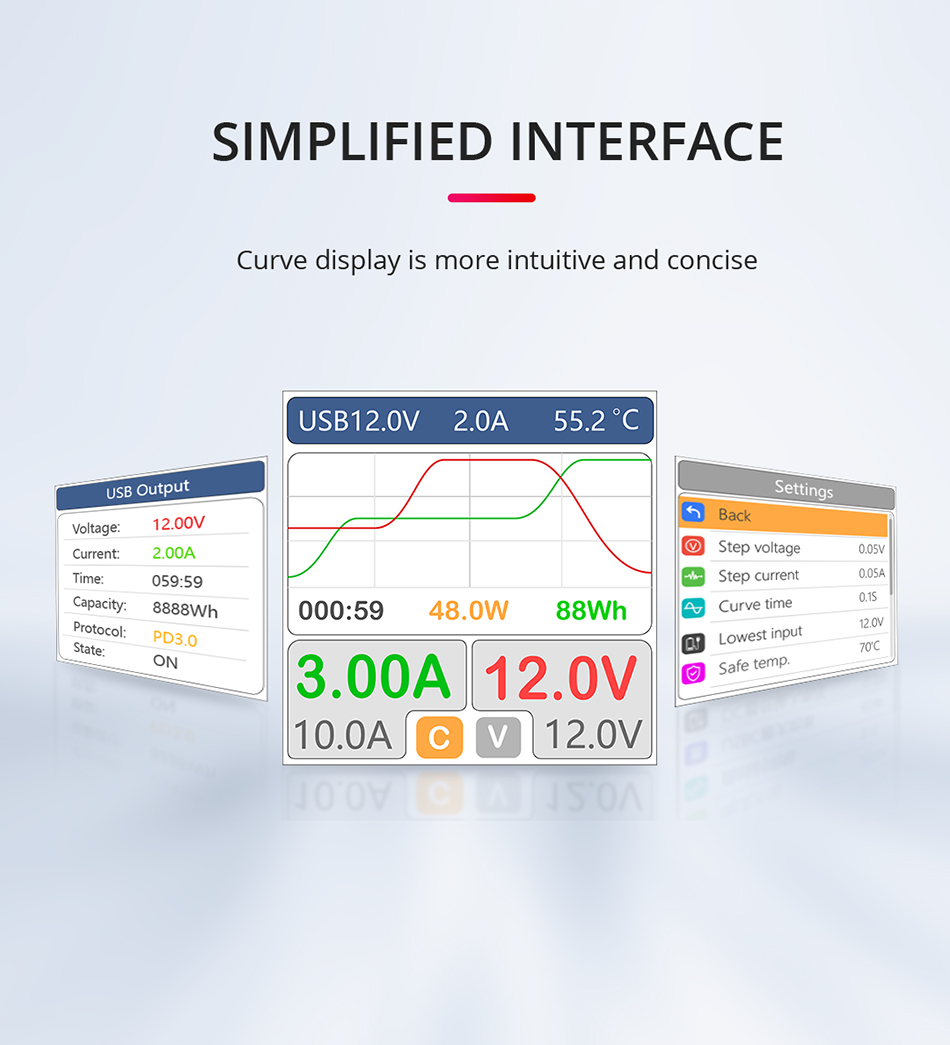

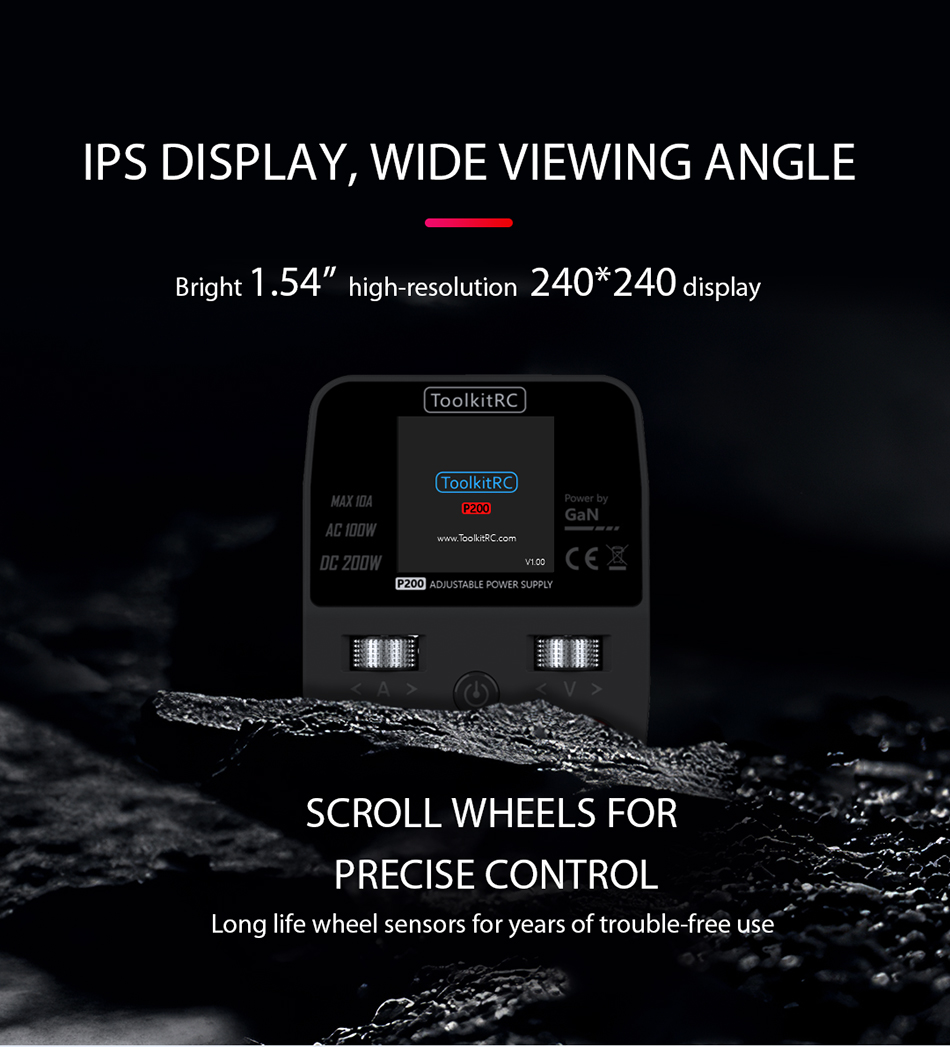

- LCD: IPS 1.54” 240 x 240resolution
- Size: 84 x 63 x 78mm
- Weight: 360g

Package Included:
- 1 x Adjustable Power Supply
