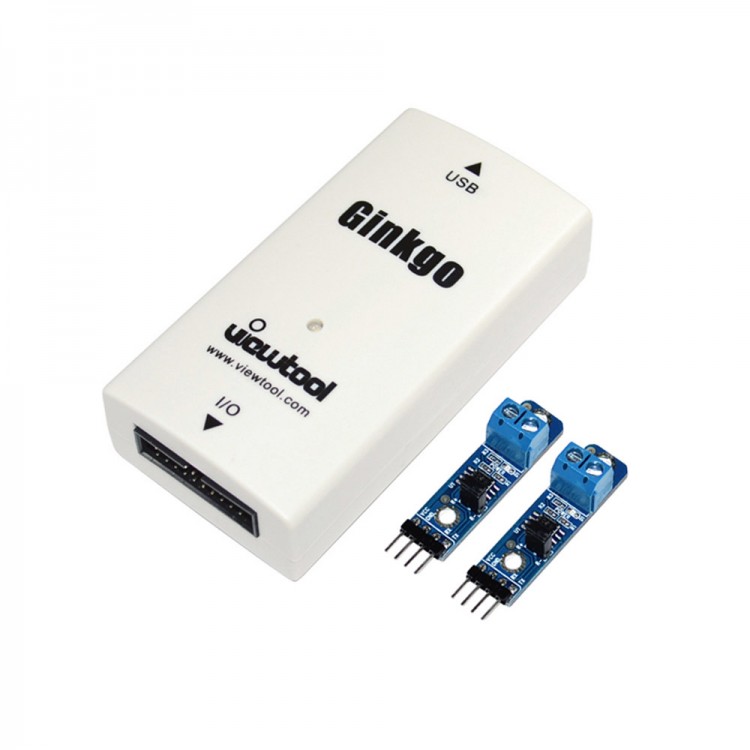

Description:
What you buy is not just an adapter, but there are numerous software, application examples, and completely open underlying interfaces, to help you create a series of exclusive test tools based on that for ViewTool!

Multiple sets of software are provided by original producer to meet different needs, and you can also join official forum for ViewTool to learn and communication.

Typical Applications:
- Realize the sending and receiving of CAN bus network through USB interface
- CAN network data collection and data analysis
- USB interface to CAN network interface
- CAN program debugging, extend the distance of CAN bus network communication
- Industrial field CAN network data monitoring
- Analog voltage measurement, GPIO input and output control
- PWM signal output
- USB to dual serial port/TTL (compatible with RS485 bus mode)

Features:
- Support system for Linux, MAC OS, Windows, Android, support for Raspberry Pi, support protocol for Linux SocketCAN;
- USB bus power supply, no external power supply required. 5V and 3.3V power output, current up to 500mA, with short circuit protection;
- Support CAN protocol 2.0A and 2.0B, 2-channel CAN bus;
- Up to 14 filter settings per channel, including 1200 frames of data buffer;
- Statistics on CAN bus transmission and reception errors, real-time display of the types of errors occurred on CAN bus;
- Multiple sets of free upper computer software to meet users' various needs and seamlessly connect with platform for LabviEW;
- Support 4 working modes (normal mode, loopback mode, silent mode, loopback silent mode), and self-test on the adapter;
- Same PC can be connected to multiple CAN adapters to work at the same time (up to 100pcs can be supported);
- Users can upgrade software for free, and the same hardware can achieve different functions through software update (such as CAN adapter update to I2C/SPI adapter or USB-USART, etc.);
- Fully open underlying interface functions, secondary development, provide detailed function description documents and secondary development application templates, routines and documents for application examples of various language platforms (For Labview, C#, VC++, Qt, Python, Labwindows /CVI, C++ Builder, VB, VB.NET, Delphi, LabView).
- Driver has passed digital signature certification for Microsoft, and systems for Win8 and above can be used normally without disabling the digital signature.

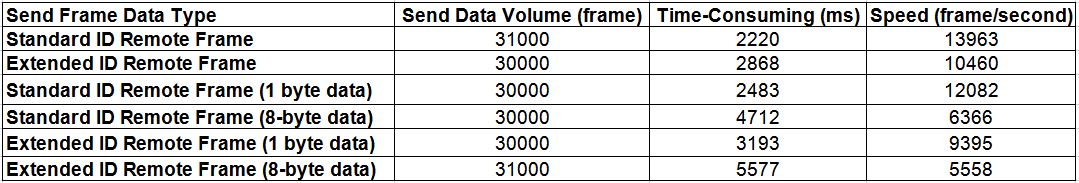

Data Sending Speed:


Performance Parameters:
- USB bus power supply, USB2.0 communication interface;
- The maximum transmission rate can reach 1Mbps, the minimum transmission rate can reach 2Kbps, and the baud rate range is adjustable from 2K to 1M;
- 8 ADC (12bit) analog voltage signal (0～3.3V) measurement, sampling rate up to 1MHz;
- 16 GPIO, can be configured as input and output pins, all pins are compatible with TTL level;
- 4 pulse counter input channels, which can count the rising and falling edges of pulses;
- 2 UART, can output RS485 bus control signal (DE), baud rate can reach 2.25Mbps;
- 8 PWM signal output, adjustable output duty cycle (0%～100%), adjustable output frequency (1Hz～20MHz);
- 16 bus signal output for EasyScale, which can adjust the bus timing;
- 2 bus output for SDI12 (requires an external transceiver), there are special command sending and receiving functions for SDI12;
- Safety voltage range: 0～5V;
- Hardware part size: 103mm x 53mm x 28mm, hardware part weight: about 200g;
- Operating temperature range: -40℃ to 85℃.

Software:
* USB-CAN Classic: The general software of USB-CAN bus adapter can configure the relevant parameters of CAN adapter, realize reading and writing control of PC to CAN device.
* CAN Baud Rate Calculation Software: STM32 baud rate calculation software can automatically calculate baud rate setting combination that meets the requirements based on APB clock, CAN bus baud rate, sampling point, error range and other settings.
* USB-CAN Baud Rate Detection Software: Dedicated and convenient detection of CAN bus baud rate.
* For ZLG_CAN_PRO: Fully compatible with software for ZLG's CAN_PRO.
* For ZLG_CAN_test: Fully compatible with software for ZLG's CAN_test.
* BootLoader: This software can be used to upgrade or replace the adapter's firmware. At the same time, users can write their own key and check this key in their own applications to achieve an encryption function for their own designed products (Secondary development).

Application Examples with Fully Open Source Code:
USB-CAN Bootloader application example, upgrade the device firmware on CAN bus.

Attention:
The source code of all application examples is completely open. In addition to the application examples listed above, the official website and official forum also have a large number of application examples in various language platforms. Users are welcome to download and exchange!

Interface Functions:

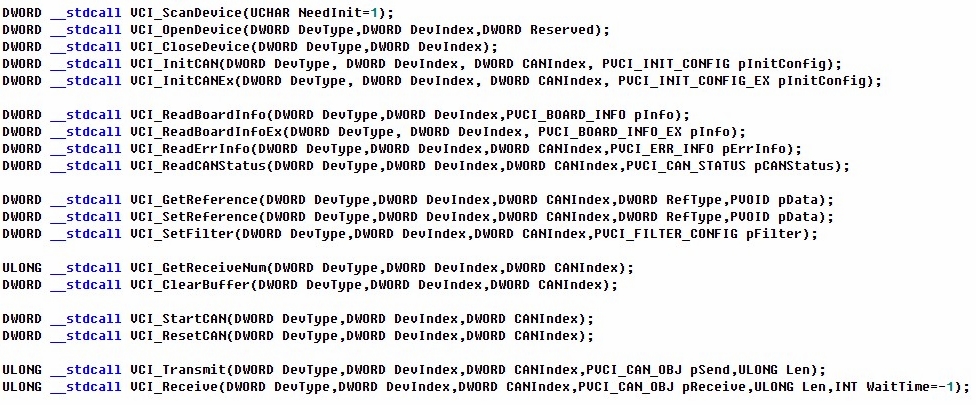

1. CAN bus interface function.

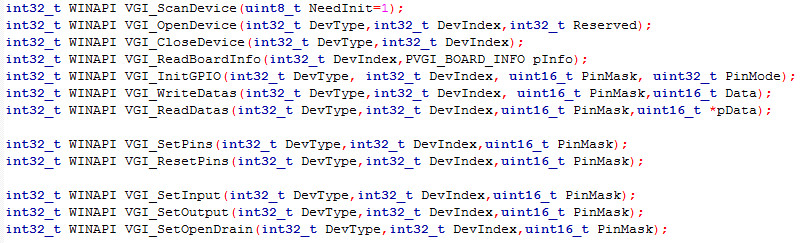

2. GPIO operation interface function.

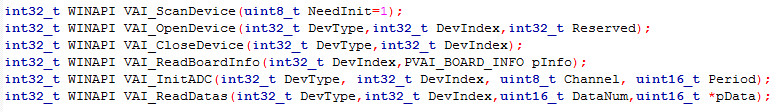

3. ADC operation interface function.

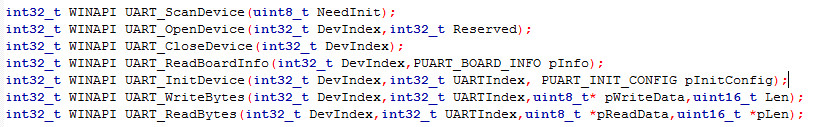

4. UART operation interface function.

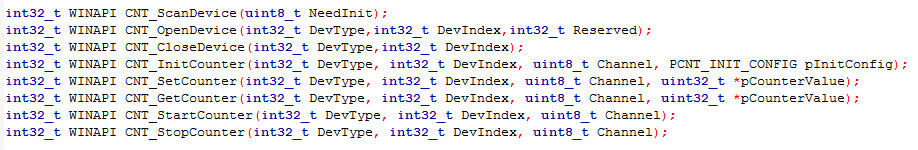

5. Pulse counter interface function.

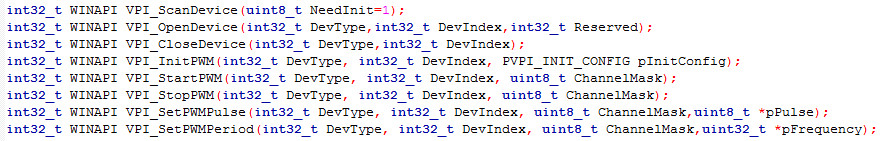

6. PWM output control interface function.

7. For SDI12 bus control interface function.


Support Systems:
- For Windows XP, Windows 7, Windows 8, Windows Vista, Windows 2000, Windows Server.
- For Linux, Android.
- For MacOS/Darwin, NetBSD, OpenBSD, FreeBSD, Solaris.

Package Included:
- 1 x USB-CAN Bus Adapter
- 2 x CAN Communication Module
- 1 x USB Data Cable
- 20 x For Dupont Lines
- 10 x High Precision Test Clips
- 1 x Quick Guide
