Description:
What you buy is not just an adapter, but there are numerous software, application examples, and completely open underlying interfaces, to help you create a series of exclusive test tools based on that for ViewTool!

Multiple sets of software are provided by original producer to meet different needs, and you can also join official forum for ViewTool to learn and communication.

Typical Applications:
- CAN bus network data sending and receiving via USB port of PC
- CAN network data monitoring in industrial site
- Automotive CAN bus application
- CAN network diagnosis and test
- CAN network data acquisition and analysis
- CAN bus to USB gateway, extending the communication distance of CAN bus network
- USB to CAN network interface

Features:
- Support system for Linux, MAC OS, Windows, Android. Support for Raspberry Pi, support protocol for Linux SocketCAN;
- Dual channel, transparent transmission, support relay, unlimited upgrade, 2500 VRMS isolation, 8kV electrostatic protection;
- Support for CANopen, SAE J1939, DeviceNET, iCAN and other high-level protocol analysis, and support user-defined protocol analysis;
- Dual-channel transmission speed can reach more than 8000 frames/s at the same time, and never lose frames when receiving;
- Adopt 32-bit high-performance 120M frequency processor for ARM, support true full-speed USB transmission, 128K SRAM can buffer 5000 frames of CAN data;
- Using electromagnetic isolation technology, high integration, higher reliability;
- Provide multiple sets of free PC software to meet users' various needs;
- Support for advanced IAP technology, users can upgrade for free, update firmware and software;
- The same PC can be connected to multiple USB-CAN interface adapters to work at the same time (supports 100pcs);
- Support the latest version (V1.46) of analyzer for ZLG CANalyst-II and protocol analysis platform for CANpro, to realize the analysis of high-level protocol data;
- Users can update and upgrade software for free;
- Fully open underlying interface functions, secondary development, provide detailed function description documents and secondary development application templates, routines and documents for application examples of various language platforms (For Labview, C#, VC++, Qt, Python, Labwindows /CVI, C++ Builder, VB, VB.NET, Delphi, LabView).
- Driver has passed digital signature certification for Microsoft, and systems for Win8 and above can be used normally without disabling the digital signature.

As Relay:
- Extend data transmission distance.
- Realize signal isolation.
- Connect CAN repeater to CAN network, and analyze CAN network's transceiver status without disconnecting the CAN network to facilitate protocol analysis.
- Relay: Realize real-time high-speed exchange of data from two CAN channels at the same or different baud rates. CAN 1 relay to CAN 2, CAN 2 relay to CAN 1, and CAN 1 and CAN 2 bidirectional relays can be configured by software.
- Transparent Transmission: In relay state, through PC software, the data of two channels can be monitored in real time, and the data can be sent to the two-channel bus at the same time.

Performance Parameters:
- Power supply mode: USB interface power supply
- Number of channels: 2 channels
- Support USB protocol: USB2.0, compatible with USB1.1
- CAN protocol version: CAN2.0A, CAN2.0B
- Terminal resistance: 120Ω terminal resistance per channel selective access
- Isolation voltage: bus 2500 VRMS isolation, power supply 3000 VRMS isolation
- Bus fault protection voltage: -27V to 40V
- Interface electrostatic protection voltage: Air-15kV, Contact-8kV
- Support baud rate: 20 standard baud rates ranging from 20Kbps to 1Mbps are optional, and the baud rate can be customized
- Data transmission speed: higher than 8000 frames per second (standard ID data frames, 8 bytes of data)
- Data receiving speed: dual-channel simultaneous reception without frame loss
- Receiving buffer size: 1800 frame buffer per channel
- Relay mode: CAN1 to CAN2, CAN2 to CAN1, CAN1 and CAN2 two-way relay
- Software protocol analysis: For CANopen, DeviceNet, J1939, iCAN, and custom protocols
- Support system: For Linux, MAC OS, Windows, Android
- Secondary development: provide the underlying interface function library, including instructions and documents
- Loop delay time: 150ns (typical value)
- Working temperature: -40℃ to 85℃

Software:
- USB-CAN Classic: The basic control software of USB-CAN, which can realize the initial configuration of the device, filter settings, and other software settings. It features intuitive display.
- USB-CAN Extend: USB-CAN extended control software. The software can initialize the adapter, configure CAN filter, set software display mode, etc. The software integrates simple operation and convenient display.
- For USB-CAN AutoBaudRate: Automatically detect the baud rate on CAN bus.
- STM32 CAN Baud Rate Calculator: A small software for calculating CAN bus baud rate parameters of STM32 MCU.
- For ZLG_CANPRO: It can analyze commonly used CAN bus protocols.
- For ZLG_CANtest: CAN data sending and receiving display software.

Attention:
The source code of all application examples is completely open. In addition to the application examples listed above, the official website and official forum also have a large number of application examples in various language platforms. Users are welcome to download and exchange!

Interface Function:
CAN bus interface function.


Support Systems:
- For Windows XP, Windows 7, Windows 8, Windows Vista, Windows 2000, Windows Server
- For Linux, Android
- For MacOS/Darwin, NetBSD, OpenBSD, FreeBSD, Solaris

Package Included:

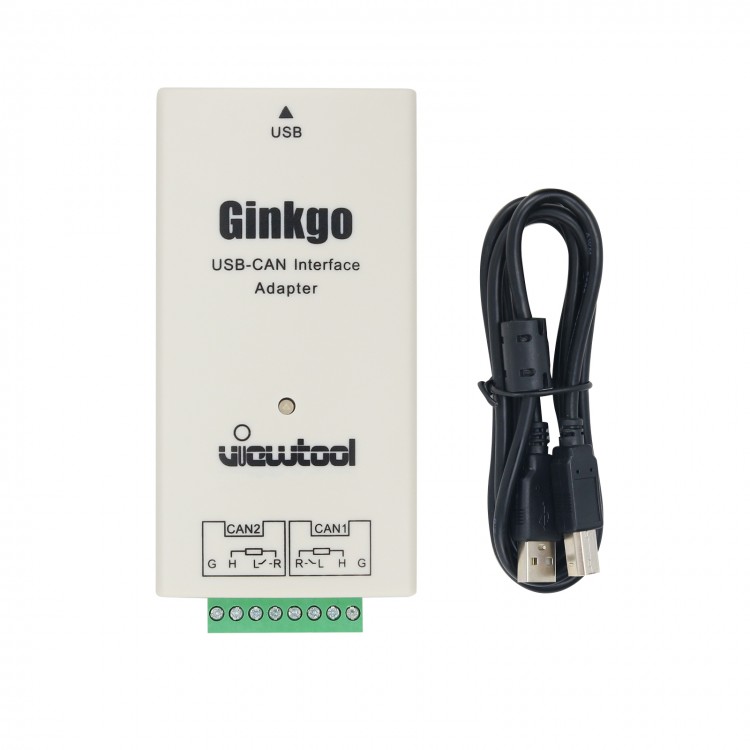

- 1 x USB-CAN Interface Adapter
- 1 x USB Data Cable
- 1 x Quick Guide
