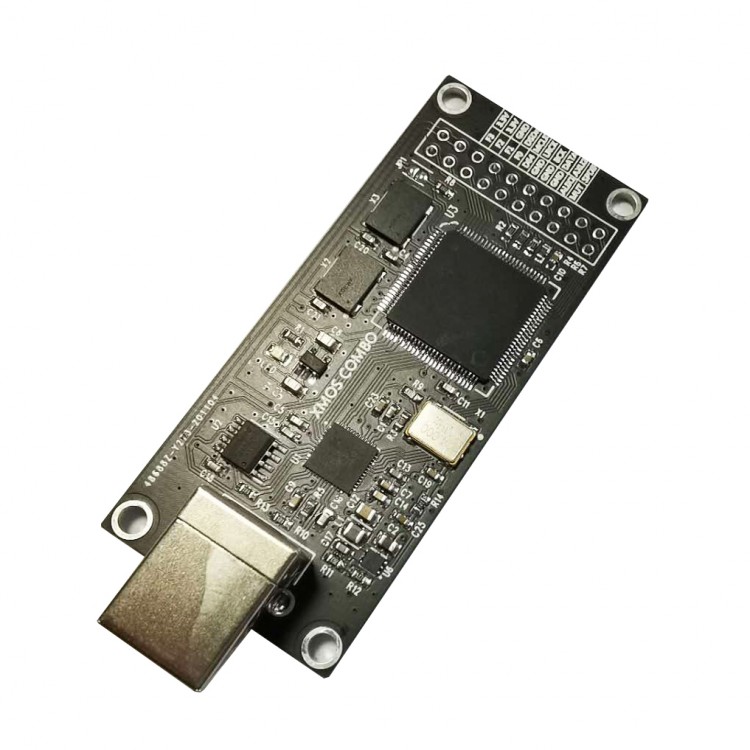

For XMOS-XU208 USB Digital Interface USB Asynchronous Daughter Card USB to I2S DSD256 + CPLD Black

For XMOS-XU208 USB Digital Interface USB Asynchronous Daughter Card USB to I2S DSD256 + CPLD Black

Design Features:
1. Adopt 4-layer circuit board design.
2. Thicken CNC immersion gold process design, not an ordinary PCB.
3. A large number of 0402 patch accessories for Samsung are used, and small size is not the point! The focus is on improving anti-interference and stability by one level.
4. Using MCU optimization control scheme, complete optimization of USB data chip, better signal integrity, and less signal distortion.
5. Original external 3.3V power supply interface, you only need to connect 3.3V, the system will automatically switch to external power supply and cut off USB power supply! Improve playability.

Driver:
https://pan.baidu.com/s/1dEX6BYD

Output Indicators:
USB input and power supply! Optional external power supply, I2S output, DSD output (If you need SPDIF output, please contact us before purchasing).

Attention:
This interface does not need to install the driver under the system for MAC. Under the system for Windows, you need to follow the special driver. Please ask customer service for the driver or download in the link above. You can also request a DSD audio file for trial listening. Its size is compatible with Italian modules.

Sampling Rate Supported by Output Interfaces:
- PCM: 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz [I2S out supports all sampling rates, and S/PDIF supports up to 192KHz]
- DSD: 2.8MHz (DSD64)-DoP, native; 5.6 MHz (DSD128)-DoP, native; 11.2 MHz (DSD256)-DoP, native [I2S out supports all DSD formats, and S/PDIF supports DSD64 DOP mode].
- For Windows 7, Windows 8, Windows 10; 32/64 bit, need to install special driver

XU208 Chip:
- XU208 is the second-generation chip for XMOS. It boasts twice the memory of U8, and its computing speed reaches an amazing 1000MIPS, two times higher than U8's 500MIPS.
- Brand new original XU208-128-TQ64-C10 IC used
- With 1083 power-on sequence start circuit, higher reliability
- Power supply circuit: use independent alloy 3.3 for XMOS, 1V power supply adopts ultra-low noise LDO design, and multi-level capacitors are connected in parallel. XU208 as the core processing USB to IIS/DSD



Function & Use:
The USB interface supports SACD DSD, DTS data stream playback.

Precautions:
The circuit board is precise, in order to prevent static electricity, please do anti-static treatment. All of our shipments use anti-static packaging, each board has past tests before delivery.

Package Included:
- 1 x USB Digital Interface
