FOSTTEK-EMC-100T 100KHz-5.3GHz EMC Receiver Spectrum Analyzer Signal Generator + EMC Near-field Probe + Amplifier

FOSTTEK-EMC-100T 100KHz-5.3GHz EMC Receiver Spectrum Analyzer Signal Generator + EMC Near-field Probe + Amplifier

Description:
The FOSTTEK-EMC-100T EMC test kit can be used to test EMC (EMI and EMS) conducted radiation and immunity. The test kit contains 5 professional EMC probes, 1 amplifier, 1 EMC receiver (with signal generator and spectrum analyzer functions) and other accessories. It supports a frequency range of 100KHz-5.3GHz. It can be connected to a computer for real-time synchronization.

The complete set of equipment can meet the needs of internal preliminary assessments, pre-tests, and rectification of EMC conducted radiation, anti-interference, and other EMC (EMI and EMS) issues within companies.

3-In-1 EMC Receiver
* It includes EMC receiver + spectrum analyzer + signal generator functions.
* The test range is 100KHz-5.3GHz.
* It is designed with a 4-inch touch screen.
* Users can freely set the test bandwidth. It also supports single-frequency testing to meet the full range of EMC (EMI and EMS) radiation and conduction tests from 100KHz to 5.3GHz.
* We provide the host computer software. Users can connect it to the computer via USB for real-time control! Its performance is completely consistent with the desktop EMC receiver.
* The EMC receiver meets the international EMC (EMI and EMS) testing standards (such as EN55032 and EN55035). It can be applied to testing wireless devices such as intercoms, toy car remote controls, 100kHz-5.3GHz wireless signals, wireless microphones, as well as signal testing for communication devices like WIFI, Bluetooth and base stations.

Probe Set (5pcs in Total)
* P1, P2, and P3 are magnetic field probes, totaling 3 pieces.
* P4 and P5 are electric field probes, totaling 2 pieces.
* The test range is 0-20GHz.

Probe Description
* P1: It has ultra-high sensitivity and is particularly suitable for EMC comprehensive (including conduction and radiation) testing outside the chassis of large objects such as new energy vehicles and medical devices.
* P2: Used for wide-range EMC radiation testing of PCBA (Printed Circuit Board Assembly).
* P3: Used for small-range EMC radiation testing of individual circuit units.
* P4: Used for component-level EMC leakage testing.
* P5: Precisely locates EMC leakage points (e.g., component pins) within a 1mm range.

Probe Connector
* The SMB and SMA connectors are interchangeable. By unscrewing the SMB connector (with inner pin), it instantly transforms into an SMA (female) connector. This design makes it easier to plug and unplug the probe, as well as replace the connector. It also provides better protection for the probe's SMA connector.
* At the same time, it caters to users' preference for SMA connectors, significantly enhancing the product's compatibility.

FST-RFAMP03 Amplifier
* The FST-RFAMP03 is a DC-6.5GHz professional EMC intelligent noise reduction amplifier.
* It features a 20dB gain.
* The amplifier has an aluminum alloy housing. It has multiple protection functions, as well as port impedance adaptation and strong signal limiting functions. It is sturdy and durable.
* Users can plug and unplug the probes under power without repeatedly turning it on or off. This greatly improves test efficiency.
* It improves the test signal-to-noise ratio and sensitivity to reduce environmental impacts. It is particularly suitable for test environments without shielded rooms or shielded enclosures.

Long Battery Life
* Powerful endurance, lasting without interruption.
* With a built-in 3000mAh lithium battery, it provides approximately 4 hours of continuous use.

Latest Upgraded Features
* The USB drive contains the upper-level software for connecting to the computer, along with the relevant operation manual. It supports real-time control via the computer, meaning it can read data. Users can perform real-time control using the computer.
* It supports a maximum value hold function, bandwidth settings, and customizable MARK.
* After installing the software, connect the EMC receiver to the computer for real-time control and download relevant test data and curves. Its convenience is just like using a large-screen spectrum analyzer! Use your mouse to easily click on peak values, or the system supports automatic maximum value Mark tracking.

Maximum Value Hold Function
* The system automatically holds the maximum value tested, allowing instantaneous signals that cannot be collected by the eye to be automatically held at the maximum value.

Carry Case
* The case is high-end and exquisite.
* A reasonable structure makes it easy to carry and convenient for consumers to use EMC test tools!

More Advantages
* Small and portable
* Multiple functions
* 3-year warranty
* Provides USB drive instructional materials
* 100KHz-5.3GHz spectrum test range
* Includes 100KHz-5.3GHz high frequency signal generator. Adjustable frequency and power
* RBW and VBW 200Hz-850KHz adjustable
* Built-in LNA and attenuator, and phase noise as low as -92dBc at 10KHz. DANL as low as -166dBm/Hz
* Built-in 3000mAh rechargeable lithium battery for more convenient use outside
* Supports Micro SD card for storage
* Supports connection to PC for real-time synchronous control (upgrade function) and data and picture transfer to computer for storage
* Ultra-low noise floor (less than -110dBm) and fast scanning speed make it more suitable for professional EMC testing.

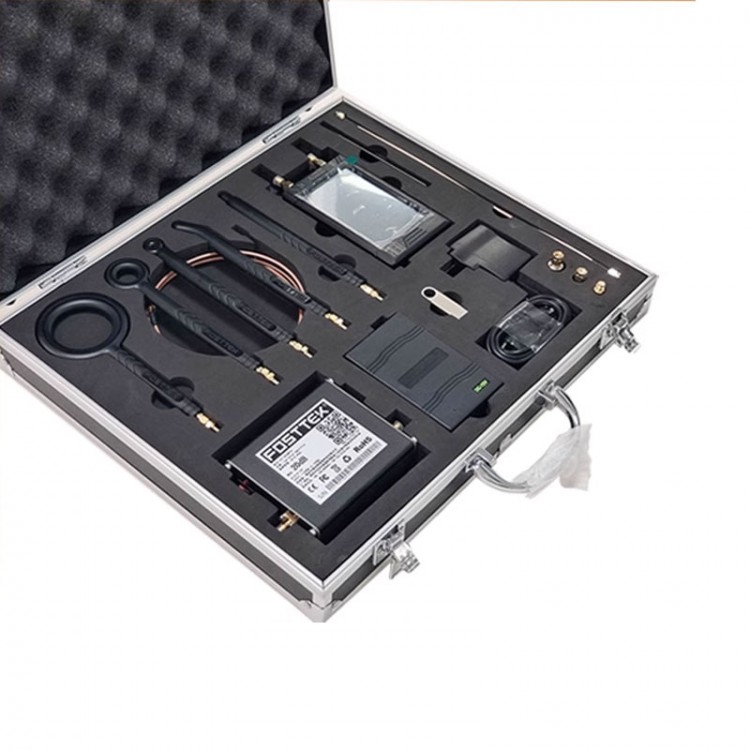

Package Included:
* 1 x EMC receiver
* 1 x NFP-ONE probe set (5 pieces in total)
* 1 x FST-RFAMP03 amplifier
* 1 x SMA-SMA cable
* 1 x SMA-SMB cable
* 5 x SMA to SMB adapters
* 1 x SMA female-SMA female connector
* 1 x SMA male to SMA male connector
* 1 x SMA female to BNC female connector
* 1 x Carry box

Packaging Details:
* Weight: 2.2kg
