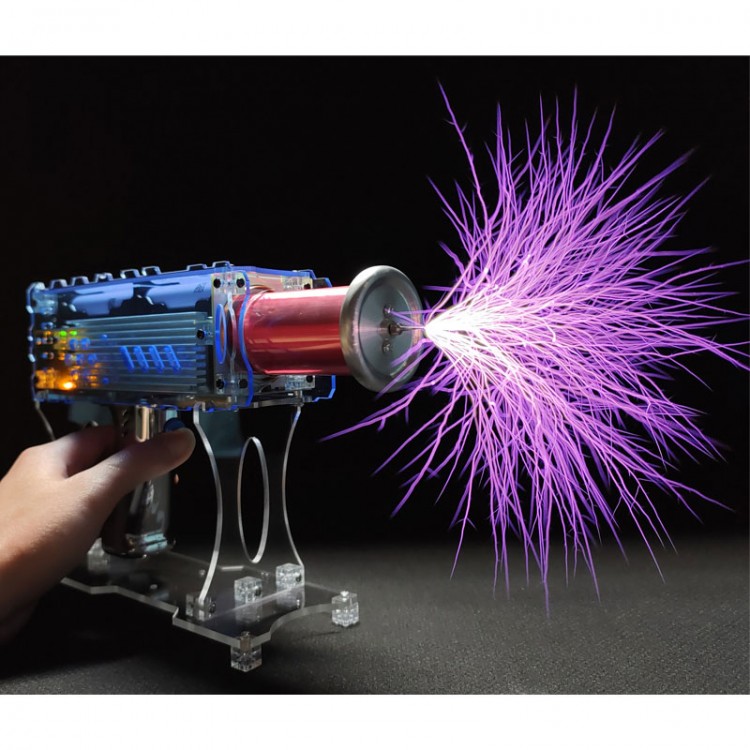

Fourth Generation 2200mAH Handheld Tesla Coil Punk Tech Style Decoration 10CM Artificial Arc Support Voltage Display

Fourth Generation 2200mAH Handheld Tesla Coil Punk Tech Style Decoration 10CM Artificial Arc Support Voltage Display

Features:
- Light blue acrylic shell, full of sci-fi feel, with 10CM arc length and adjustable arc shape.

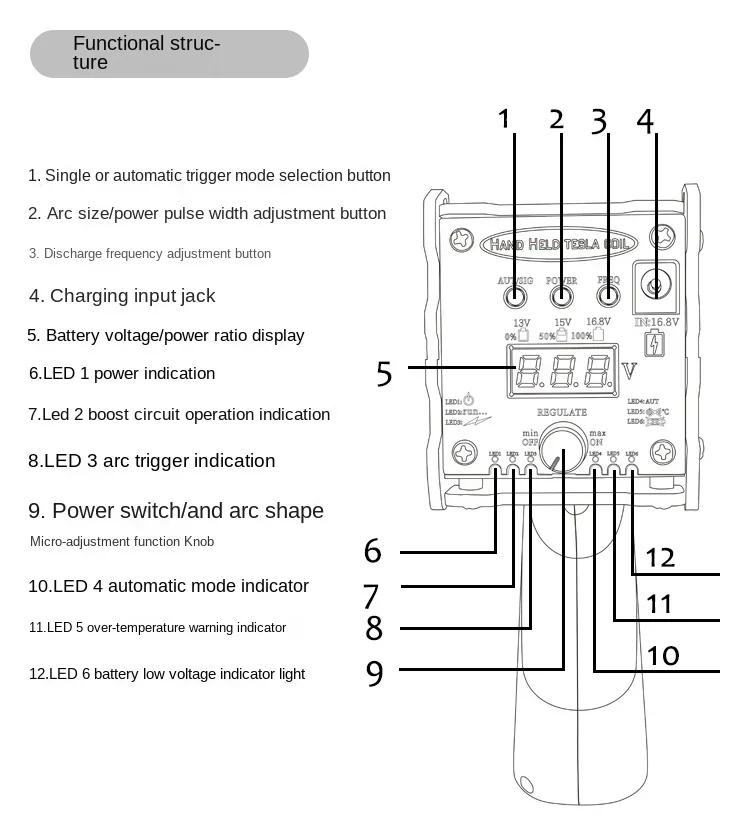

- Simple control panel, providing intelligent operation and precise control.
- Digital voltmeter, real-time display of battery level.
- Built-in microcontroller, support low voltage and temperature protection, automatic program control, and more comprehensive circuit protection.
- The specially designed chrome plated handle has a smooth and rounded surface, providing a comfortable grip.
- Surface electroplated metal layer, wear-resistant, corrosion-resistant, and more durable.
- Compared to the third-generation conductive metal tape, the fourth generation version of the conductive metal coating has better conductivity, and there will be no more arc burning caused by poor grounding of the handle.
- Built-in 4 detachable 18650 lithium batteries. Users can configure and replace according to their own needs.
- The components are made of high-quality materials, the circuits are carefully debugged, and the design is simple and beautiful.
- Double layer circuit board, modular design, power supply and power motherboard do not interfere with each other.

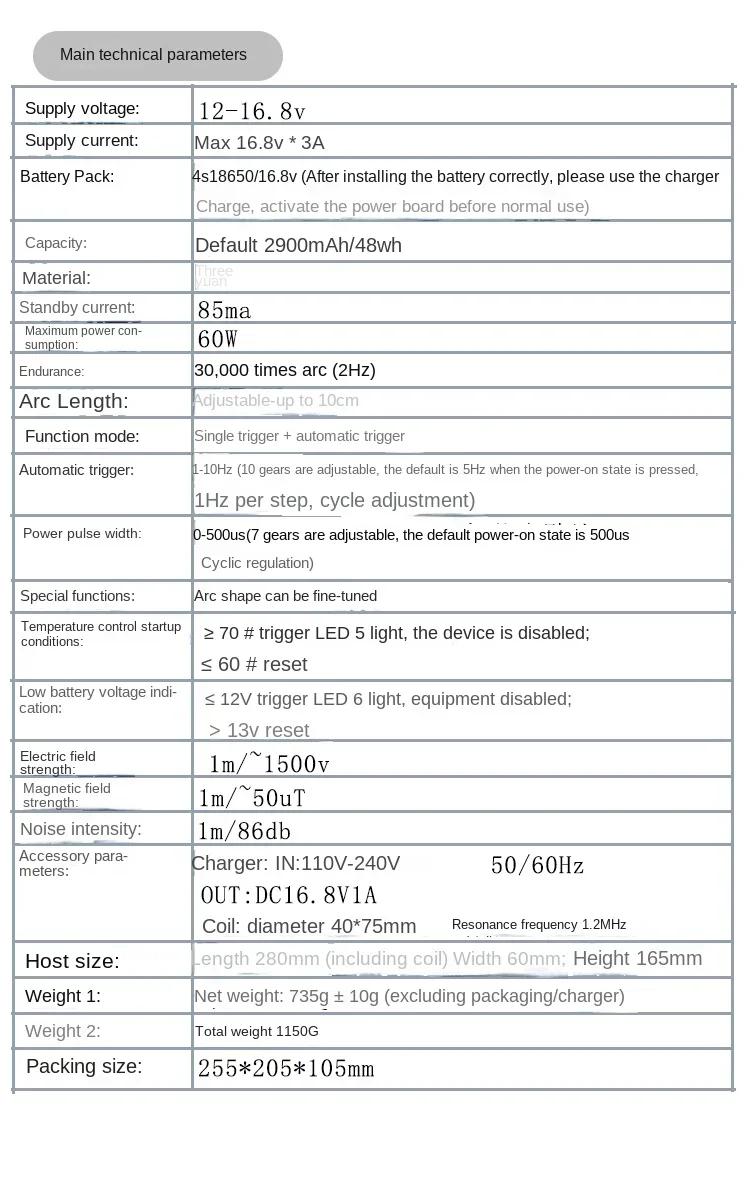

Specification:
- Power supply: 12 - 16.8V
- Power supply current: maximum 16.8V*3A
- Battery pack: 4S 18650/16.8V (After installing the battery correctly, please use the charger, please activate the power board before normal use.)
- Capacity: 2900mAH/2200mAH (optional)
- Standby current: 85mA
- Maximum power consumption: 60W
- Duration: 30000 times arc (2Hz)
- Arc length: adjustable (maximum 10cm)
- Function mode: single trigger + automatic trigger
- Automatic trigger: 1 - 10Hz (10 gears adjustable, default 5Hz when press in power-on status, 1Hz step each time, cycle adjustment.)
- Power pulse width: 0 - 500us (7 gears adjustable, default 500us in power-on status, cycle adjustment)
- Special function: the arc shape can be fine tuned.
- Temperature control startup conditions: ≥70℃, LED5 lights up, and the device is disabled; ≤60℃, reset.
- Battery low voltage indication: ≤12V, LED6 lights up, and the device is disabled; >13V, reset.
- Electric field intensity: 1m/~1500V
- Magnet field intensity: 1m/~50uT
- Noise intensity: 1m/86dB
- Charger IN: 110V - 240V, 50/60Hz
- Charger OUT: DC16.8V 1A
- Coil: 40 (diameter) x 75mm
- Resonant frequency: 1.2MHz
- Product size: 280 (including coil length) x 60 x 165mm
- Net weight: 735g±10g (excluding package/charger)
- Total weight: 1150g
- Packaging size: 255 x 205 x 105mm

Package Included:
- 1 x Handle Unit
- 1 x Coil
- 1 x 110V-240V Universal 16.8V Charger
- 1 x User Manual

Precaution:
- When this device is in operation, it will generate certain magnetic and electric field interference. People who implant or wear precision medical devices in their bodies are not allowed to use or approach the working equipment.
- This device will generate a high-voltage electric field, which can easily break down the electronic components of precision instruments. It should not be used in where precision instruments are placed or in computer rooms, otherwise it may cause the precision instruments to malfunction or be damaged.
- The arc generated by this device has a certain high temperature and can ignite some flammable and explosive materials. Do not use this device in places where flammable and explosive materials are placed or in storage warehouses.
- The arc generated by the device is an overclocking arc with a frequency of up to MHz, which has a very obvious high-frequency current skin effect. Therefore, the arc generated can be touched. When touched, only a slight tingling sensation will be felt, but there will still be a weak pain. During use, consent from others should be obtained before allowing them to touch.
- This device is mainly used for demonstrating artificial arcs, teaching demonstrations, or as a science fiction model ornament, and must not be used for other purposes.
- This device will not be able to be used during the charging process. Please use the original charger for charging and charge the device under supervision.
- The device is powered by lithium batteries and should not be discarded or placed in high temperatures. For more information on the use and precautions of lithium batteries, please search for or refer to relevant materials.
- The product is suitable for young people aged 12 and above.
- Please refer to and follow the instructions before use.
- Electric arcs have high temperatures, and it is strictly prohibited to approach flammable and explosive materials.
- During product operation, there is interference from strong magnetic and electric fields. High voltage arc, do not allow the arc to directly hit electronic devices.
