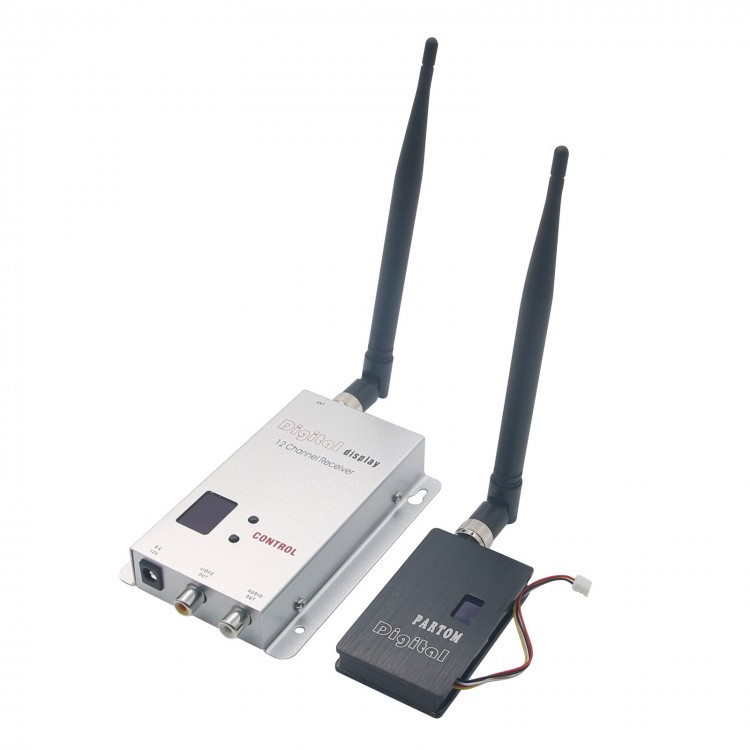

Fox-215B 1.5W 1.2G FPV Transmitte​r Receiver 1.5W Kit for RC Aircaft Multirotor Helicopte

Fox-215B 1.5W 1.2G FPV Transmitte​r Receiver 1.5W Kit for RC Aircaft Multirotor Helicopte

Product Description:
- This 1.2G transmitter will transmit a video and audio signal to the receiver that connects to the AV input jack on your VCR, TV, or computer.This transmitter/receiver can transmit video and audio.
- The transmitter and receiver are both 12V DC operation.8-channel transmitte​r receiver Kit.

Transmitter Parameter:
- Mode:215B
Channel Number:8CHS
Dimension:72x44x14mm(LxWxH)
Output Frequency:1.5G
Color:black
Transmission frequency:1080/1120/1160/1200/1240/1280/1320/1360
Frequency control:digital frequency locked phase loop control,lock points.
Transmitting signal:image,sound synchronous transmission
Linear transmission distance:500~1000m
- 4-cord plug interface
- Voltage:DC+12V
- Current:500mA

The transmitter auto LED display screen.It displays frequency point after power is on.

Receiver Parameter:
- 2G wireless 12-channel receiver
- Mode:JS1200
- Receiving frequency:0.9~1.2GHz
- Receiving signal:video,image synchronous transmission
- Receiving sensitivity:-85dBm
- Video input:1 Vp-p
- Audio input:1 Vp-p
- Working temperature:-20～+50°C/-4～+122°H
- Working humidity:85%RH
- Storage temperature:-40～+80°C/-40～+185°H
- Size:115×60×20（mm）
- Weight:160g
- Voltage:DC+12V
- Current:500mA

The receiver auto LED display screen.It displays frequency point after power is on.

1.2G wireless kit using:
- Antenna install for transmitter;
- Antenna install for receiver,connect power cable and audio video cable.Connect video cable to the TV,also can connect hard disk recorder or video card;Separately press switch for transmitter and receiver,corresponding frequency point.
- The transmitter switch is beside the antenna;the receiver switch is on the shell.
- 4-core cable connects transmitter cable.
- Connecting cable connects 4-color cable:
1.Red cable connects 12V power supply.
2.Black cable connects camera gun power port.
3.Yellow cable connects camera gun video output port.

Package list:
- 1 x Transmitter
- 1 x Receiver
- 1 x Power adapter
- 2 x Video cables
- 2 x Antennas
- 2 x AV to BNC swivel joint
- 1 x User manual
- 1 x Box
