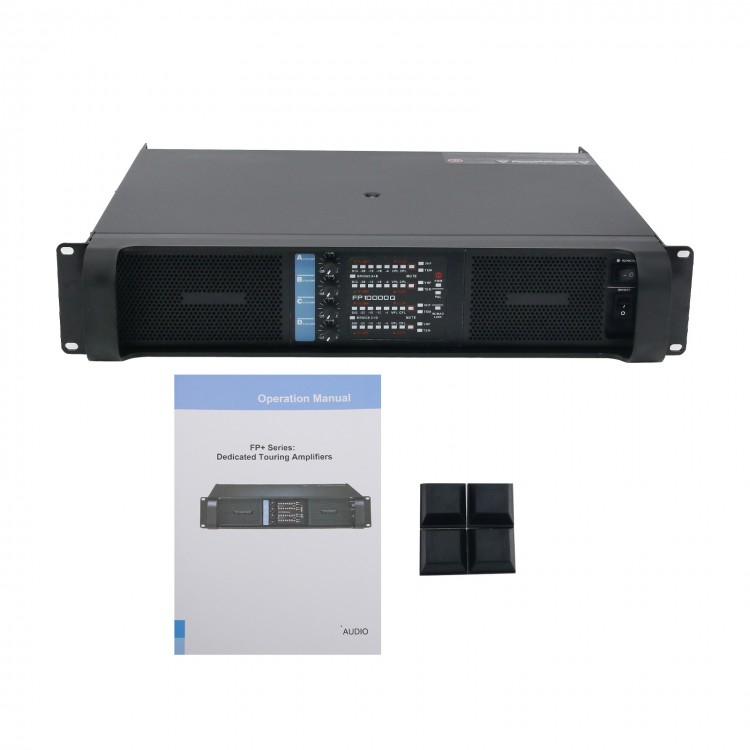

FP10000Q 4x1350W Digital Power Amplifier Power Amp 4 Channel Amplifier for Stage Bar KTV Karaoke

FP10000Q 4x1350W Digital Power Amplifier Power Amp 4 Channel Amplifier for Stage Bar KTV Karaoke

Features:
- High-power digital amplifier is designed to meet the needs of the high-end stage performance market. It can be applied to large-scale stage performances, bars, clubs, KTV, family karaoke, conferences and speeches.
- 4x1350W ultra-high power output at 8ohms.
- Next-generation TD circuit design: Professional TD circuit design and independent power supply per channel help reduce noise and distortion and achieve higher power utilization. It enables precise output of power conversion in millionths of a second.
- The power amplifier supports 2-8 ohms loads.
- Overload protection: overload and over-current protection
- With shocking output, it brings you a powerful and shocking musical feast
- 24-hour uninterrupted business operations: With output current limit, DC protection, filter protection, over-temperature protection and short circuit protection.
- Four thermostatic cooling fans (with built-in damping) ensure efficient and fast heat dissipation.
- Copper heat dissipation module helps achieve rapid heat dissipation.
- Metal panel design, fine line layout, LED light prompt and damping feel knob.
- Its handle makes it easy to transport.
- Energy reserve pool provides powerful power and sufficient energy to protect the switching power supply from damage and ensure stable output.
- 24 transistors are imported from Japan, enabling round, thorough and endearing sound.
- - VHF high-frequency filter voltage limiting function module prevents direct current
- High frequency transformer: An imported custom capacitor transformer enables faster charging and discharging, and better low-frequency effect
- Large imported filter capacitors: There are 10pcs ultra-large capacity TD class filter capacitors. The low-frequency sound is soft, the mid-frequency sound is round and full, and the high-frequency sound is clear and thorough.

Specifications:
- Model number: FP10000Q
- 8Ω output power per channel: 1350W
- 4Ω output power per channel: 2200W
- 2Ω output power per channel: 2400W
- 8Ω bridge output power per channel: 4400W
- 4Ω bridge output power per channel: 4800W
- Frequency response (1W and 8ohms) ±3dB: 6.8Hz-34.2KHz
- Total harmonic distortion at 1KHz: <0.05%
- SNR: >112dBA
- Damping coefficient: >2000
- Crosstalk: >70
- Input sensitivity: 23, 26, 29, 32, 35, 38, 41 and 44dB
- Input impedance: 20KΩ/balanced
- Output category: FTD
- Product dimensions: 483 x 396 x 88mm/19 x 15.6 x 3.5"

Package Included:
- 1 x Power Amplifier
