Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $64.61 | $63.29 | $61.31 | $58.68 | Contact US |

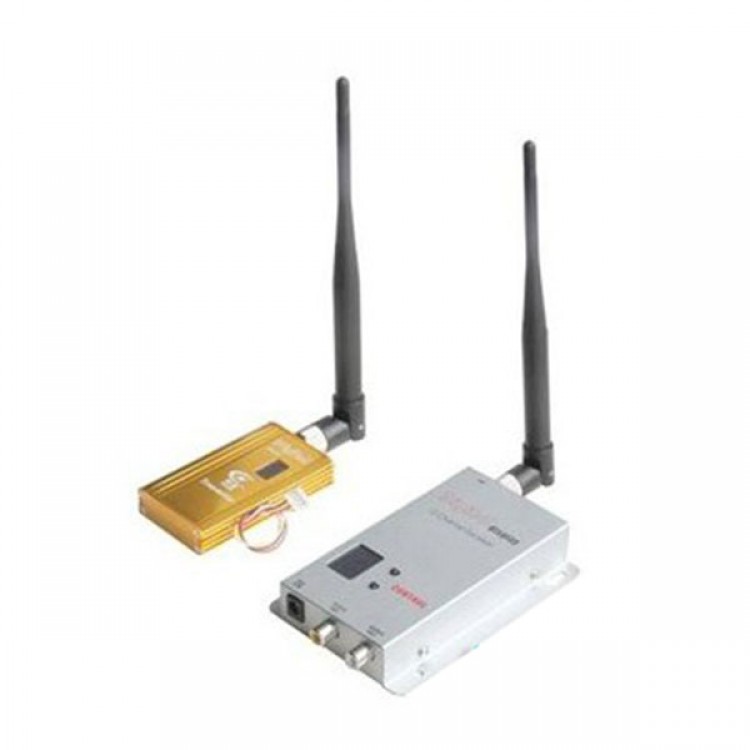

FPV 1.2G 800mW 8 Channel Wireless Audio / Video Transmitter & Receiver TX RX for FPV Photography
TX Specs:
- TX: 800MW
- TX frequency: 1080/1120/1160/1200/1240/1280/1320/1360
- Voltage: DC+12V
- Current: 500mA
RX Specs:
- RX frequency:
0.910G 0.980G 1.010G 1.040G
1.080G 1.120G 1.160G 1.200G
1.240G 1.280G 1.320G 1.360G
- RX parameters: JS1200
- Receiving sensitivity: -85dBm
- Video input level: 1Vp-p
- Audio input level: 1Vp-p
- Working temp: -20~+50°C/-4~+122°H
- Working humidity: 85%RH
- Storage temp: -40~+80°C/-40~+185°H
- Size: 115×60×20mm
- Weight: 160g
- Voltaeg: 12V DC
- Current: 500mA
Package List:
- 1 x Wireless Transmitter
- 1 x Receiver
- 2 x Antennas
- 2 x AV Cables
- 1 * User Manual
