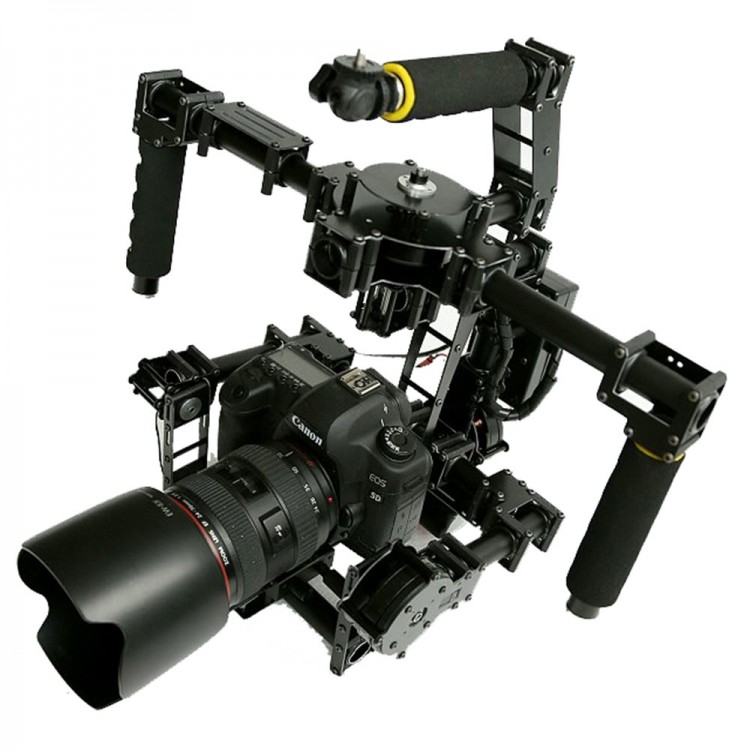

FPV 3 axis DSLR Brushless Gimbal Glass Fiber w/ DYS BGM5208-200 Motor & V2.4 AlexMos Control Board

FPV 3 axis DSLR Brushless Gimbal Glass Fiber w/ DYS BGM5208-200 Brushless Gimbal Motor and V2.4 AlexMos Control Board

DSLR gimbal descriptions:
- FPV 3 axis DSLR Handle Gimbal glass Fiber Stabilized Camera Mount PTZ
- Model:TZT-5D3
- Suitable for 5D2 5D3 D800 DSLR Camera
- 3 Axis design
- Recommended 3 pcs GBM5208-200T
- Battery:2-3S,Charger:B6 charger(sku:26951)
- Net weight: 1300g
- Size:45*23*37cm

Motor description:
- Item no.: BGM5208-200
- 12N14P
- Wire: 0.24mm
- Turn: 200 T
- Motor size: Ф63*24
- Shaft: hollow  shaft/ Ф7.0 out, Ф5.0 inner
- Ω Ri :17.2ohm
- Weight: 180g

Control Board Description:
- This Brushless Gimbal Controller is fully assembled and ready to use board with latest firmware (V2.4)
- Original Alexmos firmware, the firmware can upgrade in the future.
- With  latest official  firmware
- Firmware upgrade is supported when newer official version firmwares available
- Basic welding/ironing skills are required.

Note: This product is not assembled, and you need to debug it by yourself before usiing!!!!!!!

Package includes：(Not Assembled No Debugging)
- 3 axis brushless gimbal frame kit x  1
- DYS Brushless Gimbal Motor x 3
- AlexMos control board x 1
- Gimbal Control Box Case  x  1
- FPV Monitor Mounting Base  x  1
- Gimbal Hot Shoe   x  1
