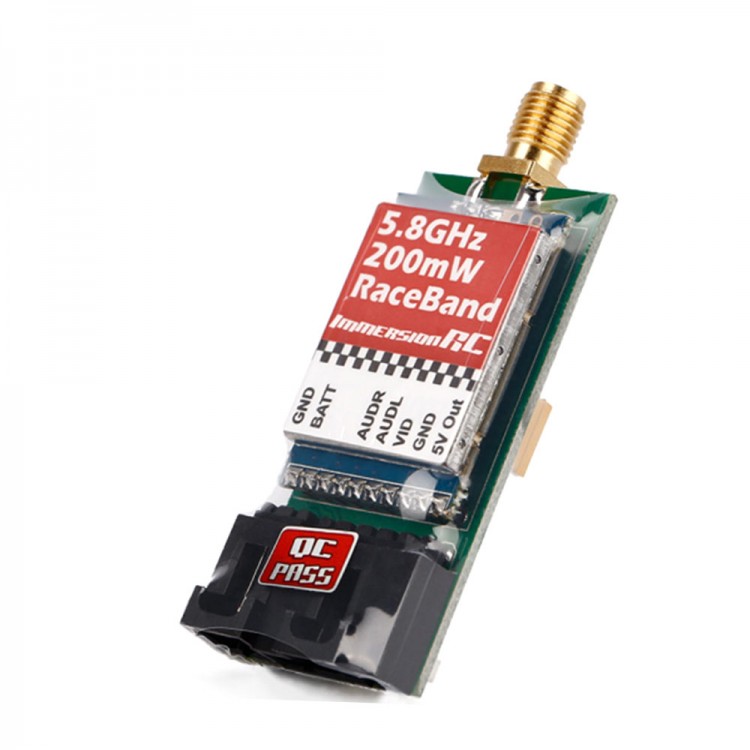

FPV 40CH 5.8GHz 200mW AV Transmitter Tx Module for Quadcopter Drone Immersion RC
Features:
- 37MHZ frequency seperation allows for flying up to 8 pilots simultaneously
- Onboard quiet switching regulator, powers 5V cameras. Raceband Channels 1-6 legal using a Ham license within the EU
- Not affected by 2.4GHz R/C radios!
- Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz (ImmersionRC/FatShark) All standard channels within the US/EU ISM Band
- Frequencies: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (RaceBand) All Raceband channels legal using a Ham license within the USA
Specifications:
- Input voltage range: 2S-6S lipo(7-25V)
- Transmitting pwer: 200mW
- 5V Camera supply: 300ma max
- RF Output: 50 ohm SMA
- Video input: 1Vpp, 75 ohms
- Size: 58 x 23 x 10mm/ 2.3 x 0.9 x 0.4 inch
- Net weight: 32g
Package included:
- 1 x Transmitter
- 1 x Antenna
- 2 x Cable
- 1 x Sticker
- 1 x Card
