Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $110.64 | $108.38 | $105.00 | $100.48 | Contact US |

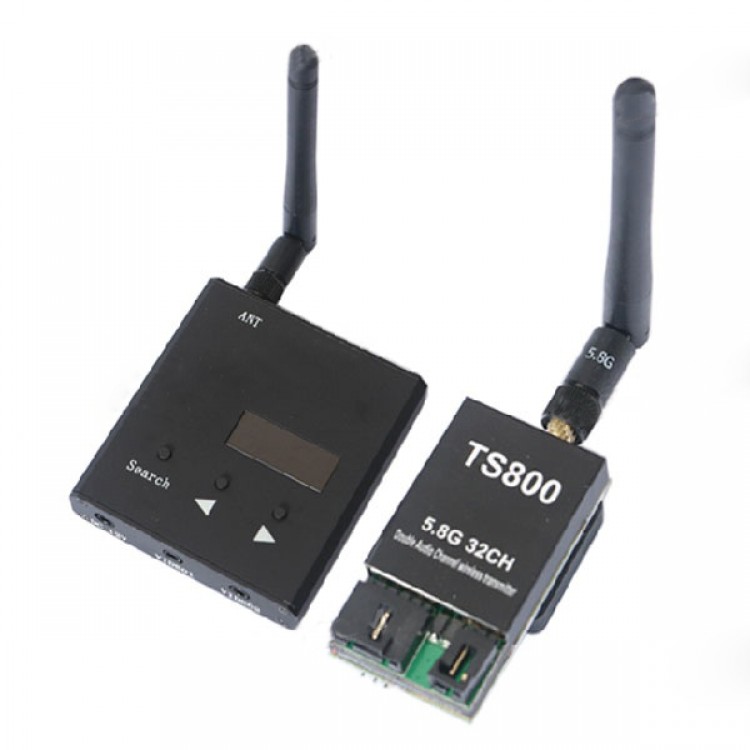

FPV 5.8G 32CH 1.5W 1500mW TS800 Wireless Transmitter +RC32S Receiver TX+RX Combo
Features:
- Integrated 6.5m and 6.0m audio input channel
- Integrated LED display system
- Integrated synchronous dial function, one button switch function for ground and air
- Super wide voltage input, support 2~6S power input
Specifications:
- Model: TS800
- Frequency: 5.8G
- Channel: 32CH
- Transmit power: 1500W
- Voltage input" 7~28V
- With reverse polarity protection
- With heat sink fan
- Work current: 800mA 12V
- Work temperature: -10~+85°C
- Audio system: 6.0, 6.5
- AAT connect support
- Support synchro dial, need ground receive support
- Video bandwith: 8M
- N.W.: 50g
- Size: 54*32*26mm
Receiver Specifications:
- Model: RC32S
- Channel: 32
- Scanning method: One button auto scanning
- Video output: 2CH
- Power supply: 12V, 3S
- N.W.: 80g
Package:
- 1 x TS800 transmitter
- 1 x RC32S Receiver
