Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $92.11 | $90.23 | $87.41 | $83.65 | Contact US |

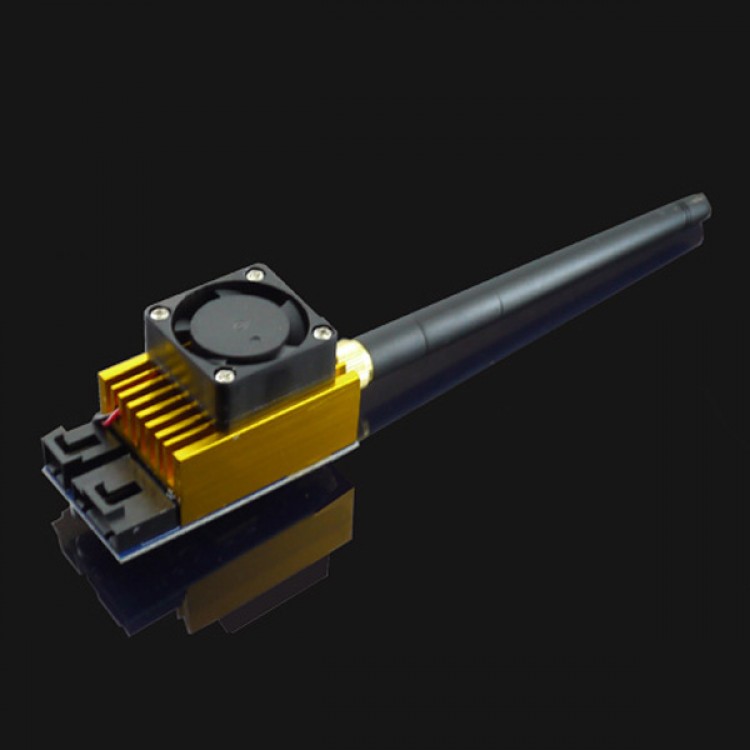

FPV 5.8G 600mW A/V Transmitter Module (TX) FPV Transmitter - Golden Edition Above 2km Range
Features
- FPV 5.8G 600mW A/V Transmitting module, Golden edition.
Special features:
- Utilized ball bearing fan, noise and vibration is greatly reduced.
- Ground range up to 2KM with stable video transmitting. (Normally air to ground range is much longer than ground to ground distance)
Product Details
- FPV 5.8G 600mW A/V Transmitter Module (TX) - Golden Edition
- video format supported: NTSC/PAL
- Antenna connection: SMA
- Power input: 7.4-13V (3S Lipo suggested, does NOT support 4S Lipo)
- Transmitting power: 600mA (working current 230mA @12V)
- Weight: 52g/ 1.8oz
- Dimension: 59x30x33 (excluding antenna)
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
Item Packing
- transmitting unit (TX) X 1
- TX antenna (2db) X1
* No instruction manual supplied with this product.
Requires:
- 1 x receiving unit (RX)
