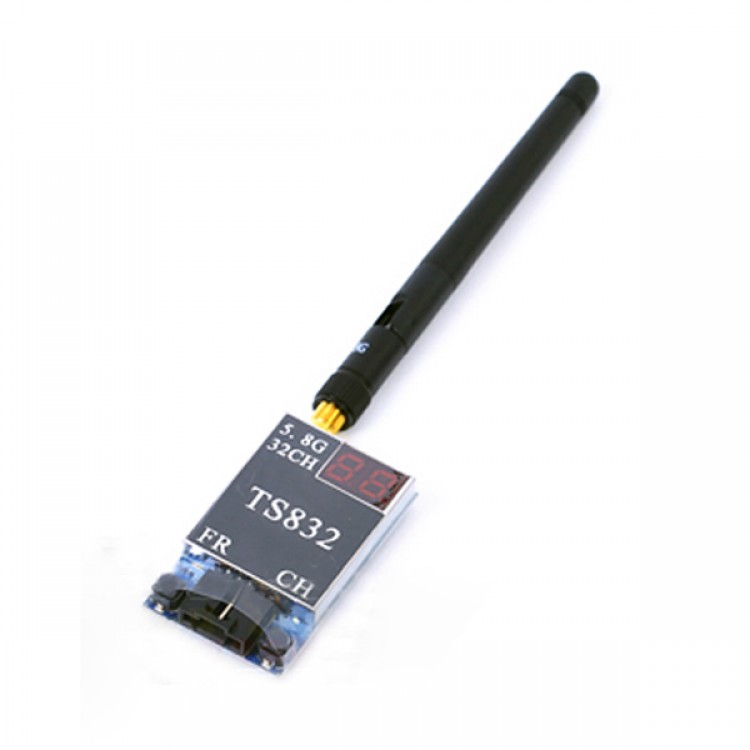

FPV 5.8G 600mW A/V Transmitting TX System TS832 32 Channel Wireless Audio/Video System
Description:
- RX/TX;RP-SAM jack
- Antenaa:RP-SMA plus
Transmitter TS832 parameters
- Transmission frequency: 5.8 G
- Transmission power: 600 mw
- Launch frequency point: 32 points
- The input voltage: 7-16 v
- Antenna connector: launch module end RP - SMA antenna jack end RP - SMA plus
- 2 db antenna gain
- Work current :220 ma / 12 v
- Working temperature: - 10-85 ℃
- Automatic video formats: NTSC/PAL
- Video bandwidth: 8 m
- Audio bandwidth: 6.5 M
- the net weight: 22 g
- Dimension: 54 * 32 * 10 mm
Package included:
- 1 x TS832 Transmitter
- 1 x 5.8G 2db Antenna
