Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $36.14 | $35.40 | $34.30 | $32.82 | Contact US |

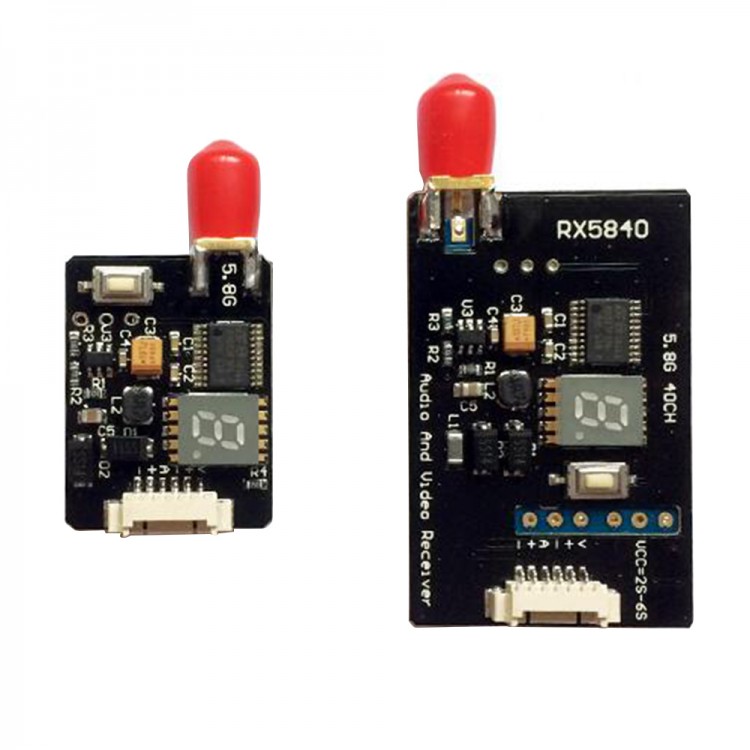

FPV 5.8G Transmitter + 40CH Receiver Audio Video AV Rx Tx for DJI Quadcopter RC Drone
FPV Transmitter Parameters:
- Power: 25-600mW / 27dBm (adjustable)
- Working voltage: 6-30VDC (2-6S)
- Working current: 280mA@12V
- Working frequency: 5.645GHz-5.917GHz
- Channel: 40
- Size: 22*28mm
- Weight: About 7g
- Antenna mount: SMA
40CH Receiver Parameters:
- Working voltage: 6-30VDC (2-6S)
- Working current: 110mA@12V
- Working frequency: 5.645GHz-5.917GHz
- Channel: 40
- Size: 22*44mm
- Weight: About 11g
Features:
- Channel selection: Key + digital tube
- Compact structure and light weight
- Integrated circuit,high sensitivity
- Digital PLL, temperature drift phenomenon
NOTE: Please make sure that the transmitter connects to the antenne first, then power on.
Package list:
- 1 x 5.8G Transmitter
- 1 x 5.8G Receiver
