FPV 5.8Ghz 600mw 40CH Transmitter and Receiver and 1000TVL CCD Camera and HD Monitor Set with Holder for RC MultiCopter

FPV 5.8Ghz 600mw 40CHTransmitter and Receiver and 1000TVL CCd Camera and  HD Monitor Set with Holder for RC MultiCopter

Description:
- Boscam has forged a reputation of quality and reliability and has been tested and developed by FPV pilots for FPV pilots.
- The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 40 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at a scant 21g, it’s Perfect for a wide range of aircraft!
- The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.

*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab

Features:
- 40 channels: Cover A, B, E bands and F bands
- Two switching buttons for the band and channel
- Two digits display for  the band and channel
- Power off memory for last channel and band
- dual Independent video and audio signal outputs

Specs:
- Video format supported: NTSC/PAL
- Antenna connection: RP-SMA, jack (module side, both TX and RX)

Transmitter TX TS832 specs:
- Power input: 7.4-16V (3S Lipoly suggested)
- 40 channels
- Transmitting power: 600mW
- Antenna gain: 2dbm
- Working current: 220mA at 12V
- Video bandwidth: 8Mhz
- Audio bandwidth : 6.5Mhz
- Weight: 21g
- Dimension: 54x 32x 10mm(excluding antenna)

Receiver RX RC832 specs:
- Power input: 12V
- 40 channels
- Working current: 200mA max
- Antenna impedance: 50Ω
- Antenna gain: 2db
- Rx sensitivity -90dBm
- Video impedance: 75Ω
- Video format: NTSC/PAL auto
- Dimension: 80x 65 x15mm
- Weight: 85g

Specification:
- display: TFT-LCD digital high-definition screen, make the image clearer, more realistic color;
- Resolution: 800 (H) × RGB × 480 (V) HD resolution;
- Display format: 16:9. Entertainment and rear view dual display format;
- Power consumption: 7.5W
- Rated Voltage: DC 9V ~ 14V
- Signal System: PAL / NTSC / AUTO Compatible with all Signal System;
- Interface: 2 AV video interface, 1 standard power interface 12. Operating Temperature: -15 ° C to 50 ° C
- Storage Temperature: -20 ° C to 80 ° C
- no signal blue power is applied to the signal input automatically start

FPV Monitor Mount Holder Features:
- Model:FPV-TV
- Suitable for the transmitter with metal bracket
- Material: Carbon fiber
- Light weight, High strength
- Suitable for 7inch or 8inch monitor
- Compatible with futaba 9c 10c JR 9c WFLY transmitter etc

1000TVL Camera Description:
- System: PAL/NTSC
- Image Sensor: 1/3 Inch CMOS
- Pixels: 1280 (H) x 720 (V)
- Synchronization: Internal
- Min Illumination: 0.05 LUX/F1.2
- Horizontal Resolution: HD 1000TVL
- White Balance: Automatic
- Automatic Gain: Automatic
- Backlight Compensation: Automatic
- Digital Noise Reduction: Yes (2D)
- Gamma Correction: 0.45
- Electronic Shutter:
  1/50 – 1/100, 000S (PAL)
  1/60 – 1/100, 000S (NTSC)
- SNR: ≥dB
- Video Output: 1.0Vp-P75Ω
- Working Voltage: DC5V, 1000mA
- Working Current: 135±5mA
- Operation Temperature: -40℃ to 105℃

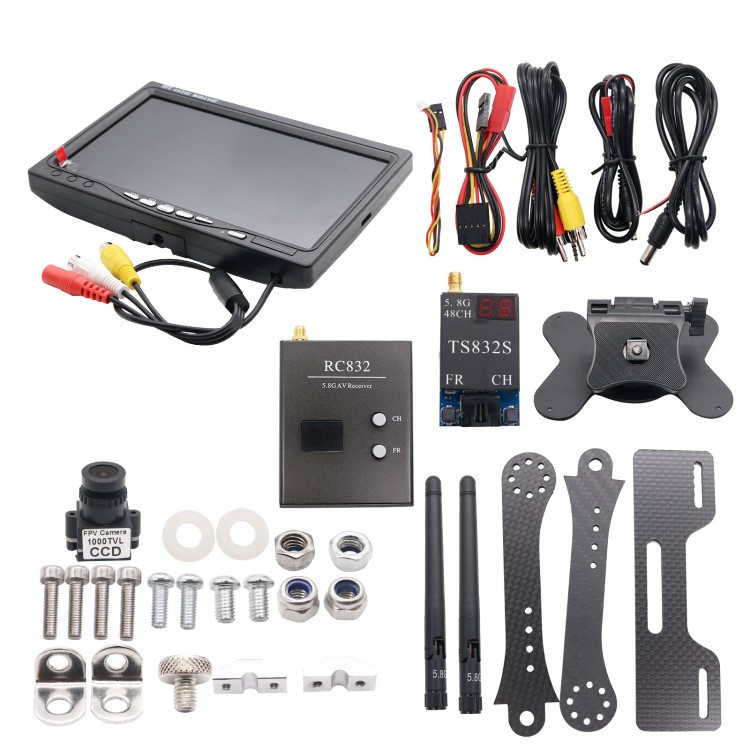

Package List:
- 1 x 5.8G 600mw 40CH TS832 Transmitter
- 1 x 5.8G 600mw 40CH RC832 Receiver
- 1 x 7" FPV LCD Color Monitor Video Screen FPV Device for Rc Airplane Multicopter Car
- 1 x Carbon Fiber Monitor Holder
- 1 x FPV HD 1000TVL Camera
