Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $19.13 | $18.74 | $18.15 | $17.37 | Contact US |

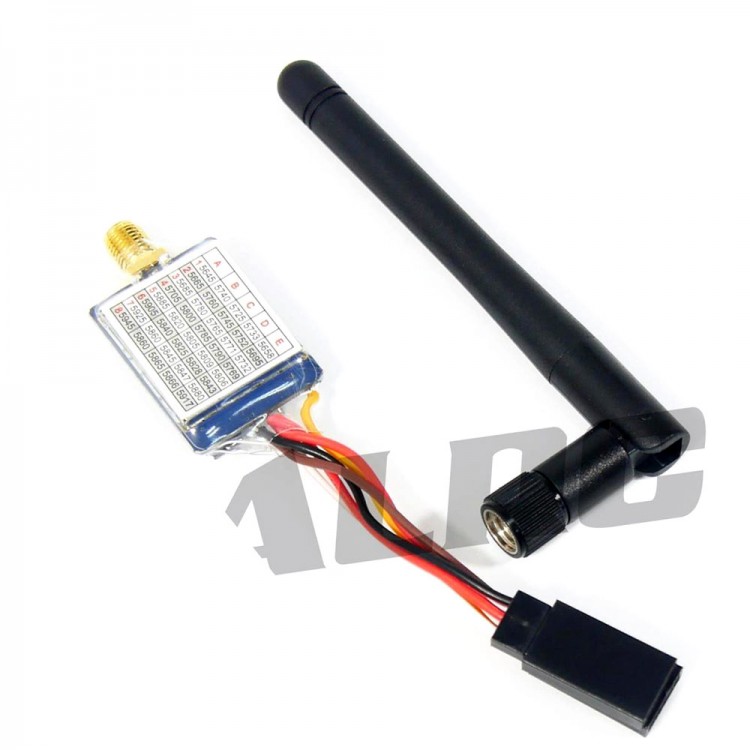

FPV 5.8GHZ Transmitter 300mW 40CH DC8-24V Tx for Quadcopter Hawk Eye Q300
Specifications:
- FPV 5.8Ghz transmitter / Tx
- Power:300mW
- Voltage:2S-6S
- Current :300mA @12V
- Channel number: 40
- Size :51×34×12 MM
- Weight : 10g
Usage:
- The antenna should be fixed vertically to the machine for good performance.
- Press the key once means Switch channel, from 1 to 8
- Long-press the key for 2 seconds means Switch channel group, form A to E
- Change Frequency:Press the key, and then you can change channels and groups.
Frequency:
A B C D E
1 5645 5740 5725 5733 5658
2 5665 5760 5745 5752 5695
3 5685 5780 5765 5771 5732
4 5705 5800 5785 5790 5769
5 5885 5820 5805 5809 5806
6 5905 5840 5825 5828 5843
7 5925 5860 5845 5847 5880
8 5945 5860 5865 5866 5917
Package included:
- 1x Hawk Eye 5.8GHZ 300mW Transmitter
