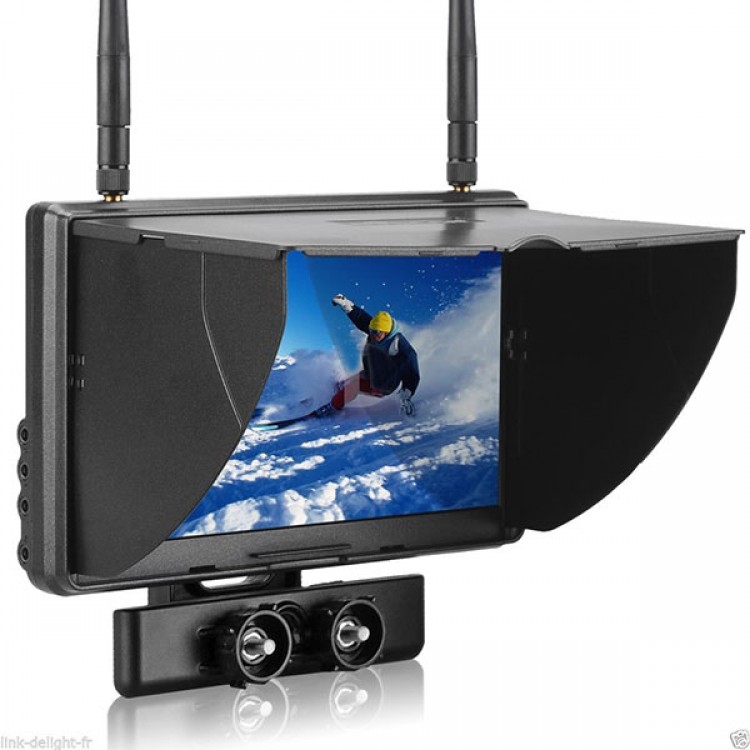

FPV 7" TFT LCD Monitor Screen Boscam Galaxy D2 5.8GHz Dual Receiver for FPV

FPV 7" TFT LCD Monitor Screen Boscam Galaxy D2 5.8GHz Dual Receiver for FPV

Description

This 5.8GHz Diversity LCD Screen offers the perfect solution for any 5.8GHz FPV system. It features its own in-built 2CH 5.8GHz A/V receiver, allowing it to receive directly from your FPV model’s A/V transmitter! This means it can eliminate
the need for expensive FPV goggles, or can be used simply as a way to display your FPV model’s video for others to view as you fly.
Featuring dual A/V outputs, this monitor is capable of outputting the signal of both RF channels at the same time. It also features an
A/V input as well as a Tracker Link port.Offering true 5.8GHz diversity, this device features automatic antenna switching to provide the
best reception possible. A foldable screen shroud is included to optimize viewing in bright conditions.

Specification:

 1. Screen: 7"TFT LCD screen/long life, LED backlight
 2. Resolution: 800*480 dot pitch
 3. Brightness: 250cd/㎡
 4. Contrast: 500:1
 5. View angle: 140/120degree(Horizontal/Vertical)
 6. Antenna connector: RP-SMA
 7. Channel: 5.8G Dual input, 4 Bands 32CH avaliable
 8. Size:176x112x24mm
 9. Working voltage: 7-24V
10.Power consumption: less than 4W
11.Working temperature: -10℃~+60℃

Package contents:

1x Mainframe
1x Remote Control Holder
1x AV Cable
1x Power Adapter Cable
1x Tripod Connector
2x Antenna
1x User Manual
