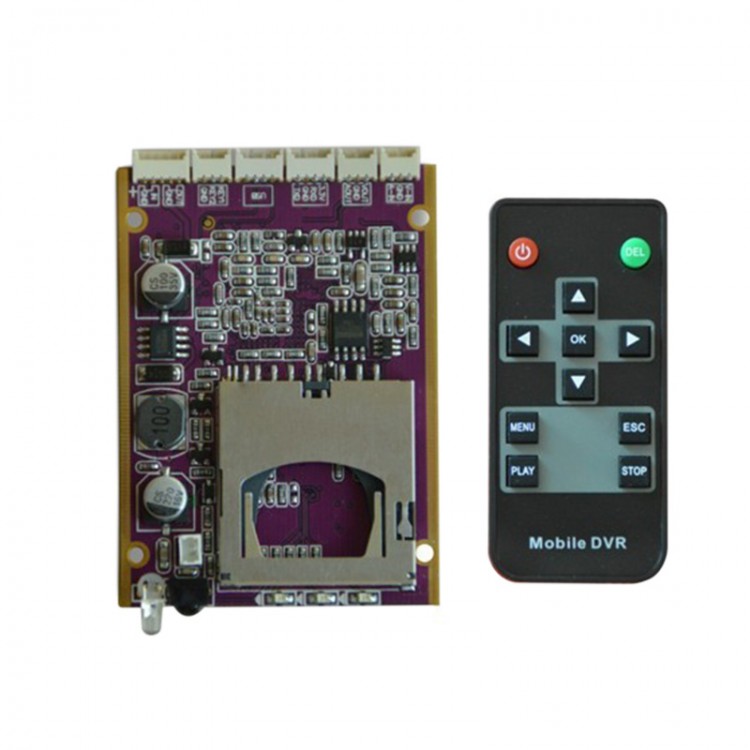

FPV Aeromodelling Shooting Video Recording Module 1CH DVR HD Board SD Card Storage Module
Description:
SD card video recorder board is a high-performance, high-definition digital video recorder; board is 65*47mm. It adapts MPEG-4 video compression, and single channel resolution up to D1(704*576), 30fps, is a fully real-time, high-definition, low power consumption, easy-operated, super-smart professional DVR.
It supports power-up record, motion detect record, scheduled record, and manual record, manually make the snapshot;SD card up to 32GB expandable, and directly playback by TV sets, monitor, USB connected to the computer to read data;and PC by SD card reader.
Features:
1.MPEG-4 video compression
2.D1(704*576) resolution
3.MPEG-4/ASF video format, MP3 audio format
4.Real-time stamp on videos, overwrite
5.Manual/motion detect/scheduled/power-up record
6.Audio input, audio compression 8KHZ/ADPCM
7.5/15/30fps optional

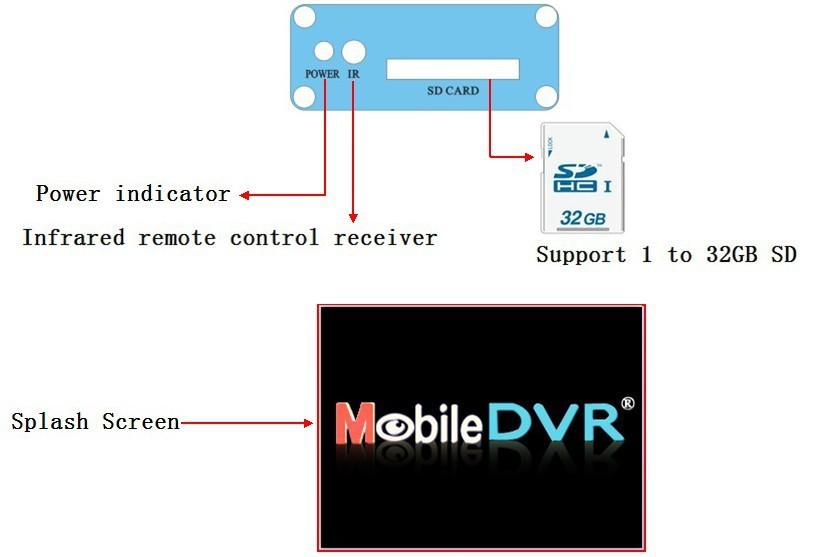

8.SDHC memory support, up to 32GB
9.TV-out enables better resolution by TV set
10.MPEG-4/ASF playback

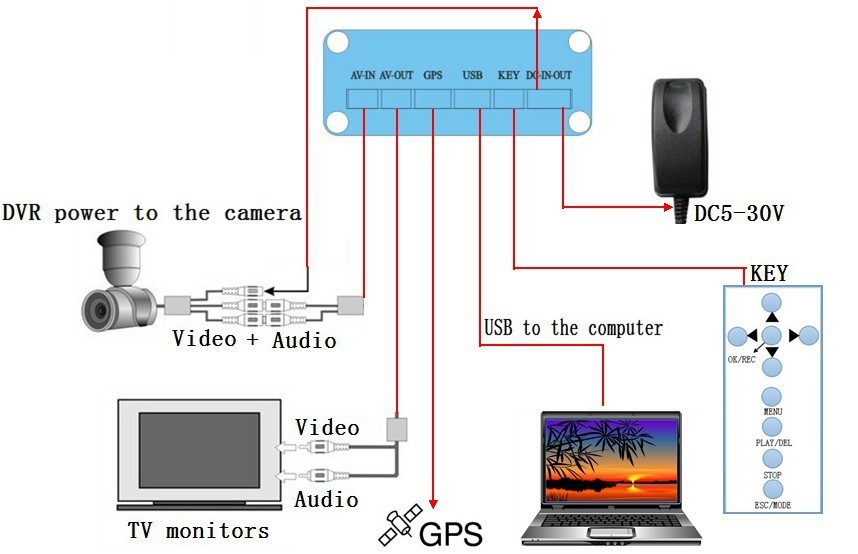

11.AV-IN, AV-OUT directly connect with camera, TV, monitor
12.Support IR remote operation, built-in ADC for external keyboards
13.Support for external trigger: manual recording or photograph
14.Time display optional
15.Built-in RS232 series port, enables external remote, keyboard for operation and software set-up
16. DC5-30V for wide power supply use(5-30V voltage can be output to the camera (less than 200mA))
17. Manually make the snapshot
18. Low power-consumption, 1W when standby, 2W when recording
19.USB connected to the computer to read data
20. Remote support the switch machine
21.Boot, automatically repair before power missing video (plus 3.7V battery, before power, immediately save the video)

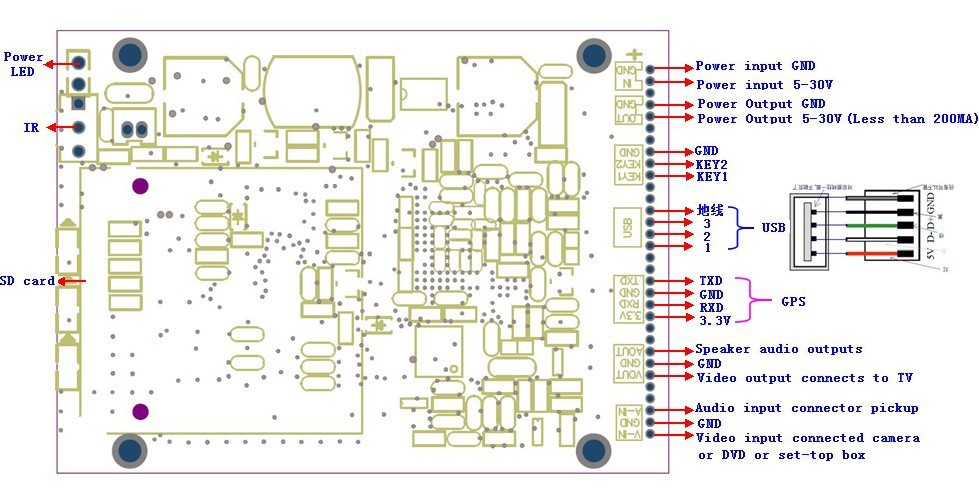

22. Board dimension: 65*47mm, net weight 200g, with position holes for different expandable using.
Board application:
The board supports wide voltage input, suitable for all vehicles use; SD card for storage avoid vehicle shock; resolution D1/VGA/QVGA and frames 5/15/30fps optional for different requirements in different conditions.
Product Configuration:
- 1*DVR8580
- 1*Remote controller
- 1*1 set of cables
- 1*Manual
