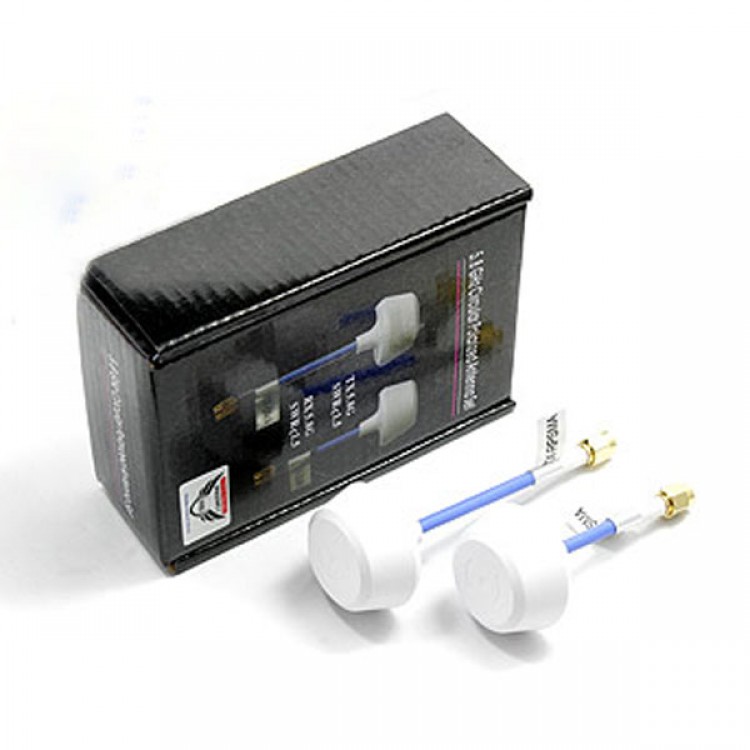

FPV-FEVER CP58 5.8GHz Petals Clover Antenna Mushrooms Antenna (TX + RX / bore) for FPV System

FPV-FEVER CP58 5.8GHz Petals Clover Antenna Mushrooms Antenna (TX + RX / bore) for FPV System

Description:
- The group antenna TX and RX ,TX is for the transmitter, RX is for the receiver, could not connect wrong (very important). Petals antenna (Clover Leaf Antenna, also known as clover antenna) is one of the most advanced antenna structure, different from the traditional flat panel antennas and omni-directional antenna, petals antenna integrated the advantages of both, not only extremely high sensitivity and point direction weak, its performance is equivalent to an "omni-directional panel antenna ,size is small and weight is light, absolute advantage for the antenna to improve the Illustrated signal stability, improve the transmission distance.

- FPV-FEVER CP58 5.8GHz petals antenna is ideal FPV-FEVER 5.8G Illustrated with other 5.8G Illustrated system also can be used. TX and RX antenna interface are threaded bore within the SMA specifications before buying make sure Illustrated system you are using is compatible with the kind of interface, otherwise optional conversion parts need to get to make the interface fit, it does not affect the work performance!

FPV-FEVER CP58 5.8GHz petals antenna / clover / the mushrooms antenna (TX + RX / bore)
- The 5.8GHz microwave Figure Biography special high efficiency omnidirectional petals antenna / antenna clover / mushroom antenna
- Brand: FPV-FEVER
- Model: CP58
- Configuration: TX x 1 + RX x 1
- Interface: SMA threaded bore
- Weight: 14.6g (TX), 12.6g (RX)
- Standing wave ratio (SWR): <1.5
- Length: 100mm (TX); 80mm (RX)
