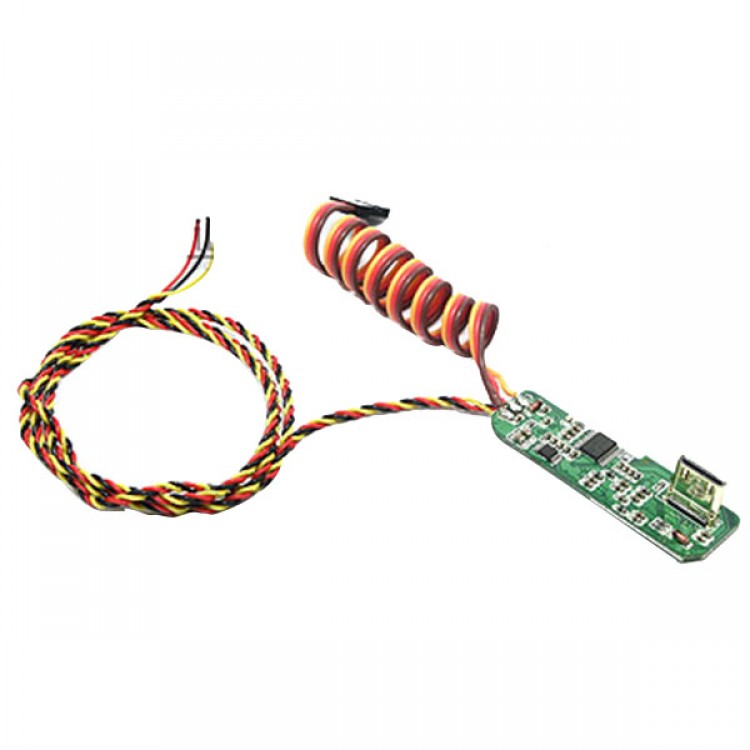

FPV-Fever HTA31 MKII 2nd Generation 3 in 1 HDMI-AV converter Optical Shutter Remote Camera Video for Sony Nex etc

FPV-Fever HTA31 MKII 2nd Generation 3 in 1 HDMI-AV converter Optical Shutter Remote Camera Video for Sony Nex etc

Description:
- (PAL or NTSC both work, Automatically adapt)
- For SONY NEX series micro-camera tailored - FPV-Fever HTA31 Mark II 3-in-1 converter! Designed for aerial areas and have the required volume of the weight of universal design ultralight HDMI-> AV converter, HDMI-D line type interface, compatible with most miniHDMI standard interface device, the camera directly powered, no external power supply; direct connection diagram pass transmitters, audio, video sync output, no HDMI cable. HTA31 Mark II in addition to HDMI-> AV conversion function, but also integrates a remote shutter function, send IR commands using fiber conduction mode, by remote control camera to take pictures or video (to be occupied by a receiver channel), the installation is very simple.

Description:
- HTA31 MKII's volume is very small, it may be the world's smallest HDMI to AV converter! Will not bring significant weight gain, compact shape also brings better installation results. Its camera shutter control feature is triggered by infrared, non-contact, does not require any modification of the camera! Signal transduction via fiber alone! FPV-Fever HTA31 MKII compact, practical and fully functional.

Supported camera list:
     1)There are currently supported cameras SONY NEX-5/5N/5R/5T/5TL/6R/7N/7R. Nikon D90, D3X
     2) Support playback display camera has Panasonic GH2/GH3 / Canon 60D
     3) Supports both versions of the SONY NEX 50i mainland and Hong Kong version or
           the European version of the SONY NEX 60i Series Cameras .

FPV-Fever HTA31 MKII main features:
- HDMI to AV signal converter
- Remote camera to take pictures
- Remote camera to shoot video
- Customized for the SONY NEX series cameras (5N/5R/6R/7N/7R)
- Support PAL / NTSC system
- Supports 16:9 and 4:3
- Ultra-small size
- Ultra-lightweight (weighing only: 10g)
- Very low power consumption (operating current of about 30mA)

Packag included:
- 1x HTA31 MKII module
- 1x red, yellow, black three-core AV cable
- 1x 0.75mm POF fiber

Precautions ( Please read carefully ) :
1. HDMI output set the camera is set to : auto
2. To use the remote shutter function infrared remote control receiver functions set the camera to open
3.  HDMI control is set to "off" state , it may not be using the remote camera on some batches of NEX cameras
4 . The "wide image " is set to "Full" in order to be able to full-screen display on the monitor screen shot .
5. this item taken power from the HDMI converter power , but also to take power from the receiver signal cable , when the receiver operating voltage > 6V , be sure to cut the red cable signal line .
6. This converter is an infrared camera shutter trigger signal transmitted through the optical fiber , the specific installation methods are as listing detailed pic.
7. remote shutter trigger functions are controlled by three switches (Video - Stop - photos ) , and before energized , the switch should be placed in a median position ( stop ) , it is very weight. No 3 switch remote control does not use the product 's remote shutter function , if you do not use a shutter function , the converter can only be used as an ordinary HDMI-AV converter. 3 switch attention on the next trip itinerary and set to work to 100% ( for example : Futaba 10C remote control, by setting END-Point menu to complete the setup of the vertical stroke ) .
8. When you take video, the same time can not take pic. The need to stop recording to take pictures. All operations are controlled by the remote control 3 bit (way) switch  .
