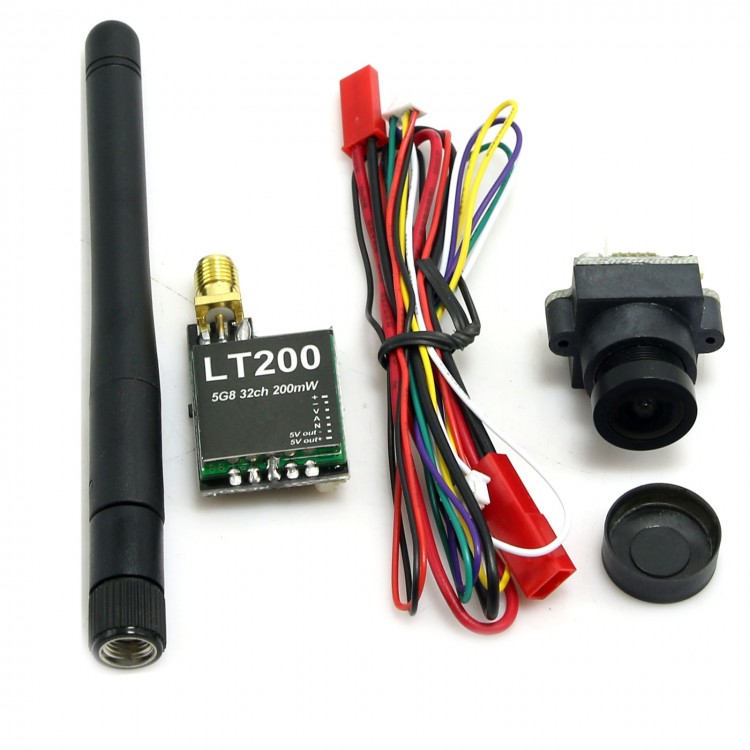

FPV FOV160 Camera Lens Module w/ TL200 200mW 32CH FPV TX Transmitter Combo

Availability: Out Of Stock

  • Price:$36.03
  • Price in reward points: 360 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $35.31 $34.59 $33.51 $32.07 Contact US
Quantity:
Buy it now Add cart

You might like

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

$86.90

(0)
AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + DVR Receiver FPV Data TX RX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + DVR Receiver FPV Data TX RX

$96.90

(0)
AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter Module FPV TX

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter Module FPV TX

$42.97

(0)
5.8G 2000mW Wireless Video Transmission System FPV Transmitter Receiver with 7" IPS Receiving Screen

5.8G 2000mW Wireless Video Transmission System FPV Transmitter Receiver with 7" IPS Receiving Screen

$118.10

(0)
Aomway HD Mini 1/3'' CMOS FPV Camera 2.8 Lens Module 600TVL PAL JST Port

Aomway HD Mini 1/3'' CMOS FPV Camera 2.8 Lens Module 600TVL PAL JST Port

$19.90

(0)
Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with Camera OSD Charger

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with Camera OSD Charger

$372.05

(0)
5.8G 2000mW Wireless Video Transmission System FPV TX RX 4.3" IPS Screen Set with DVR 1200TVL Camera

5.8G 2000mW Wireless Video Transmission System FPV TX RX 4.3" IPS Screen Set with DVR 1200TVL Camera

$134.45

(0)
Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with DEVO7 Camera OSD Charger for FPV

Walkera F210 4-Axis Racing Quadcopter Drone with Motor Flight Controller with DEVO7 Camera OSD Charger for FPV

$412.12

(0)

FPV FOV160 Camera Lens Module w/ TL200 200mW 32CH FPV TX Transmitter Combo


Camera Lens Specifications:
- Power supply: 3.6~5.5V
- Power: 60mW/5V
- Sensor: 1/3" CMOS, over 700TVL
- System: NTSC/PAL(Default PAL)
- Lens: 2.6mm IR film
- FOV: 160degree
- Work temperature: -20～70℃
- Dimension: 32*32*23.5mm
- Weight: 12g

LT200 Transmitter:
- Modulation: FM modulation
- Video format: NTSC/PAL
- Output resistance: 50ohm
- Output power: 23-24dbm
- Channel: 32CH
- Work voltage: 7-24V
- Current: 190mA
- Work temperature: -10~85°C
- Video frequency bandwidth: 0~8.0MHz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8~1.2Vp-p
- Video input resistance: 75ohm
- Audio input level: 0.5~2.0Vp-p
- Audio input resistance: 10Kohm
- Connector: SMA
- Dimension: 38*22.5*6mm
- Weight: 6g

Package Included:
- 1* LT200 Transmitter
- 1* Camera lens
- 1* Antenna
- 1* 5pin Cable
