FPV Pixhack 2.8.4 Flight Controller 32Bit Open Source Based on Pixhawk+Ublox M8N GPS with Compass for Drone Quadcopter
Flight Controller Description:
Based on pixhawk's powerful open source procedure,Pixhack Flight Controller provide more functions,
We removed those needless ports to make it better,
In pixhack 2.8.4,IMU inertia control unit seperate with the main flight control,it become floating structure which can rstrain the viberation on high-speed mini copters.
Flight Controller Features:
- Independent IMU unit,built-in floating viberation absorb structure,to keep your drone steady.
- Removed the needless ports like SPKT/DSM,CAN.
- Procedure based on pixhawk,with variety of functions
- The ports like GPS/TELEM/POWER are the same as APM 2.5/2.6/2.8
- Main control size:69*45*16 mm
- Weight:33g
Flight Controller Advantages:
- Advanced 32-bit ARM Cortex M4 high performance processor.
- 8pcs PWM/servo output,Max supporting 8-axis copters
- Automatic & manual mode
- Redundancy power input and malfunction shifting function.
- Multi-color LED
- Multi-tone Buzzer port
- Record flight data with Micro SD card
CPU:
- 32-BIT 2MB cache STM32F427 Cortex M4,with hardware floating-point processing unit.
- Basic frequency:168MHZ,256K RAM.
- 32-BIT STM32F103 backup coprocessor.
Sensor:
- L3GD20 3-axis 16-bit digital GYRO
- LSM303D 3-axis 14-bit accelerometer/magnetometer
- MPU6000 6-axis accelerometer/magnetometer
- MS5611 high precision barometer
Connector:
- Futaba SBUS input compatible
- PPM signal input
- PWM signal output
- One I2C port(1.25mm spacing,4pin,JST)
- Two Telemetry prots(1.25mm spacing,5pin JST)
- One Powermodule port(1.25mm spacing,6pin JST)
- One GPS port(1.25mm spacing,5pin JST)
Ublox M8N GPS Module High Precision with Compass:
- A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.3-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
- A new better GPS optional for APM and Pixhawk. NEO-M8N will be the best choice for the Open Source Controller with it's Super High Precision and Fast Searching Star Efficiency.
- Built-in Compass, the refresh rate increased to 10GHZ
- NEO-M8N with Low-power, High Precision, the Ultimate precision 0.6 meter. The actual test Precision mostly at about 0.9 meter.
- The Pixhawk test the return precision most at 20-30cm. Improved a lot compare to the previous NEO-7N's Precision 1.3-1.6 meter.
- The Star searching Speed and quantity improived, support the Europe's Galileo, Russian GLONASS, Japanese Small Sun, Chinese BDS. The module support GPS + BDS + SBAS or GPS + GLONASS + SBAS

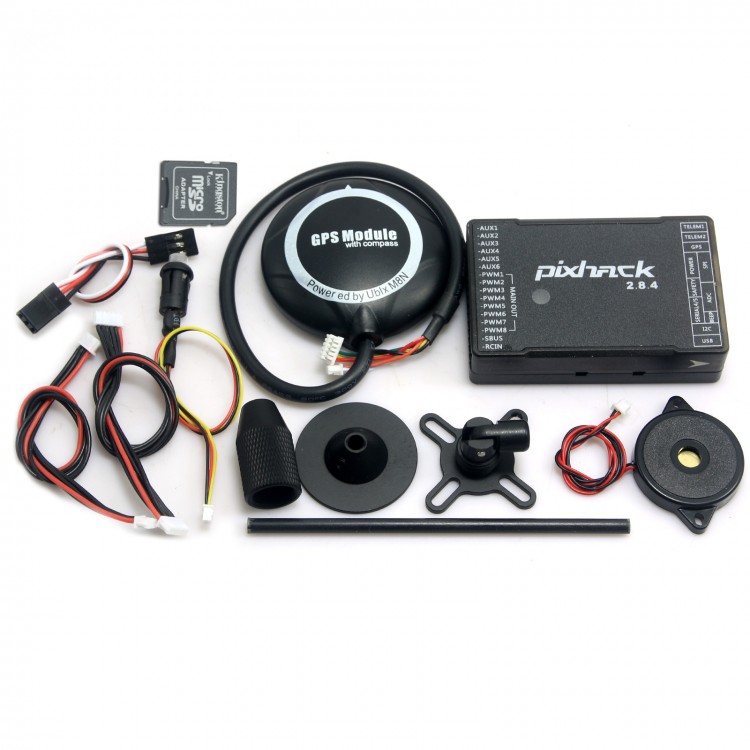

Package List:
- NEO-M8N GPS Module * 1
- Pixhack 2.8.4 flight control * 1
- Safety switch *1
- Buzzer *1
- Micro SD card* 1
- SD card reader* 1
- Cables
