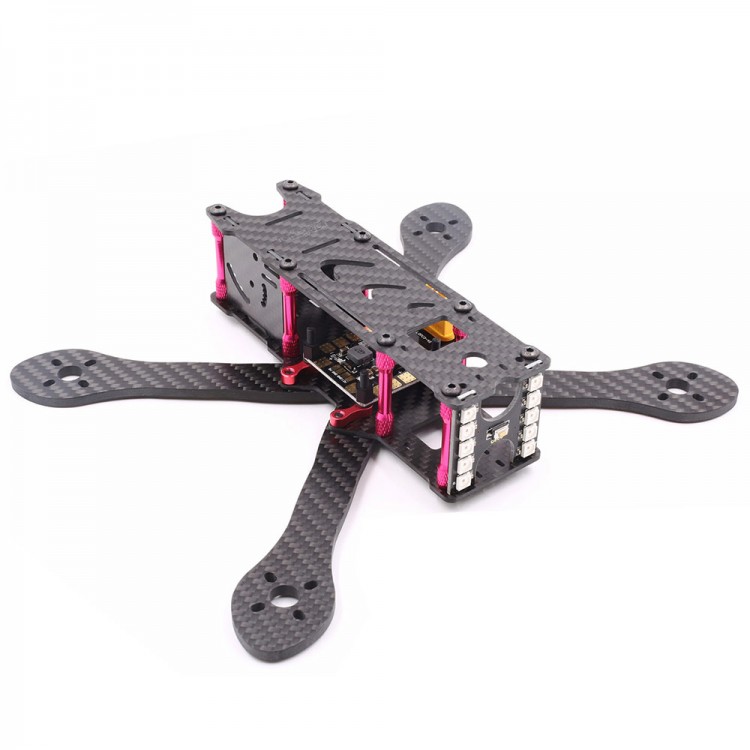

FPV Quadcopter Frame 4-Axis Carbon Fiber Drone 180MM w/Power Distribution Board GEPRC GEP-VX4
Features:
- 10* LED on the quadcopter tail
- 3K high strength carbon plate to ensure that the framework is strong
- Aluminum parts, so that the arm more robust, and can be very convenient to replace the arm
- 4 inch wheelbase 18mm
- Motor block, protection structure
- X shape structure
- The structure is strong, beautiful, light weight (118g, empty frame and screw).
- Lens , adjustable 55 degree
- Lens comes with fixed film, also perfectly compatible with HS1177 and swift
- With a power distribution board, with BEC (5/12v output, maximum 3A, 12V maximum 500mA)
- 35MM high strength non slip aluminum column
Technical parameter:
- Name: GEP-VX4 FPV Quadcopter Frame / 4-Axis Drone
- Weight: 118g (Aluminum parts include, plate 2mm Top)
- Quadcopter wheelbase: 180mm ( motor to diagonal motor)
- Lens angle: 0-55 DEG
- Arm thickness: 4mm
- Main board thickness: 2mm
- Sided Plate thickness: 1.5mm
NOTE: Not include camera, motor, ESC ,propeller or other electronic components.
Recommended configuration (not icnluded) :
- Flight control: F3 /Naze32/ CC3D
- Motor: 2204/2205/2206/2305
- ESC: 20A-30A
- Propeller: 5 inch
- Battery: 1300mAh 3S ~ 1300mAh 4S

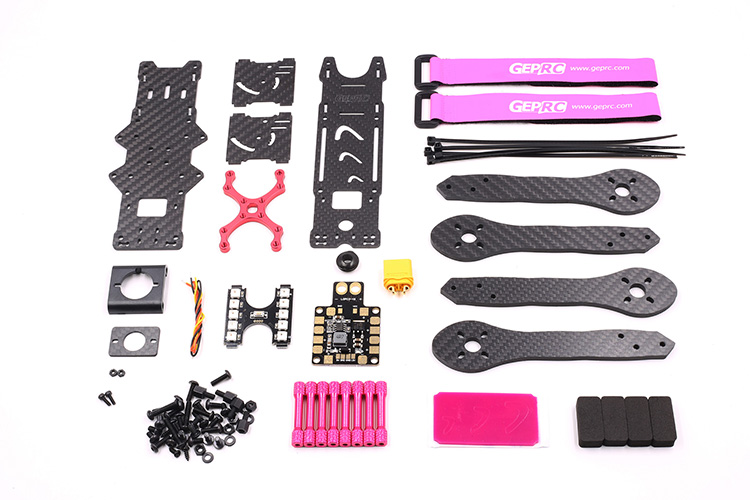

Package included:
