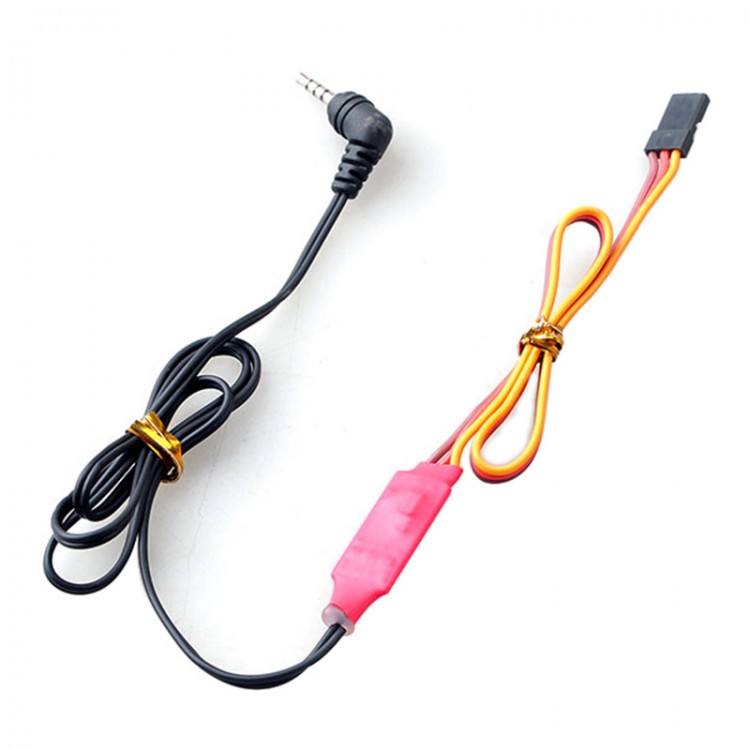

FPV Remote Control Shutter Cable for Panasonic GH3 GH4 SLR Camera FPV Photography

FPV Remote Control Shutter Cable for Panasonic GH3 GH4 SLR Camera FPV Photography

Compatible camera:
- GH4,GH3,GH2,GH1,GX7 GX1 G6 G5 G3 G2 GF1 FZ150 FZ200 LUX2

Description:
- This remote control shutter cale is specially designed for Panasonic GH4 GH3 FPV photography
- Small size, stable, safety and high efficiency
- The cable outputs stop, focusing, takingn pictutes signal for remote control 3 sections switch channel, realizing the remote control to GH4 GH3 camera, start / stop the video taping

Connection method:
- Connecting control end of shutter cable with reciver corresponding channel and  then set up three gears of switch (three section switch settings: first gear < 1.3ms, mid gear 1.5ms, last gear > 1.7ms the most remote do not need to set ), plug the shutter plug into camera shutter control holes, before doing this, ensure you've shut down the camera

A single trigger mode:
- This model is designed specifically for the video recording, because GH3 GH4 don't support, shutter cable to alter picture taking to video taping mode, so you can only alter shooting mode by camera drive plate, If you want to use remote control shutter to control video taping function, adjusting camera drive plat to video taping mode, and then turn on the first gear of remote control, then change to mid gear, and trigger the shutter for one time, the camera then start video taping. If you execute one time trigger shutter, the video taping stops
- In this process, the shutter line is not a simple triggering the shutter, but first focus, press the shutter operation executed after a brief delay.
- The last gear , not to operate shutter, only to focus
- In this kind of trigger mode, if the dial in the photographic archives, the camera then each toggle switch with three gear a cycle, according to a photo, because this model is particularly suitable for recording operation.

Continuous trigger mode:
- This mode is specifically designed for taking pictures, in this mode, the file is continuous shooting, the next file is a single photo, mid-range is stop. Decomposition action every photo shoot is in turn the focusing delay - > > shutter, and similar products on the market is only the savage shutter operation, not to focus sufficient delay may cause photographs of fuzzy.
Mode selection:
- How to enter the trigger mode single or continuous trigger mode? The receiver is connected the shutter release when the power is on, the three-way switch on the remote location determines the shutter line electric after the implementation of that model.
- When the receiver is powered on, the three-way switch is located in the mid-range, shutter line after the start, performing a single trigger mode, otherwise, executing continuous trigger mode.
Note:
- The corresponding 3-gear switch some of the remote controller is the channel may need to be opposite rudder set, can explain and above operating method in the same.
