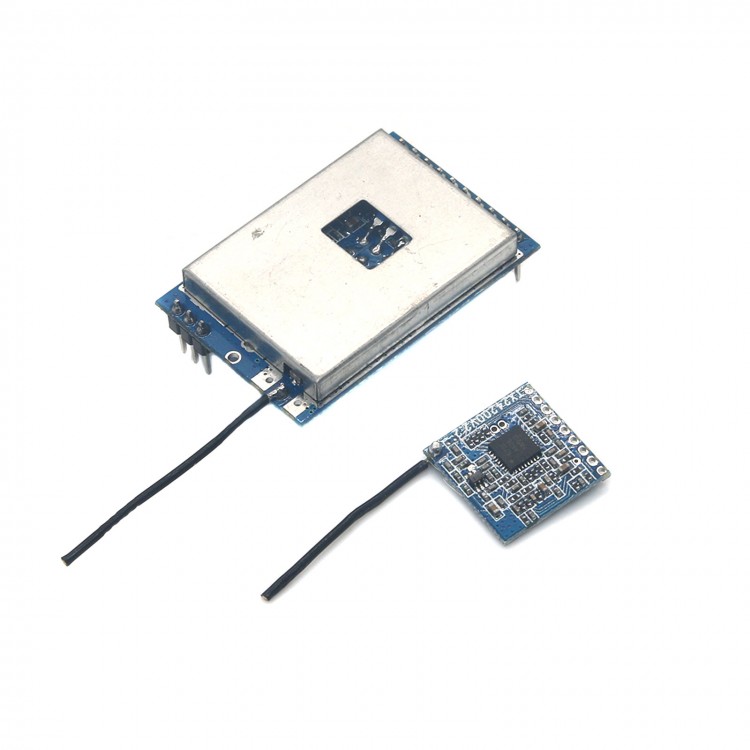

FPV Video Stereo Audio AV 200mW 2.4Ghz Wireless Transmitter Module + Receiver

FPV Video Stereo Audio AV 200mW 2.4Ghz Wireless Transmitter Module + Receiver

Description:

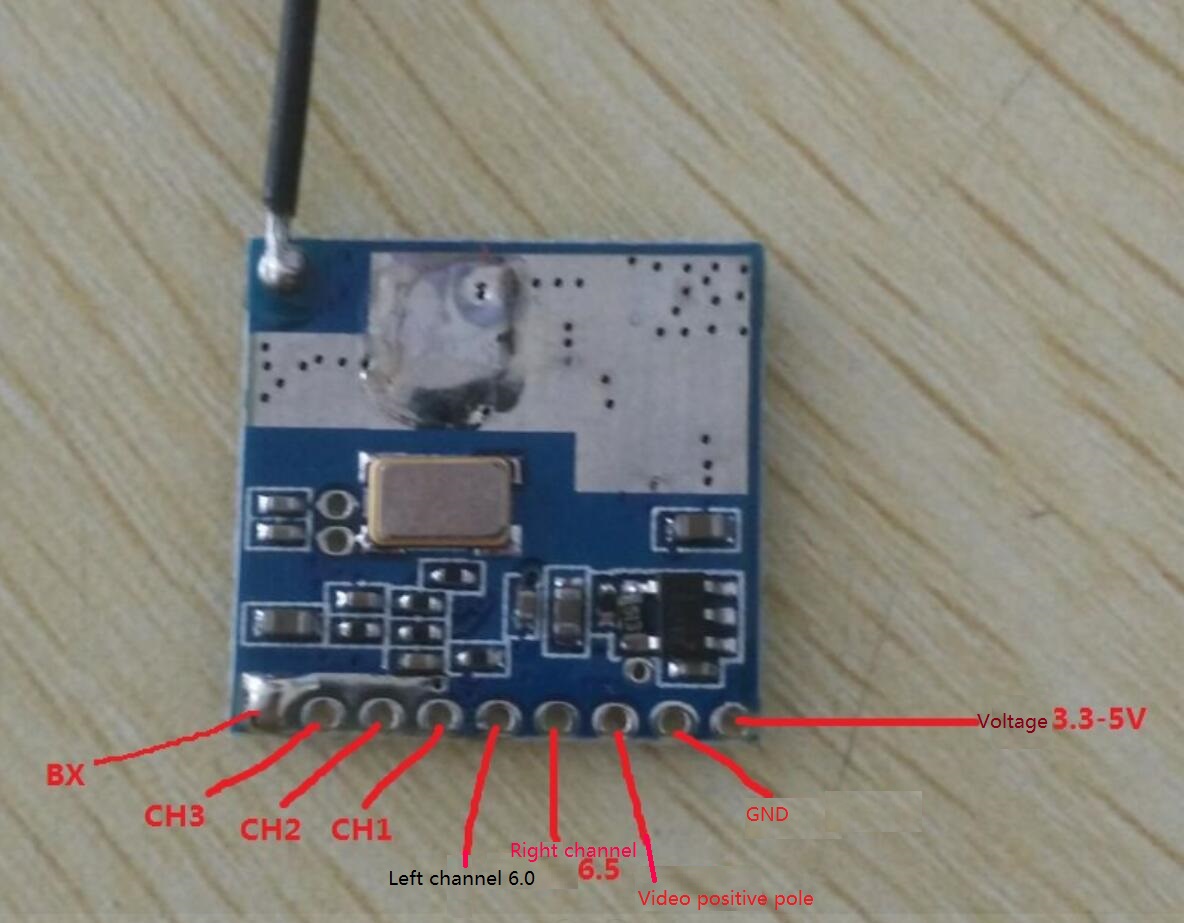

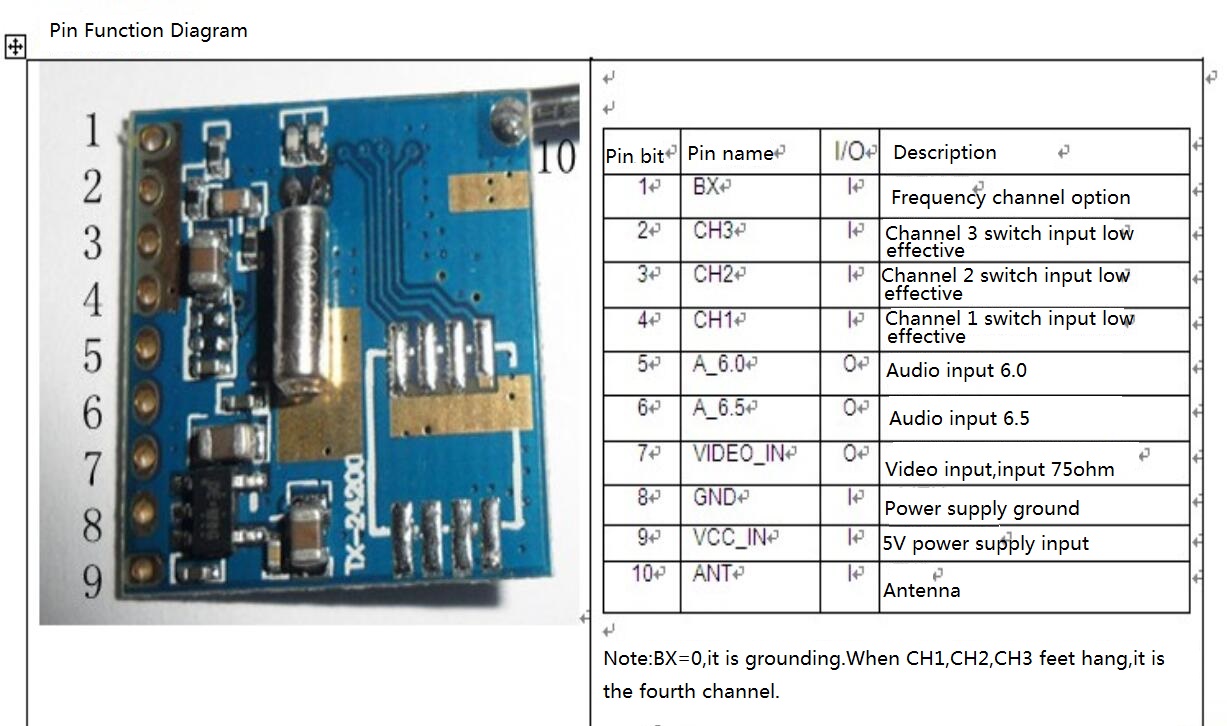

- TX24200 is working in 2414-2468MHz ISM frequency band of FM video transmitter module. Module using single-chip design, the chip integrates VCO , PLL , broadband FMvideo demodulator, FM audio demodulation, low power consumption make small module size and high sensitivity; take the patch or plug-in package, user-friendly installation requirements .
- Application of this module simply connect the power, single / dual audio cable, video cable, connect the antenna can transfer music, image signal.

TX Performance indicators
- Brand: rfav
- Model: TX24200
- Unit: piece
- Operating frequency: 2.4GHz
- 2 sets of frequencies 8 channels available, easy to avoid interference frequency:
     Ch1 2414/2490MHz Ch2 2432/2510MHz
     Ch32450/2390MHz Ch4 2468/2370MHz
- Modulation: FM FM Broadband
- Power: 200mW
- Operating voltage: 5V
- Current consumption: 150 mA or so
- Dimensions: 17.5mm * 18.5mm * 2.5mm
- NCommunication distance: 300-400 meters

RX Performance indicators:
- Brand: RFAV
- Model: RX6788
- Unit: piece
- Operating frequency: 2.4GHZ
- 2 sets of frequencies 8 channels available, easy to avoid interference frequency:
     Ch1 2414/2490MHz Ch2 2432/2510MHz
     Ch32450/2390MHz Ch4 2468/2370MHz
- Modulation: FM FM Broadband
- Working sensitivity: -93dBm
- Operating voltage: 5v
- Current consumption: 150mA or so
- Dimensions: 45 * 30 * 4.8mm
- Built-in PLL with high stability
- Low clutter leakage , through the U.S. FCC and European CE ( R & TTE ) Wireless certification
- Direct output audio and video signals
- Patch installation , user-friendly.

Pacakge List:
- 1 x  Wireless Transmitter Module
