Features:
- Human engineering mechanics design realizes easier operating.
- Made of the nylon fiber material, the FR-Handle Assembly shows superior performance in all kinds of environment.
- High compatibility. The FR-Handle Assembly can restructure conveniently according to different applications.
- Suitable for all kinds of electronic control system in the mainstream market at present.

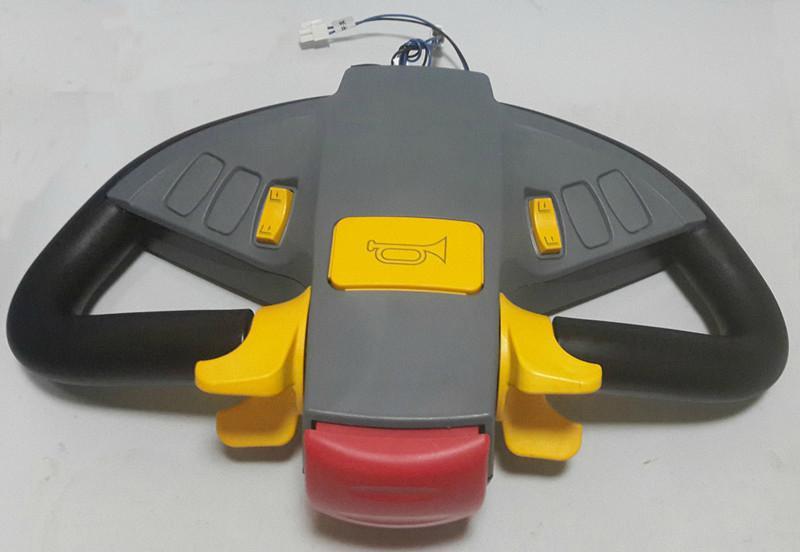

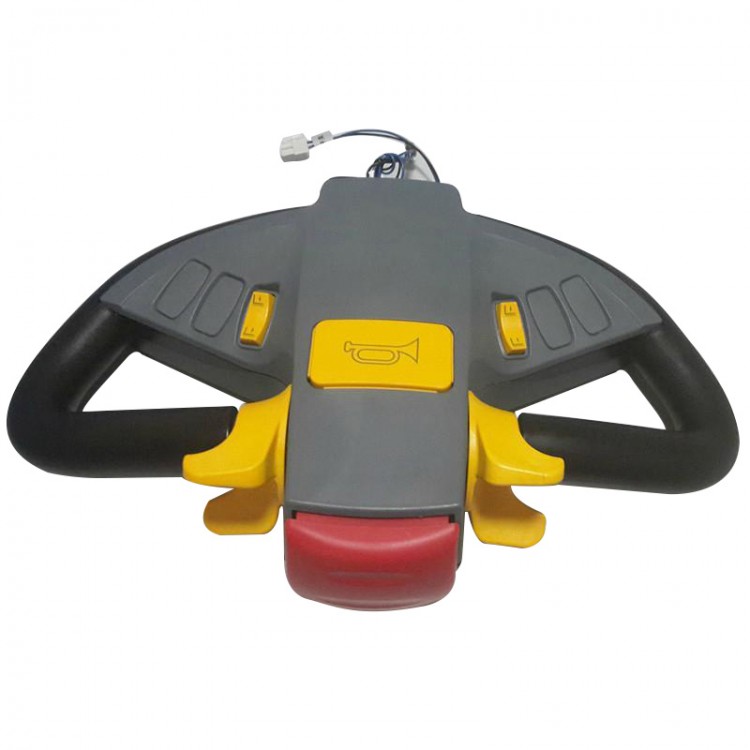

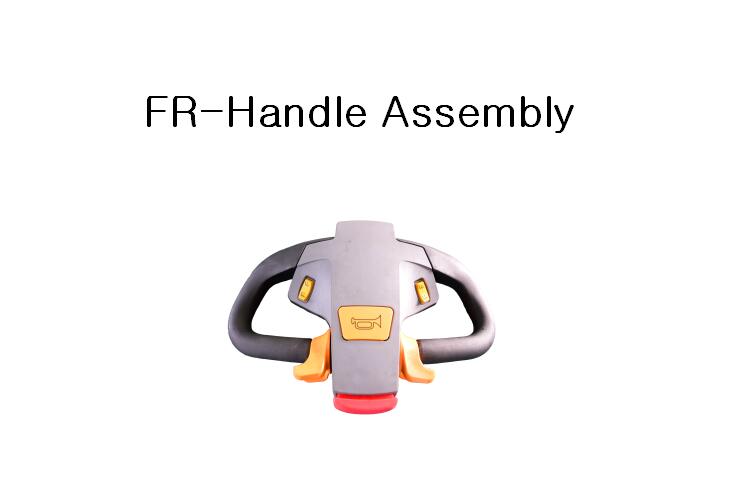

Descriptions:Applied on the control of the electric vehicles，the FR-Handle Assembly uses high strength solid materials. The highly integrated and compact design achieves convenient installation and flexible operating.

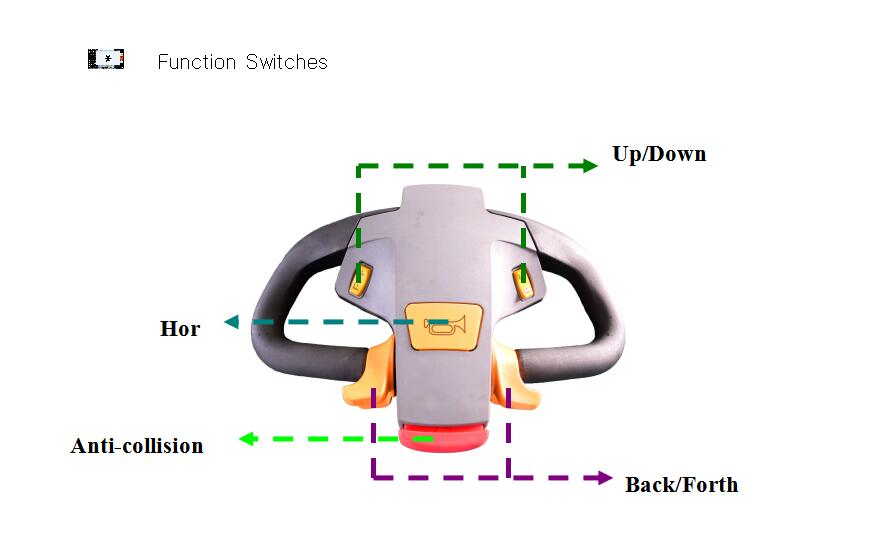

Applications:The FR-Handle Assembly integrates the functionality of switches for emergency reverse, MHD control, up/down, forward/backward, horn and slow crawl. It is applied widely on electric stackers, pallets, forklifts and other electric vehicles.
Notice:

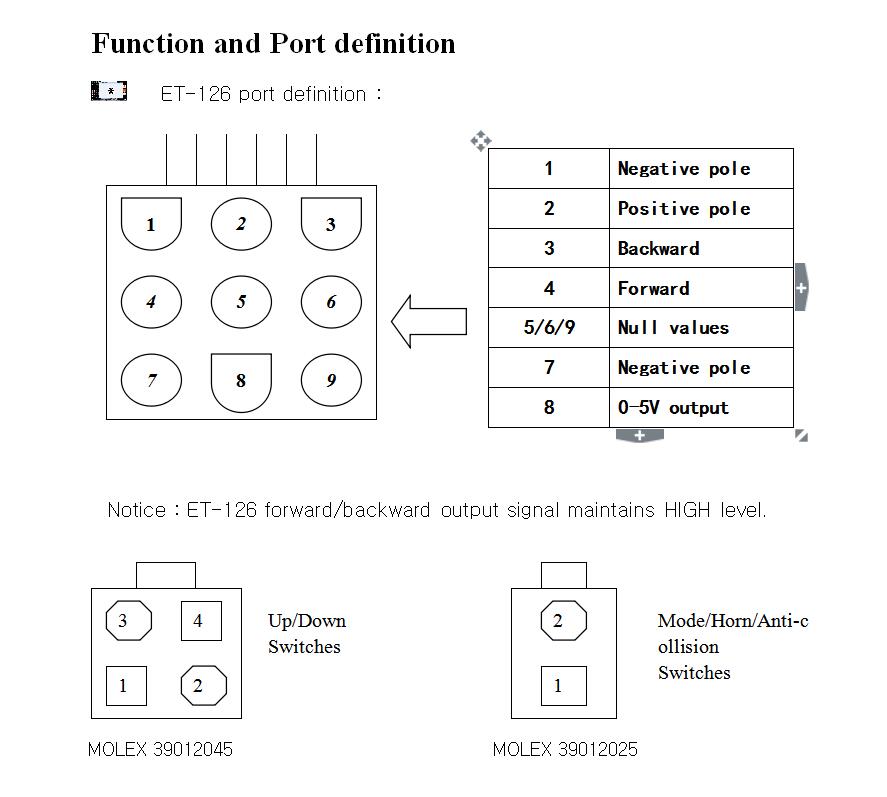

1, the mode switch sets on the underneath.(laser printed)
2, all micro switches use MOLEX Pin.
3, Up/Down switches adopt four-core MOLEX plugs.
4, all the other switches adopt two-core MOLEX plugs.
Technical indicators:
- Material:high-strength modified reinforced polyamide fibers
- Mass:1.6 Kg
- Size:310x420x110 mm
- Rotation angle:±30°
- Blind rotation angle:±3°
- Timing signal:Highly sensitive Hall-effect sensor (magnetic control)
- Timing voltage:0-5 V
- Output voltage:24 V
- Input current:＜50mA
- Horn:24 V/1A
- Up/Down signal:24 V/100mA
- Anti-collision signal:24V/ 10mA
- Output impedance: 10k ohm

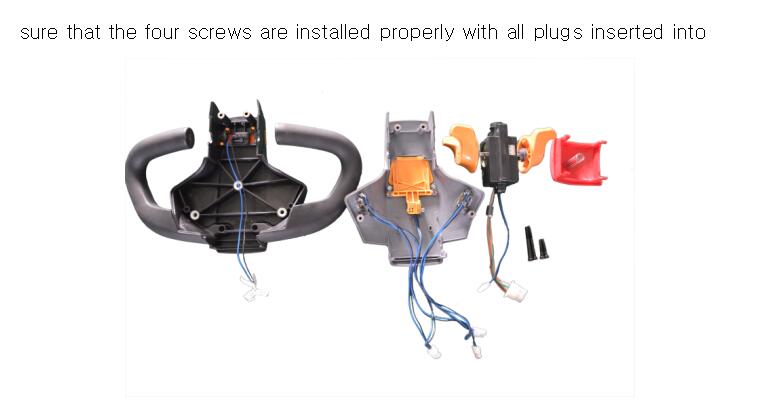

Installation instruments:In order to avoid mistakes，please pay attention to the direction before you install the backward, forward and Anti-collision switches and also, make sure that the four screws are installed properly with all plugs inserted into the corresponding socket connectors.
Quality assurance:The guarantee period is within 12 months from the delivery date
Package List:
- 1 x FR-Handle Assembly
