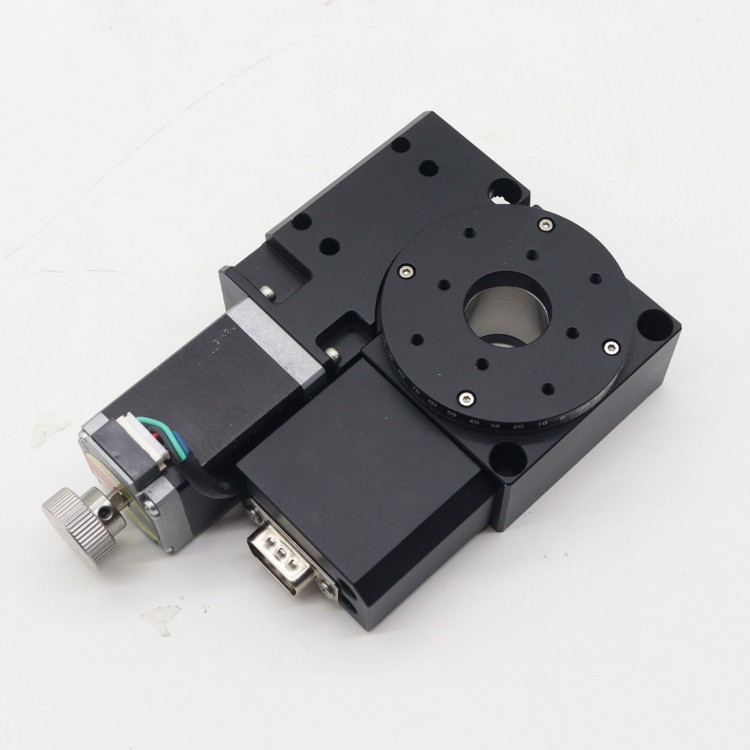

FR100-LDNN-ND 100mm/3.9" Electric Rotary Table Slide Table Automatic Stepping Motorized Rotary Stage
Package Included:
- 1 x Rotary Table
Note:

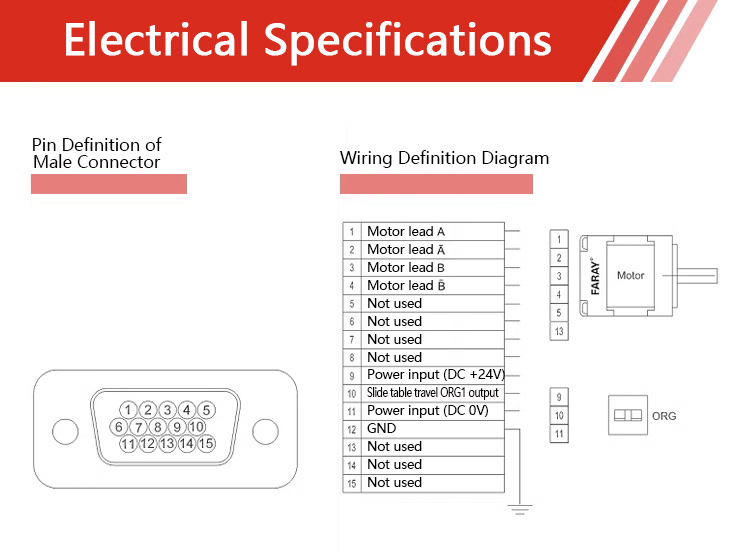

- It is designed with a 35cm/13.8" cable and a D-SUB 15-pin male connector, a stepper motor, and a photoelectric switch.

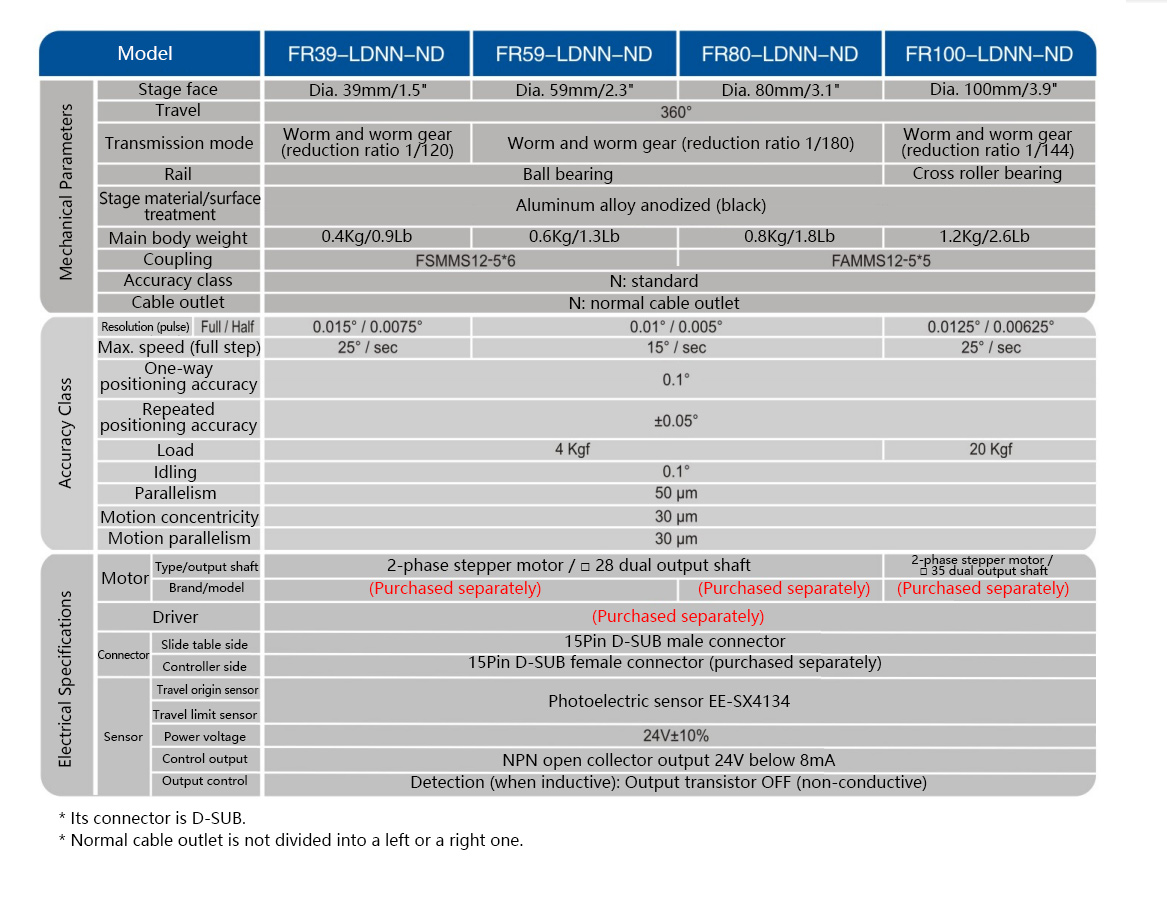

- The basic parameters are designed and produced according to the standard travel.
Troubleshooting Methods:
- If the motor or mechanism is hit by an external force, please check whether the smoothness of the screw will affect the work of the sliding table.
- Do not arbitrarily adjust the left and right limit position and origin position to avoid collision and affect its use.
- Please pay attention to the firmness of the cable and socket of the limit switch to prevent loosening.
- Do not loosen the coupling and transmission structure at will, so as not to affect the accuracy and its use.
- If there is any abnormal noise or abnormal vibration during operation, please power off and then check.
