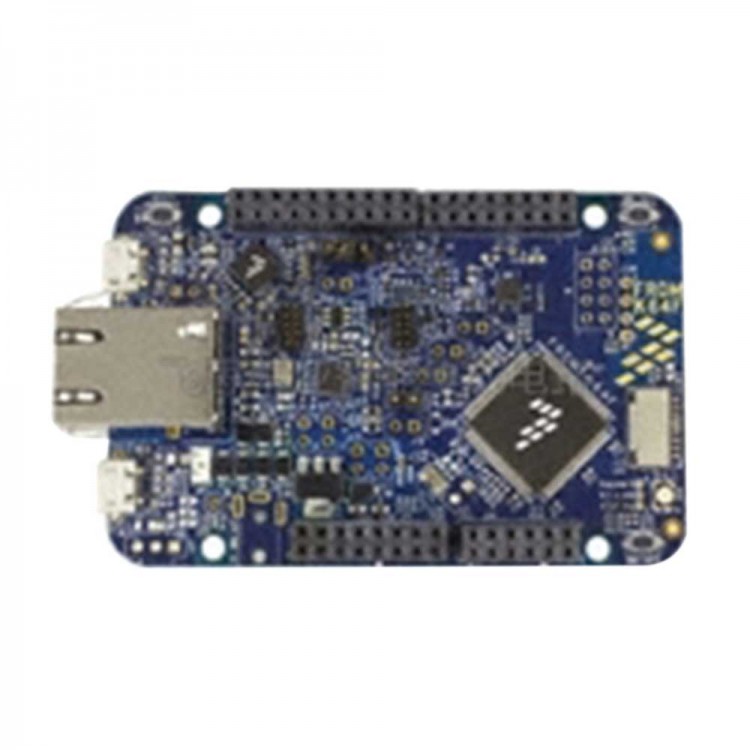

FRDM-K64F ARM Freedom Development Evaluation Board Dev Platform Kinetis K MCU 120MHz

FRDM-K64F ARM Freedom Development Evaluation Board Dev Platform Kinetis K MCU 120MHz

Description:
The FRDM-K64F has function with a lot of rich peripherals, the rapid prototyping, including a digital 3-axis accelerometer and magnetometer, to create a complete eCompass, three color LED indicator and 2 user keys for direct interaction and feedback, the expansion of the use of the built-in Ethernet port and microSD memory card slot, and connectivity options, and header with Bluetooth and 2.4GHz radio with additional modules. The FRDM-K64F platform has OpenSDAv2, running an open source bootloader to fly think Carle open source hardware embedded serial port and debug adapter. The circuit provides a variety of options for serial communication, flash programming and running control debugging.

Features:
- MK64FN1M0VLL12 microcontroller (120MHz, 1MBFlash Memory, 256KB RAM, low power consumption, no crystal USB and 100 thin quad flat package (LQFP))
- Dual roles USB interface and miniB USB connector
- RGB LED
- FXOS8700CQ accelerometer and magnetometer
- Two user keys
- Flexible power options - OpenSDAv2 USB interface, K64 USB Kinetis and external source
- Arduino R3 compatible with I/O connector which has easy access to micro controller input / output
- Programmable OpenSDAv2 debug circuit, support CMSIS-DAP interface software, provide: Large capacity storage device (MSD) flash programming interface
- When USB without driver, CMSIS-DAP debug interface HID connection provides debugging and compatible with IDE tools
- Virtual serial port interface
- Open source CMSIS-DAP software project
- Ethernet
- SDHC
- Additional RF module: nRF24L01+ Nordic 2.4GHz wireless
- Additional Bluetooth module: BT V1.05 BT JY-MCU

Kit contains:
- FRDM-K64F hardware
- Quick reference card
- Additional hardware requirements: A USB to MicroB line

Package included:
- 1 x FRDM-K64F ARM Freedom Development Evaluation Board
