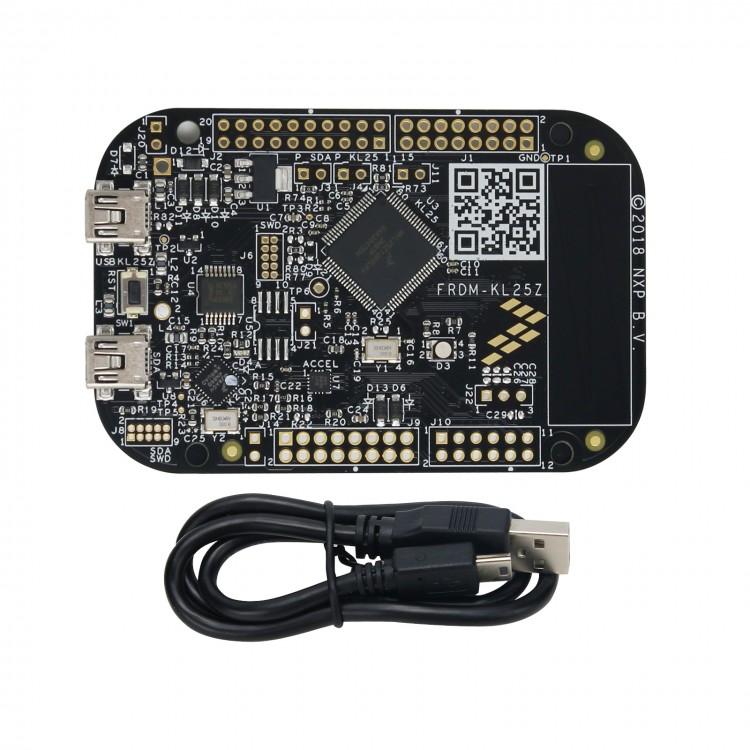

FRDM-KL25Z Original Freedom Development Board Platform for ARM Cortex-M0+ Kinetis KL1x KL2x Series
Description:
The Freedom KL25Z is an ultra-low-cost development platform for Kinetis L Series KL1x (KL14/15) and KL2x (KL24/25) MCUs built on processor for Arm Cortex-M0+.
Features include easy access to MCU I/O, low-power operation, a standards-based form factor with expansion board options and a built-in debug interface for flash programming and run-control.
The FRDM-KL25Z is supported by a range of development software for NXP and third-party development software.
You can now use mbed.org at no charge, with full access to the online SDK, tools, reusable code—which means no downloads, installations or licenses—and an active community of developers.
Component for Processor Expert for low voltage H-Bridge products enables rapid embedded application development.
The FRDM-KL25Z is supported by OS (for Zephyr) for developing the Internet of Things with a free, open-source embedded operating system.
Supported Devices:
Processors and Microcontrollers
For KL Series Cortex-M0+:
- KL1x: For Kinetis KL1x-48 MHz, Mainstream Small Ultra-Low Power Microcontrollers (MCUs) based on Core for Arm Cortex-M0+
- KL2x: For Kinetis KL2x-72/96 MHz, USB Ultra-Low-Power Microcontrollers (MCUs) based on Core for Arm Cortex-M0+
Features:
- MKL25Z128VLK4 MCU: 48 MHz; 128 KB flash; 16 KB SRAM; 80LQFP
- Sensor: Capacitive touch "slider"; MMA8451Q accelerometer
- Debug: Sophisticated OpenSDA debug interface; Open-source data logging application provides an example for customer, partner and enthusiast development on the OpenSDA circuit; P&E Multilink interface provides run-control debugging and compatibility with IDE tools
- Connectivity: Connectivity Easy access to MCU I/O
- Tools and OS Support: for Arm Mbed enabled; Supported by OS for Zephyr; Mass storage device flash programming interface (default) – no tool installation required to evaluate demo apps
- User Components: User Components Tri-color LED
Package Included:
- 1 x Development Board
- 1 x Quick Reference Card
- 1 x Cable
