FREESAT V7 Max DVB-S2 USB Wifi High Definition Digital Satellite Receiver

FREESAT V7 Max DVB-S2 USB Wifi High Definition Digital Satellite Receiver

Brief Function:
- 1080P Full  HD DVB-S2
- Support PowerVu,DRE & Biss key
- Support USB PVR Ready and USB wifi to Network Sharing
- Support Full speed USB 3G dongle
- Support YouTube, Youporn via usb Wifi dongle
- Support Cccam, Newcam via usb Wifi dongle
- Technical support website:www.freesat.cn

Note: We reserve the right to change the design and OEM/ODM supported

Product Parameter:
- Product Size (MM):200*127*40 (L*W*H)
- Packaging:12 pcs/ctn
- Gift Box size(mm):260*195*55MM
- Carton size(mm):400*360*275MM

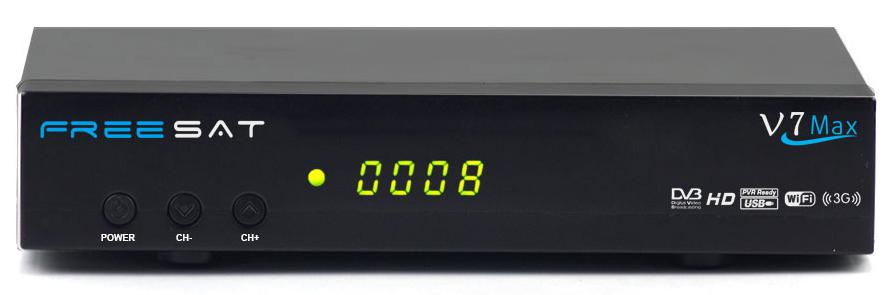

- Panel display:Yes
- Display Color:Green
- Button:CH+/CH-/POWER
- USB:2 x USB 2.0 High Speed Host
- IR:Exit IR for 38KHz

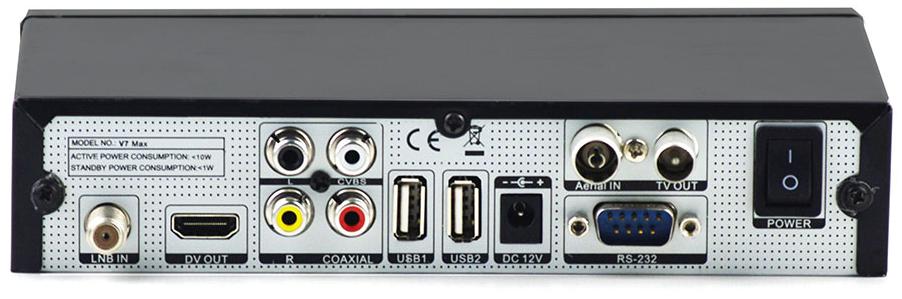

- Output Interface:LNB IN*1, DV OUT,CVBS+AUDIO L/R COAXIAL,2 x USB, RS232,Power supply
- HDMI:HDMI(up to 1080P) output

Main Features:
- Standard:SD/HD DVB-S/S2 Complian
- Encrypt:yes
- RF Modulator:yes
- GPRS Module:Option
- CA Module:Option
- Power Supply:Input 110V ～240V, 50/60Hz
- Video Decode:AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1;AVS profile@L6.1/4.0/2.0
- PAL/NTSC:Automatic PAL/NTSC conversion
- Channels Number:6000 channels TV and Radio programmable
- Favorites:8 different favorite groups selection
- OSD Language:English German French Portuguese Spanish Italian Russian Turkish Polish - Arabic Farsi
- EPG:Fully support to 7 days Electronic Program Guide(EPG)
- Picture:JPEG,BMP,PNG,GIF Supported
- OSD Color:16-bit OSD with anti-flickering
- Channel Search:Channel search in automatic, manual and network search
- Channel Edit:Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
- Parental Ctrl:Parental control for channels
- Easy Menu:Plug and Play installation, with an easy to use Menu System
- SoftUpgrade:Software upgrade through USB
- Time Set    Time set by GMT offset automatic and manual,Summer Time support
- Timer:5 event timers,off/Once/Daily/Weekly Mode
- Subtitle:Subtitle support
- Teletext:VBI insertion for Teletext,CC and WSS
- Save Channel:Automatic save for last channel

Electric Performance:
- 1.Memory Size:
    Flash Memory:32MB Serial Flash
    DDR2 Memory:512M
- 2.DVB-S2 Tuner
    Input Frequency Range:950MHZ-2150MHZ
    Input Impedance:75Ω
    RF input Signal LEVEL:-80/-20dBM
    Active Ant Power:13/18V DC @ 450mA MAX,Overload Protection
- 3.DVB-S2 Channel Decode
    Demod standard:DVB-S2 Standard
    MPEG Profile Level:AC-3,MPEG-2 MP@HL;H.264 BP MP&HP@L4.1
    Demodulation:QPSK,8PSK,16APSK,32APSK
- 4.USB Decode
    PVR:Support
    Media Supporting:USB media player to playback the media in USB flash disk or USB HDD or USB card reader with memory card
    File system:FAT32, NTFS (only support first partition)
    USB:PVR with USB HDD, Time shifting with USB HDD
    USB Wifi:Support (RT5370 module)
- 5.Multimedia support format
    movie:mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp
    music:mp3
    photo:JPG, BMP, PNG, GIF
- 6.Video Decode
    Video Decode:High Definition MPEG4 AVC/H.264 HP@L4.1,MPEG-2 MP@HL/ML
    Aspect Ratio:Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box
- 7.Audio Decode
    Audio Decode:MPEG1 layer I, MPEG1 layer II, MPEG1 layer III, MPEG2 AAC, MPEG4 HE-AAC
    Sound Mode:LEFT/RIGHT/STEREO/MONO
    Sampling Frequency    32KHz, 44.1KHz, 48KHz
- 8.Environment
    Input Voltage:Input 110V ～240V, 50/60Hz DC12V/1.5A
    Consumption:10W Max
    Temperature:0℃ to +50℃
    Humidity:<95％

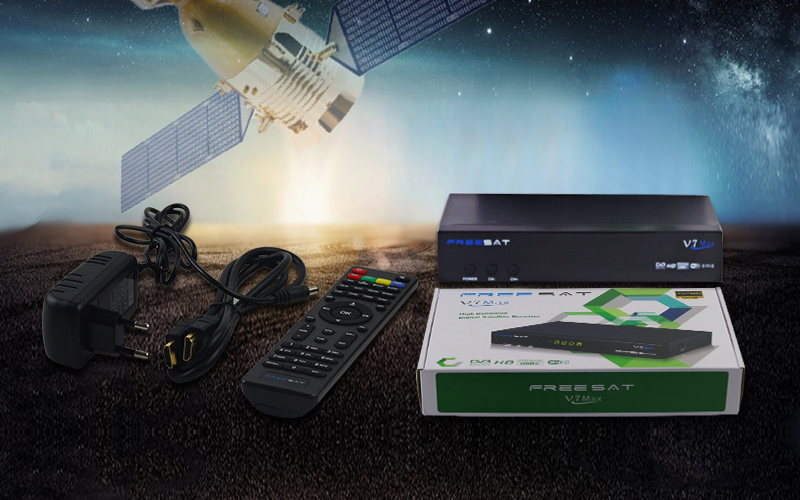

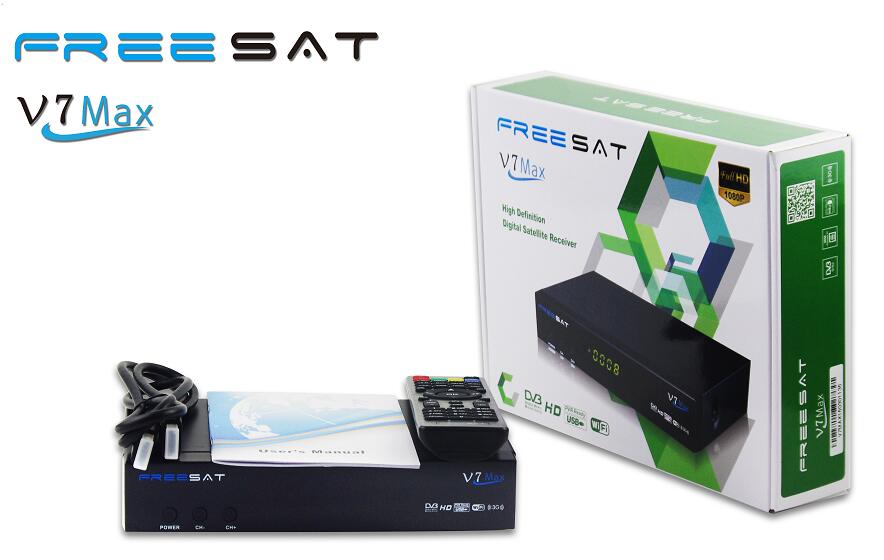

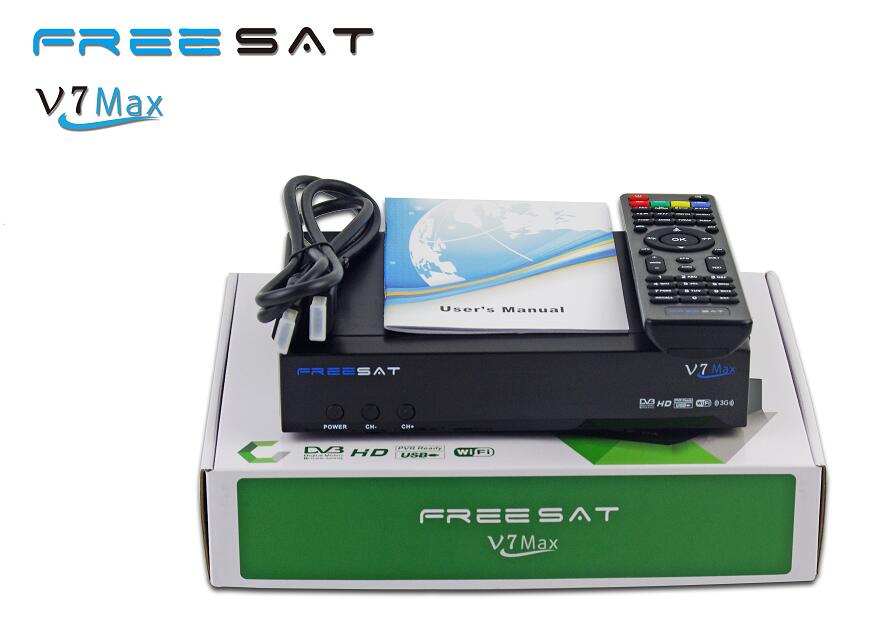

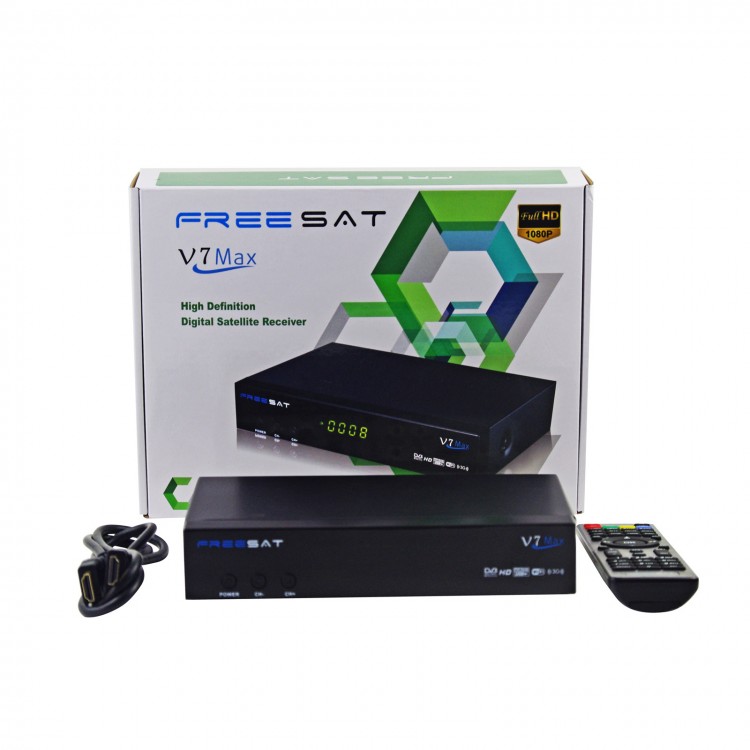

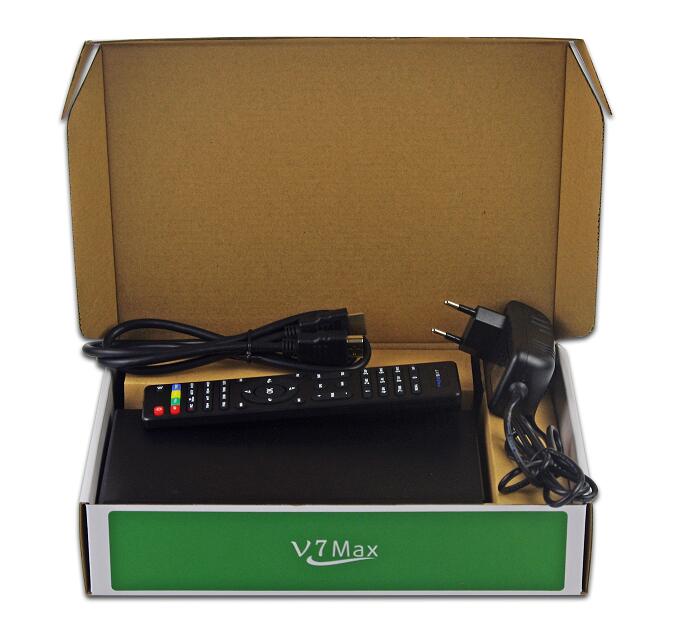

Package List:
- 1  x  FREESAT V7 Max(DVB-S2) Satellite Receiver
- 1  x  USB wire
- 1  x  Power charger
- 1  x  Remote Control
- 1  x  User Manual
