Frequency Counter Prescaler Meter 4.5G Microwave Frequency Divider 1000 DC12V 0.15A
Specifications:
- 4.5G microwave divider-1000
- 4.5G frequency counter prescaler-1000
- TYPE:4.5G-DIV1000
- Function:4.5G divider1000
- Input frequency: 0.1G-4.5G
- Input power:100M -26DBM；500M -37DBM
1G -42DBM; 2G -38DBM
3G -35DBM; 4G -23DBM
4.5G -13DBM
- Not damage max input power:20DBM
- Output frequenc: 100K-4.5MHz
- Output wave: square wave,3.3Vpp,duty ratio 50%
- Power: DC 12V 0.15A
- Size:L*W*H=118*25*29mm
- Total weight:400g
Application:
Using the low frequency counter to measure the high frequency or microwave signal, the frequency meter reading by 1000 is actual value,for example, frequency counter measured 2.123M, the actual input for the 2.123G, high sensitivity.

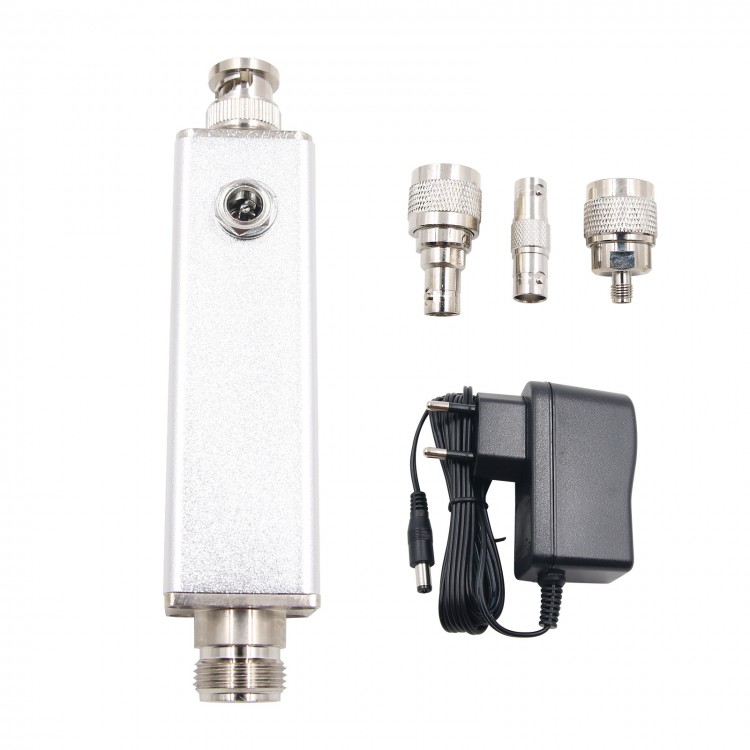

Package list:
- 1 x Frequency Counter Prescaler
- 1 x N-MALE to SMA-FEMALE
- 1 x N-MALE to BNC-FEMALE
- 1 x BNC-FEMALE to BNC-FEMALE
- 1 x AC110-230V to DC12V ADAPTER
