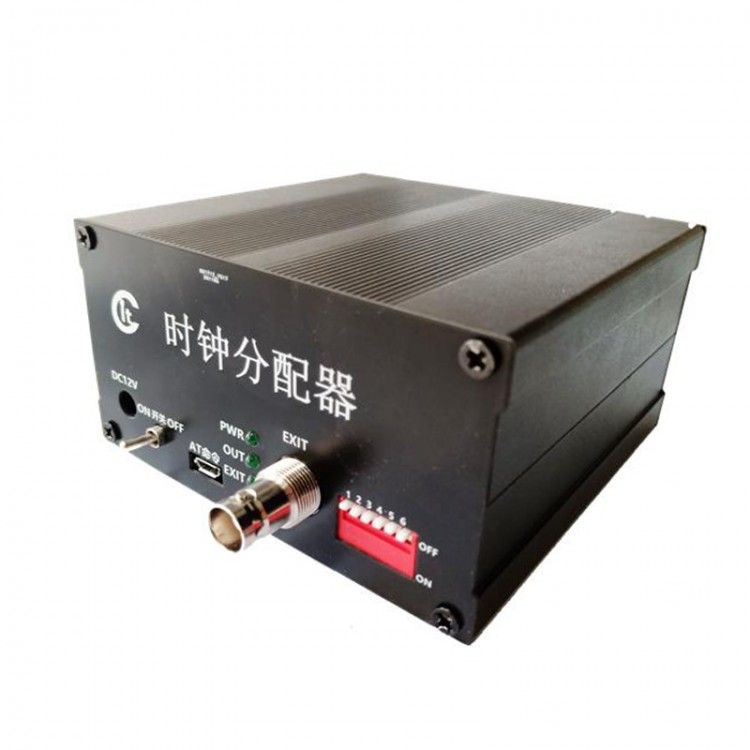

Frequency Divider Clock Divider 8-Channel Output Providing Accurate Clock Signals For Devices

Frequency Divider Clock Divider 8-Channel Output Providing Accurate Clock Signals For Devices

Features:
- 8-channel output free clock configuration, while providing accurate clock signals for multiple devices
- Output frequency is accurate and stable, and accuracy is ≤1.0ppm
- Automatic recognition of external reference input

Device Parameters:
- Input power supply: DC (5V～9V)/1A
- Output waveform: square wave
- Output impedance: 50Ω
- Output frequency: 4KHz～100MHz
- Output level: 3.3V CMOS level
- Output accuracy: <1.0 ppm
- Output channel: 8-channel BNC interface
- Equipment size: 106mmx102mmx55mm

Indicator Introduction:
PWR: Power supply indicator (it is always on when the device turns on)
OUT: Output indicator (it is always on when there is signal output)
EXIT: External input indicator (it is always on when there is external signal input)

Output Signal:
- Output frequency: Channel 1, 2, 3, 4, 7, 8: 4KHz～100MHz. Channel 5, 6, frequency must be equal: 18.5KHz～150MHz
- Output level: 3.3V CMOS level
- Duty cycle: 50%
- Frequency accuracy: <1.0ppm
- Others: After the frequency configuration is greater than 100MHz, (channels 1, 2, 3, 4, 7, and 8) can only output a square wave greater than 100MHz, up to 180MHz, the subsequent waveform processing users can make related applications according to their own needs.

Typical Applications:
- In the field of digital audio, various precision frequencies such as 44.1KHz, 88.2KHz, etc.
- Provide reference clocks for multiple test boards at different frequencies
- Simultaneously provide clock reference source for multiple devices

Package Included:
- 1 x Set of Clock Divider
