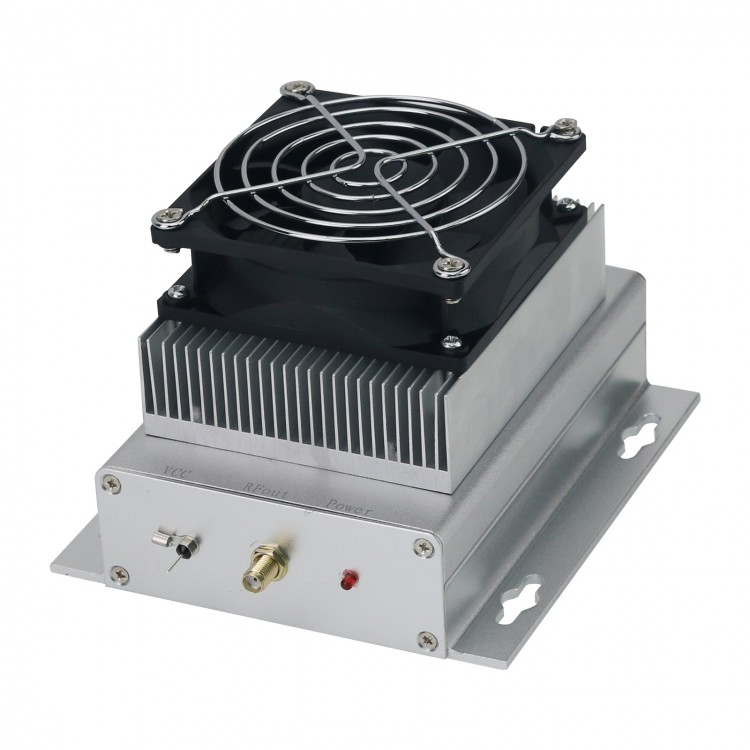

Frequency Modulation 70-110MHz 100W Power Amplifier 20-30V 50ohms RF Accessory with SMA Female Connector
Specification:
- Working frequency: 70 - 110MHz (FM signal)
- Power supply voltage: 20 - 30V (24V)
- Power supply current: 5.0A (typ.)
- Power gain: 16dB (typ.)
- Input power: 3 - 5W
- Output power:
50dBm (100W typ.)
47dBm-50.0W at 20V Power supply, input 4W.
48dBm-65.0W at 22V Power supply, input 4W.
49dBm-80.0W at 24V Power supply, input 4W.
50dBm-100.W at 28V Power supply, input 4W.
51dBm-125.W at 31V Power supply, input 4W.
- System impedance: 50ohms
- Connector type: SMA-K
- Product net weight: 650g
- Product size: 130 x 110 x 45mm
Note:
- Prohibit power on operation when there is no-load or a serious mismatch of load.
- Before use, all instruments and equipment should be grounded together (without any potential difference), and then connected with RF cables. They must be connected to the load and must not be used without load.
- Be sure to use a "legitimate" antenna, especially when using the antenna as a load, and ensure that the impedance of the antenna matches within the operating frequency (generally requiring a voltage standing wave ratio of less than 2.0). It is strictly prohibited to use "illegitimate" antennas, such as rod antennas, copper wire antennas, and cheap antennas, which have no definite impedance.
- Try to use linear power supplies as much as possible, especially when using low-noise amplifiers, be sure to use linear power supplies or batteries. Switching power supplies themselves have a lot of noise, which can enter the amplification circuit. Do not use switching power supplies.
