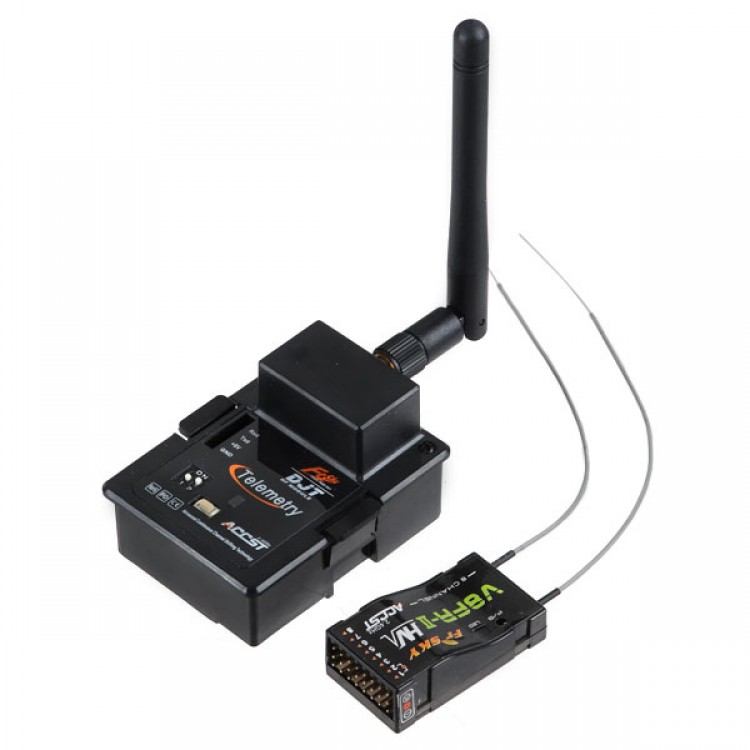

FrSky 2.4G Two Way JR DJT+ V8FR-II HV Upgrade Combo Set

FrSky 2.4G Two Way JR DJT+ V8FR-II HV Upgrade Combo Set
Descriptions:
- this transmitter and receiver combo is a set of two way module,you can switch it into single way or two-way mode as needed
Features:
- Adopts ACCST system
- Universal transmitter and receiver suitable for all 4-8 pin remote controller
- Quick and accurate
- Precision data communication
- Low power consumption
- Support multicontrol of controller
- Receiver  range:1.2km

DJT is compatible with the following transmitters
JR:347/388/783/U8/PCM10/PCM10S/PCM10SX/ PCM10IIS/8103/J9303/MX-22/MX-24S/PX/9XII

Receiver specfications:
- Voltage:4.8V － 6V
- Operating voltage:30mA
- Receive range:1.2km
- Resolution:10bit
- Latency:22ms
- Channel no:8 channel
- Size:60 × 37 × 21 mm

Transmitter specfications:
- Voltage:6.0V － 13.0V
- Working current:50mA
- Output power:60mw
- Resolution:10 bit
- Size:63.9X48.5X36.5mm(V8JT);

How to install system:
- Open Futaba orJR remote,switch PPM mode,and turn off remote controller
- Open Remote controller while press on the F/S Range button of the transmitter module and release after a few seconds
- A red led indicator of the transmitter will flash and shows the remote controller and transmitter is ready to code.
- Connect battery to receiver while press on F/S button of the receiver.
-  A red led indicator of the transmitter will flash and shows the procedure is success.
- Turn off receiver and remote controller

Package including:
- 1 x DJT
- 1 x V8FR 2.4G 8 Channel Receiver
