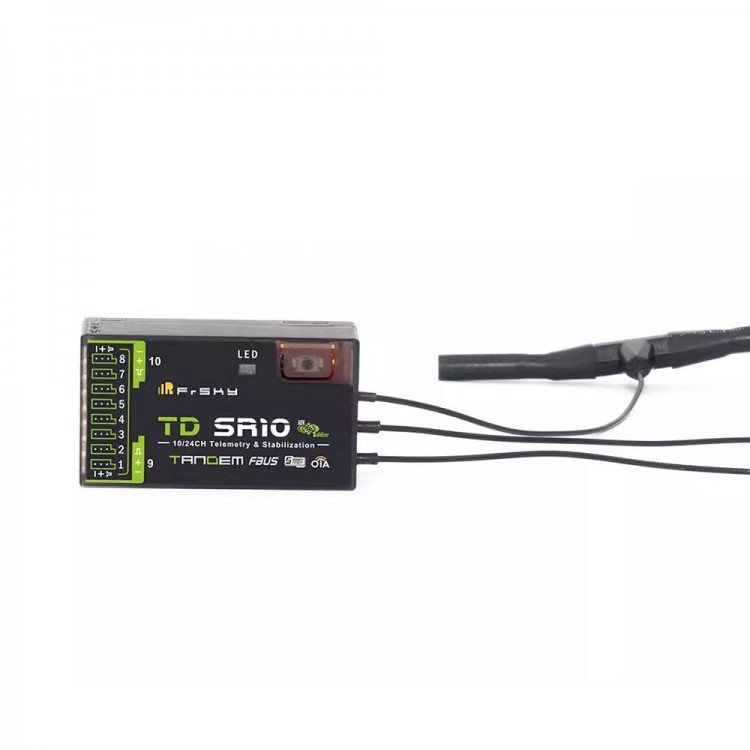

FrSky TD SR10 Dual Band Self Stabilizing FPV Racing Drone Receiver OTA 10-Channel 2.4GHz/900MHz RX

FrSky TD SR10 Dual Band Self Stabilizing FPV Racing Drone Receiver OTA 10-Channel 2.4GHz/900MHz RX

Description:
- The Tandem series receiver is different from previous 2.4G or 900M receivers, as it can operate simultaneously on both 900M and 2.4G frequencies. This means that it not only provides low latency signal control, but also has a long control range, higher reliability, and anti-interference performance.
- For Tandem series receiver adopts a three antenna design, which can provide multi-directional coverage for remote signals as much as possible. In addition, the built-in black box module of the Tandem series receiver can record abnormal states during flight, such as power and signal data.
- The 10 channel ports of TD SR10 can be customized as PWM, SBUS, FBUS, or S Port. Through the FBUS protocol, Tandem series receivers can establish the possibility of seamless pairing with various telemetry devices (such as Neuron series ESC, Adv series sensors, etc.), while further simplifying cumbersome connection lines.

ADV Self Stabilization Function:
- The TD SR10 provides ADV self stabilization function, which is an upgrade to the classic gyroscope self stabilization mode. The ADV self stabilization mode also has an advanced mode that provides more programmable self stabilization channels and flexibility.
- In the classic self stabilization mode, the number of self stabilization channels is increased by an additional 5 channels on the basis of the traditional self stabilization mode, and supports pin mapping settings for each channel in various flight modes such as self stabilization, self leveling, crane, and side flight.
- In advanced self stabilization mode, all output pins can be configured for self stabilization and other advanced features such as Stab file sharing, programmable parameters, and developer access.
- The functional module that supports ADV self stabilization features also integrates high-precision sensors for monitoring telemetry data such as altitude and climb speed. Compared to conventional S-series self stabilization receivers, it can be seen as a beneficial supplement in terms of functionality.

Highlights:
- Over-The-Air FW updates: supports OTA FW updates, keeping your receiver up-to-date with the latest features.
- Triple antenna design: featuring 2 external 2.4G and 1 external 900M antennas for multi-directional coverage.
- Black box function: built-in voltage sensor and Black Box function for real-time telemetry and data logging.
- For Tandem interactive/guardian connect transmitter/dual-band Tandem mode: simultaneous 2.4GHz & 900MHz operation for extended range and reliability.
- Long control range: capable of reaching up to 100KM, ensuring long-distance control with precision.

Features:
- Simultaneous working dual-band TD mode
- Triple antenna design for multi-directional coverage
- Black box function
- Built-in voltage sensor
- Race mode with telemetry
- Long control range (up to 50KM - 100KM)
- Over-The-Air (OTA) FW update
- 10 configurable channel ports
  CP1: PWM / SBUS Out / FBUS / S.Port / SBUS In
  CP2-10: PWM / SBUS Out / FBUS / S.Port

Specification:
- Frequency: 2.4GHz & 900MHz
- Dimension: 46.5 x 26.3 x 14.7mm (L x W x H)
- Weight: 16.6g
- Operating voltage: 3.5-10VDC
- Operating current: ≤180mA at 5V
- Compatibility: for Tandem series transmitter & TD protocol capable RF module
- Triple 2.4G/900M antenna: 2 x external 2.4G antenna (IPEX1); 1 x external 900M antenna (IPEX1)

Package Included:
- 1 x Receiver
- 2 x 2.4G Antenna
- 1 x 900M Antenna
