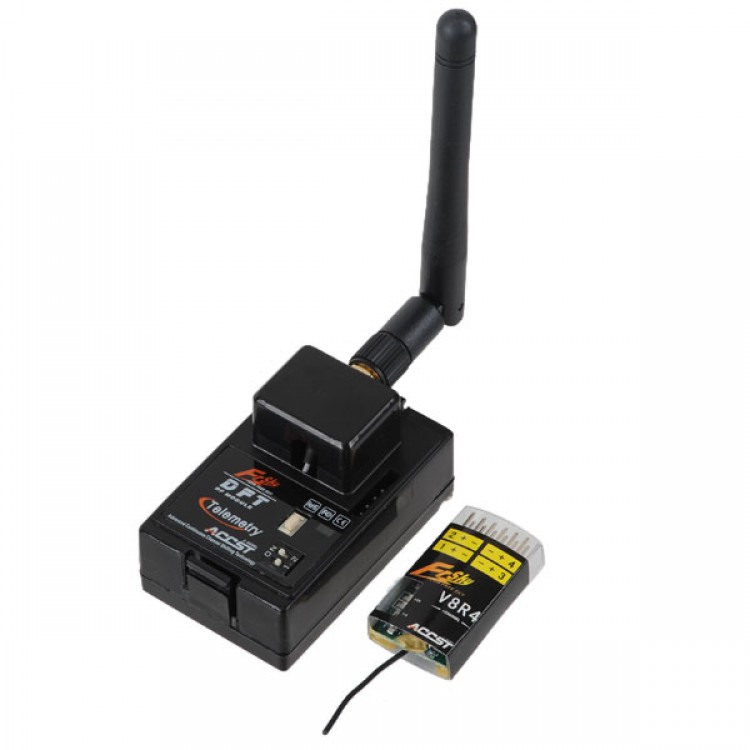

Frysky DF Combo 2.4G Radio System+V8R4 Combo
1. Specifications
- Operating Voltage Range: 6.0V-13.0V
- Operating Current: 50mA
- Output Power: 60mW
- Resolution: 11bit (3072)
2. DFT is compatible with below transmitters
- Futaba: 3PM, 3PK, 7U, 8U, 8J, 9C, 9Z, 10C, FN series, T10C, FC-18, FC-28.
- Hitec: Optic 6, Eclipse 7, Prism 7.
- WFLY: WFT09, WFT08.
3. DFT is compatible with all FrSky V8 and TW receivers below (TF receivers excluded).
| Receiver series | Channels | Weight (g) | Range | Analog telemetry ports | Digital data-stream port | Extra functions | ||
| V8 | TW | |||||||
| V8R4 | √ | 4 | 2.6 | >500m | ||||
| V8R7-HV | √ | 7 | 7.5 | full range | ||||
| V8R7SP | √ | 9 | full range | CPPM | ||||
| V8FR-HV | √ | 8 | 14 | full range | ||||
| VD5M | √ | √ | 5 | 1.7 | >300m | |||
| D4FR | √ | 4 | 4 | full range | CPPM, RSSI | |||
| D6FR | √ | 6 | 7.1 | full range | √ (with in-built voltage sensor) | normal & fast speed modes | ||
| D8R-II | √ | 8 | 12.2 | full range | √ | √ | normal & fast speed modes | |
| D8RSP | √ | 12.2 | full range | √ | √ | CPPM | ||
User manual Download
Manual_two way telemetry series
Protocol_two way telemetry series
Package included:2.4G Radio system,V8R4,Antenna,User manual
